技术属性

一般信息

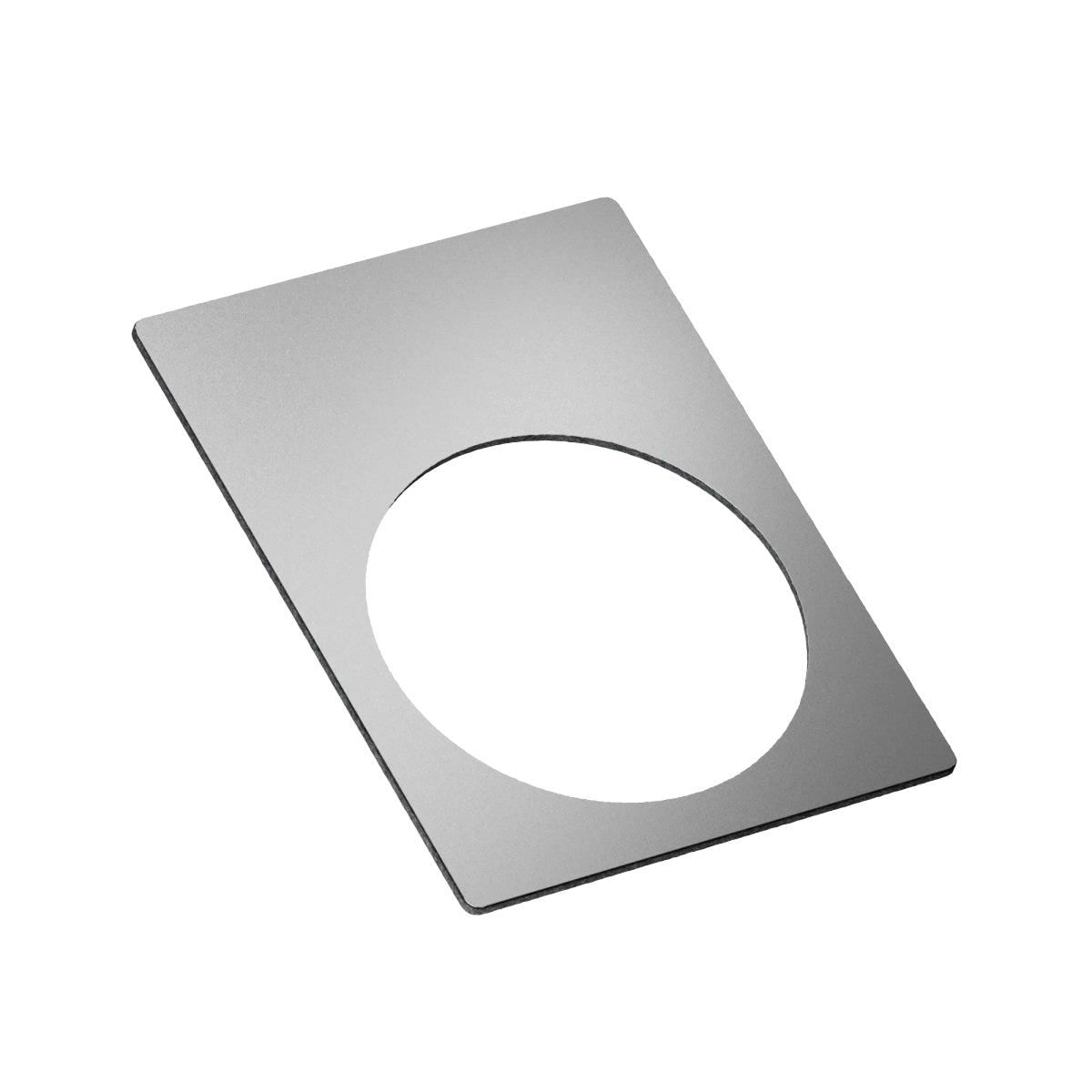

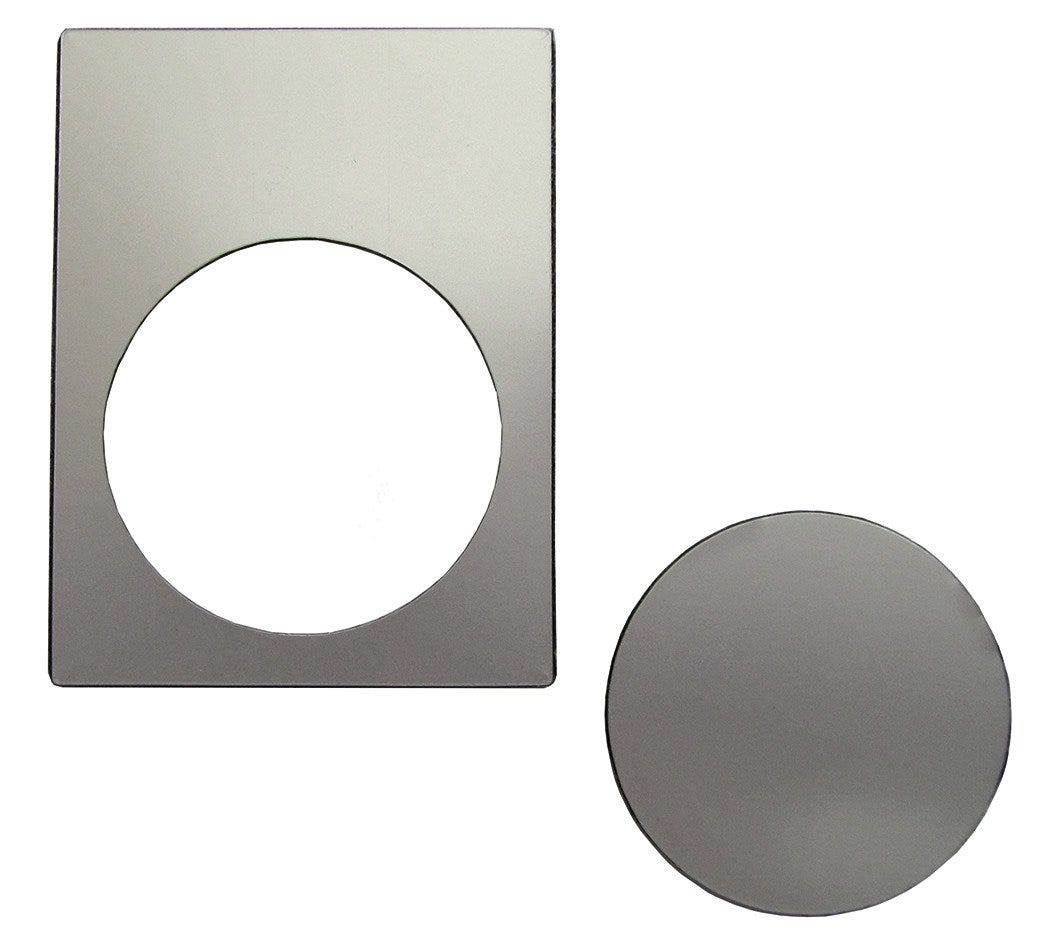

Product type Label for thermal transfer marking
Printing procedure Thermal transfer marking
Printable with Thermal transfer printer, EOS 5, SQUIX
Packaging type Pulley
Brand FLEXIMARK®
Marking for Components
Installation type adhere
Number of labels per roll 1000
Delivery Unit 1.000
Weight 0.9 kg
电气特性
产品设计
Label design Round cut
Glue Acrylic-based
Label material PE foam
Outer diameter 24
Overall width 40
Colour silver
Total height 30
Label type Adhesive label
产品特点
Flame-retardant

Oil-resistant

Waterproof

Chemical resistant

Installation temperature min. 10
UV-resistant

Self adhesive

Halogenfree

认证和标准
Ecolab certified

UL listed

CE marked

UL recognized

文档
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from FLEXIMARK® TA foam Component marking - round
Article number Imp total width Total width def Imp total height Total height def Colour Imp outer diam Outer diameter Number of pages per PU Number of labels per side
83260189 silver 24
83260190 white 24
