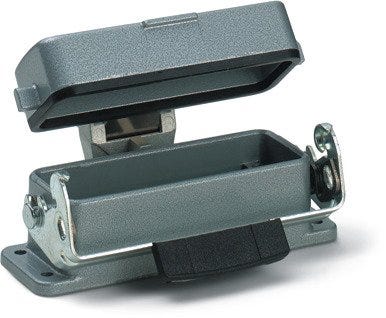

H-A 10 AD 面板安装底座
Panel-mount base; Design size: 10A; Single Lever; Number of cable entries: 1; AluminiumIP protection rating mounted: IP 65
H-A 10 AD 面板安装底座
SGD 32.84
/
H-A 10 AD 面板安装底座
SGD 32.84
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
halogen-free
corrosion resistant
uv-resistant.
Certificate
CE marked
VDE certified
VDE Reg.-Nr. B437
UR recognised US, cUR recognised US
福利
Small and space-saving for narrow available space
申请书
Machine and equipment manufacturing, Control engineering, Electronic laboratory
技术属性
一般信息
| Product type | Panel-mount base |
| Brand | EPIC® |
| Design size | 10A |
| Delivery Unit | 1.000 |
| Weight | 0.177 kg |
电气特性
产品设计
| Number of cable entries | 1 |
| Design connector housing | Straight |
| EMC screening |
|
| With cable gland |
|
| With hinged lid |
|
| Housing base material | Aluminium |
| With thread |
|
| Housing base material, short form | Al |
| With collar |
|
| Locking type | Single lever |
| With lever |
|
| Screen contact |
|
| Sealing material, short form | NBR |
| Number of cable entries at the top | 1 |
| Sealing material | Acrylonitrile butadiene rubber |
产品特点
| Corrosion-resistant |
|
| Acid-resistant |
|
| Impact-resistant |
|
| Vibration protection |
|
| IP protection class plugged in | IP 65 |
| Chemical resistant |
|
| Corrosion-resistant according to | DIN EN 6988 |
| UV-resistant |
|
| Protection class (IP), not installed | IP 65 |
| Operating temperature max. | -40 |
| Halogenfree |
|
认证和标准
| TÜV certified |
|
| UR certification | according to UL 1977 (e-file number: E75770), according to UL 50E (e-file number: E75770) |
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| cUR certification | according to CSA C22.2 No. 182.3 (e-file number: E75770) |
| VDE registration number | B437 |
| CE marked |
|
| cUR category control number | ECBT8 |
| VDE certified |
|
| UL category control number | ECBT2 |
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from EPIC® H-A 10 AD-LB
| Article number | Delivery Unit |
|---|---|
| 70444000 | 1.000 |
