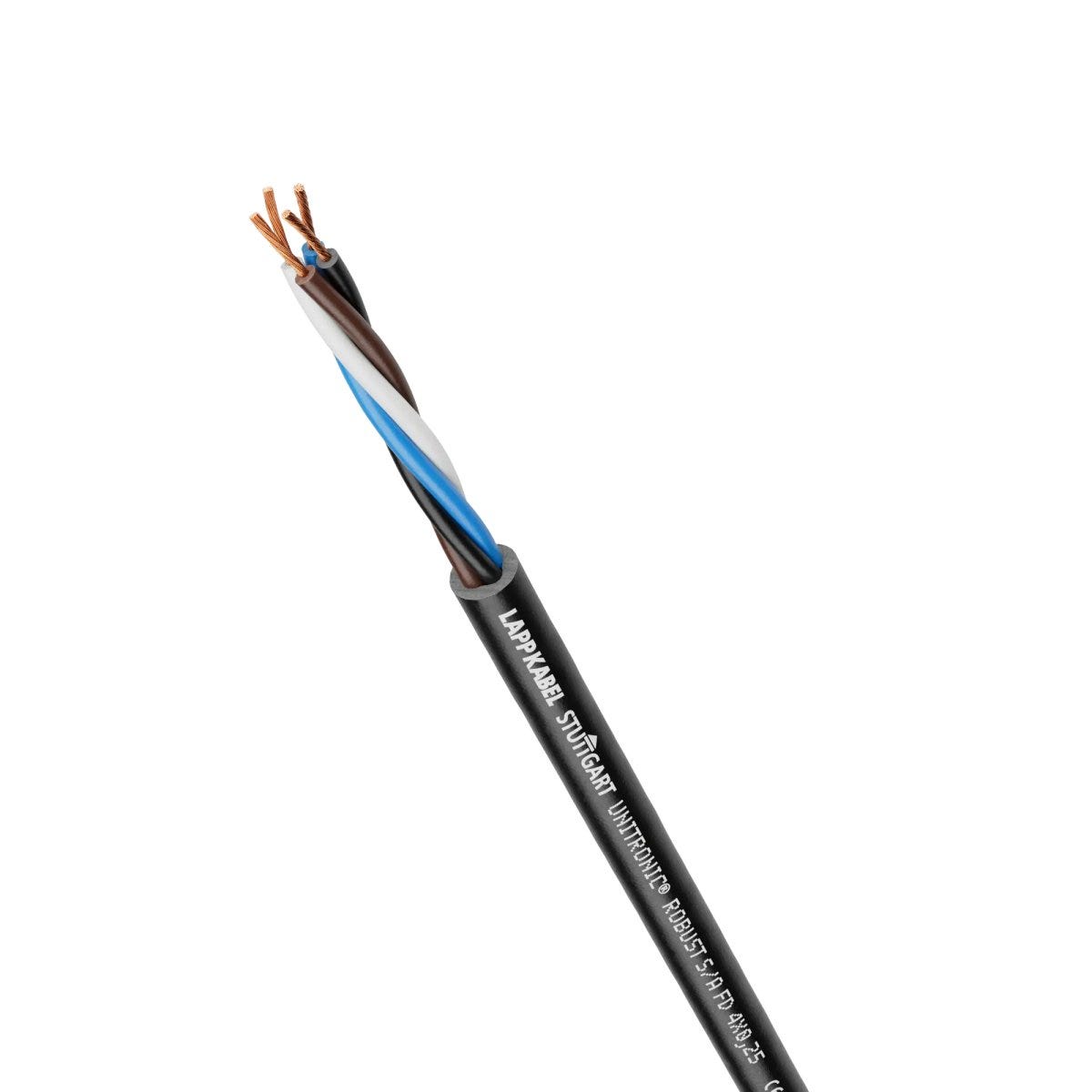

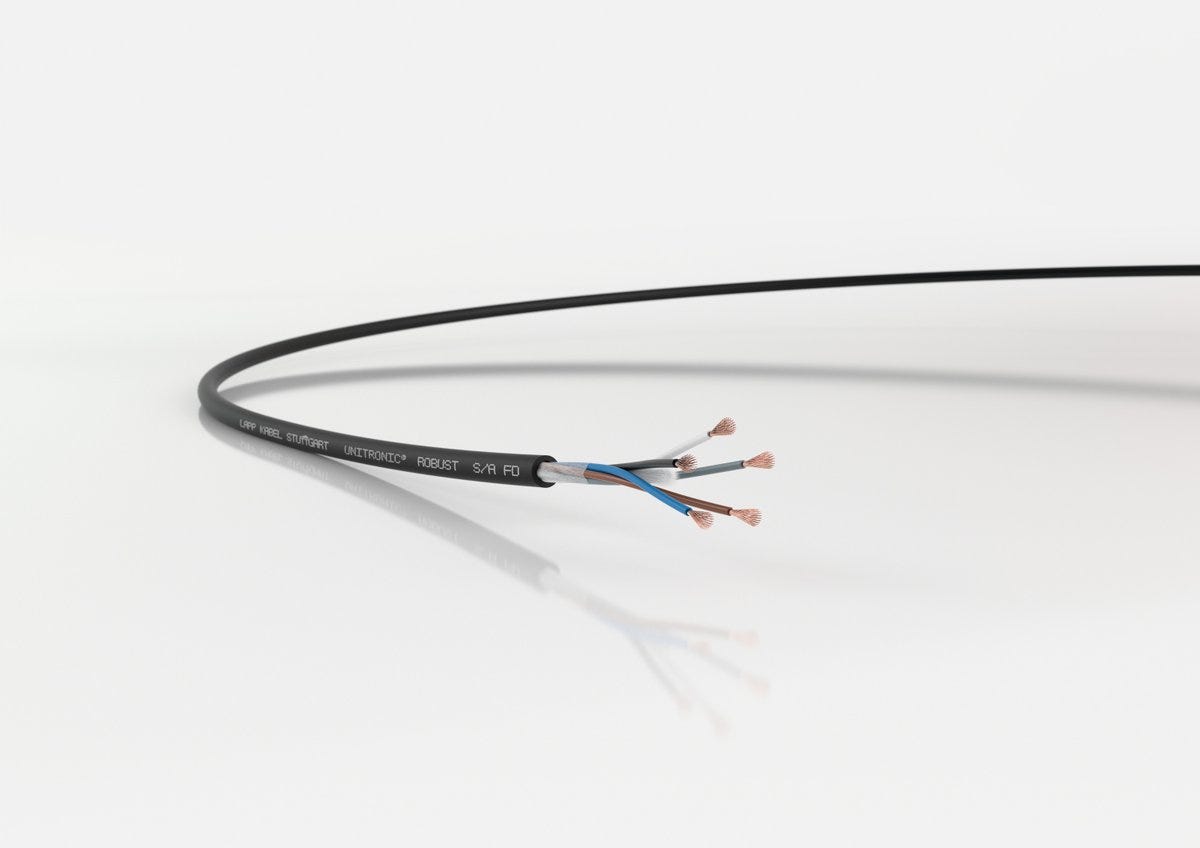

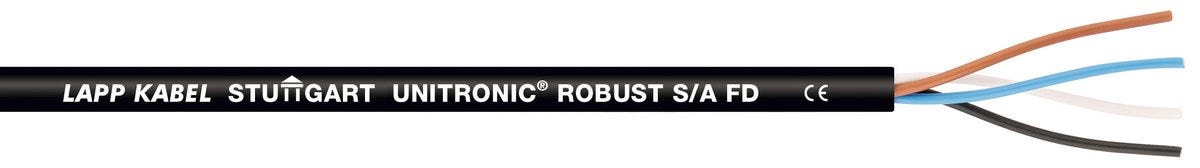

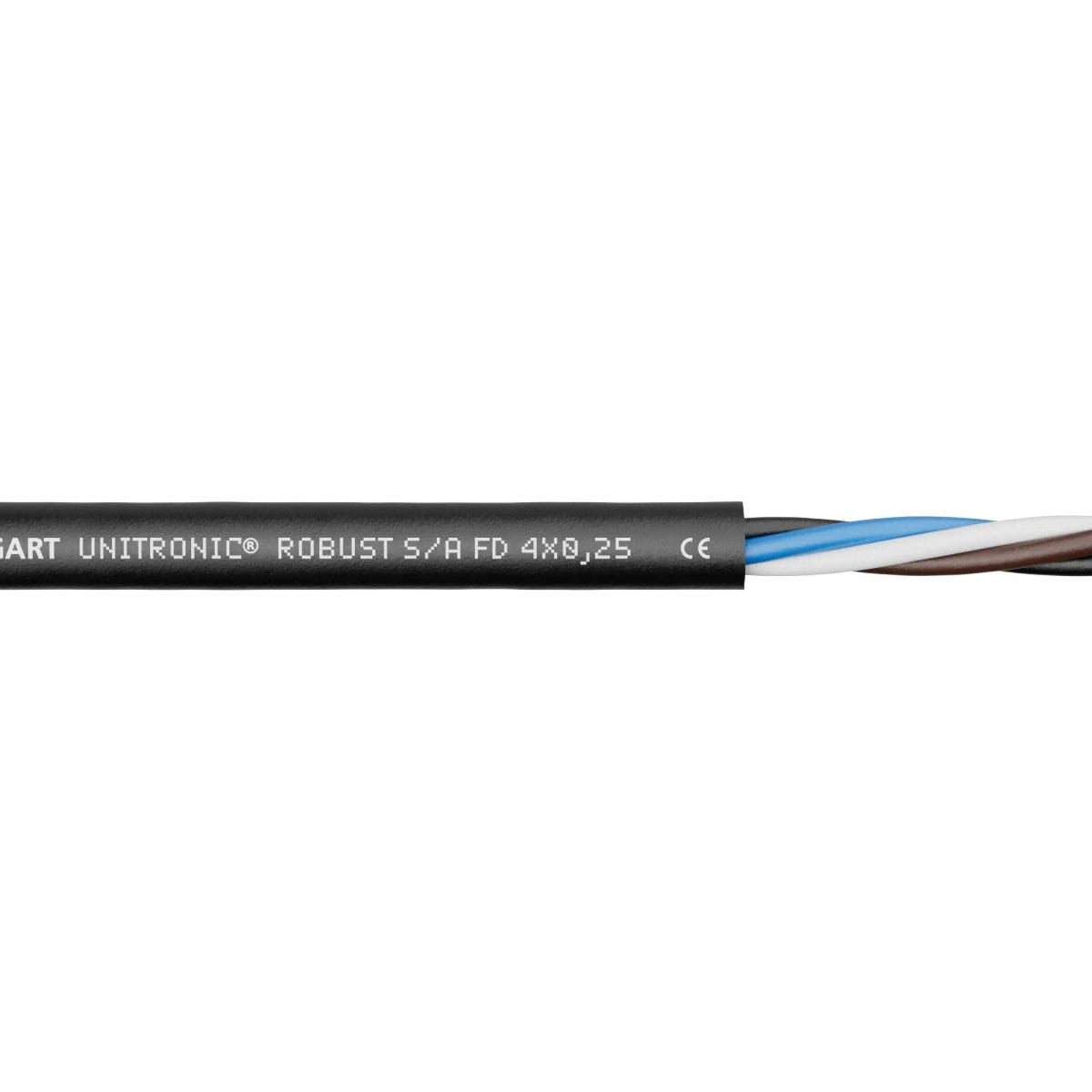

UNITRONIC® ROBUST S/A FD 4x0,25
Sensor/actuator cable; Cable chain; TPE; black
UNITRONIC® ROBUST S/A FD 4x0,25
SGD 3.21
/
UNITRONIC® ROBUST S/A FD 4x0,25
SGD 3.21
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
halogen-free
oil resistant
uv-resistant.
icon powerchain
torsion resistant
Product Carbon Footprint
Certificate
.svg "Ecolab"){kind=logo}
Ecolab
福利
Outstanding weather, ozone and UV resistance together with the wide temperature range enable versatile use for indoor and outdoor applications, Resistant against organic oils, emulsions, greases and waxes based on organic, animal or synthetic, Good resistance to cold and hot water as well as water-soluble cleaning and cooling agents, Well-suited to steam cleaning, Good resistance to ammonia compounds and bio-gases
申请书
Machine tool building, medical technology, laundries, car washing equipment, chemical industry, composting plants, sewage works, Food and beverage industry, especially for production and processing equipment of milk and meat products, Automation technology
技术属性
一般信息
| Brand | UNITRONIC® |
| Product type | Sensor/actuator cable |
| valid fieldbus or Ethernet system | Sensor/Actuator |
| Copper index | 10.200 kg/km |
| Copper index (lb) | 68.541 lb |
| Weight | 26 kg/km |
电气特性
| Max. conductor resistance at 20°C | 79 Ω/km |
| Inductance (800 Hz), approx. | 0.725 |
| Test voltage core/core | 1.5 |
| Conductor/conductor operating capacitance (800Hz), approx. | 59 |

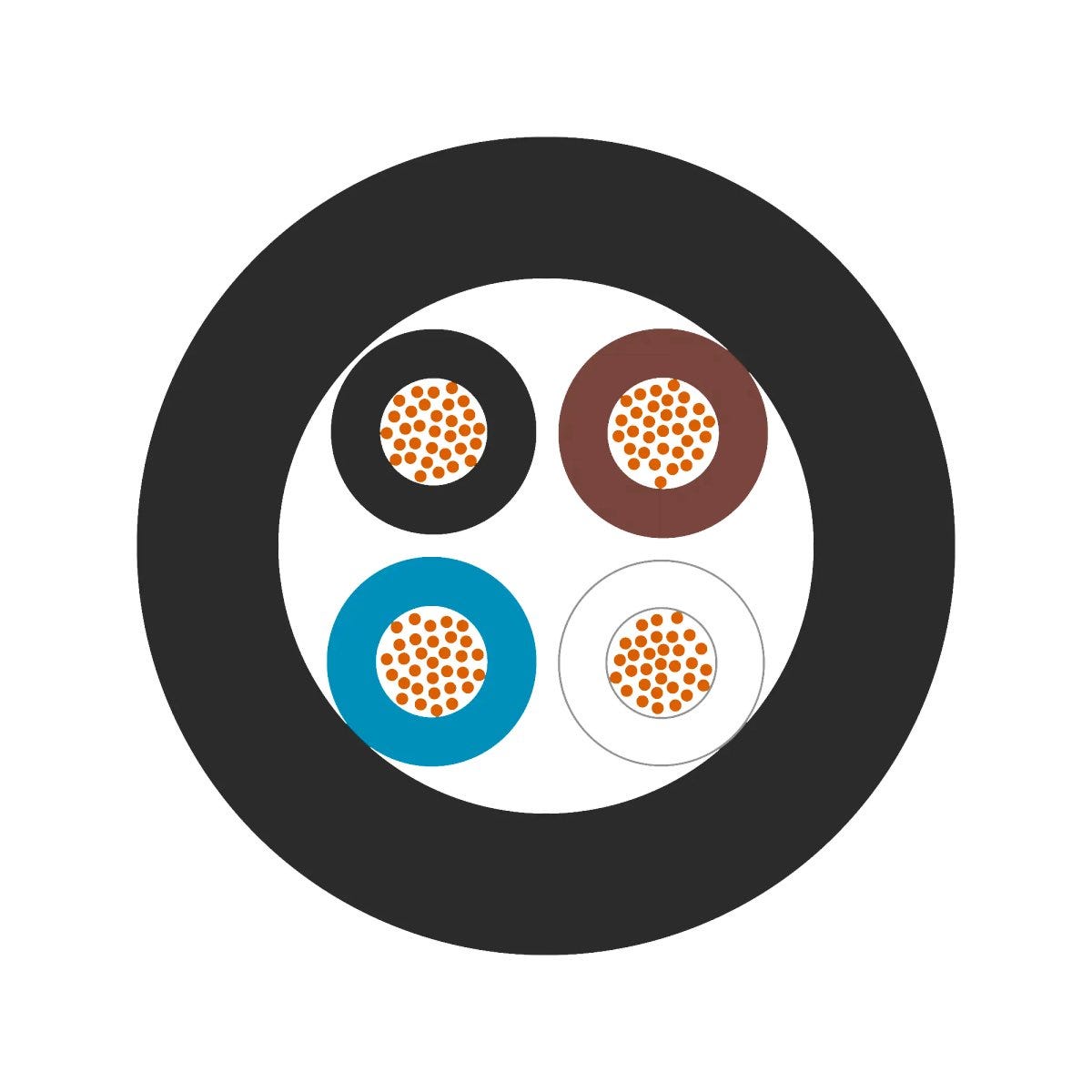

产品设计
| Conductor design | extra-fine wire |
| Nominal outer diameter | 4.9 mm |
| Conductor material | Bare copper |
| Nominal conductor cross-section (metric) | 0.25 mm² |
| Cable dimension | 4X0.25 |
| Wrapping over stranding | Fleece wrapping |
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Round |
| Outer sheath colour | black |
| Stranding type | Layered stranding |
| Leading conductor cross-section | mm² |
| With rodent protection |
|
| Conductor colour code | EN 60947-5-2 |
| Number of cores | 4 |
| Core insulation basic material | Polyolefin |
| Basic material of outer sheath | Thermoplastic elastomers |
| Including protective earth |
|
| Core insulation basic material, short form | PO |
| Basic material of outer sheath, short form | TPE |
产品特点
| Flame-retardant |
|
| Halogen-free according to | EN 50267-2-1, IEC 60754-1 |
| For continuous flexing |
|
| Corrosiveness of combustion gases according to | IEC 60754-2 |
| Fast Connect (FC) cable |
|
| Ozone-resistant according to | EN 50396, method B |
| Minimum bending radius in mm, dynamic continuously flexing | 24.5 mm |
| Ozone resistant |
|
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 14.7 mm |
| PWIS-free |
|
| max. conductor temperature, dynamic continuously flexing | -40 °C to 90 °C max. conductor temperature: |
| Application area | Cable chain |
| max. conductor temperature, occasionally moved | -40 °C to 90 °C max. conductor temperature: |
| Oil-resistant |
|
| Minimum bending radius, stationary | 3 x outer diameter |
| Water resistant |
|
| Temperature, fixed installation | -50 °C to 90 °C max. conductor temperature: |
| Oil resistance according to | IEC 60811-404 |
| UV-resistant according to | EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use) |
| Minimum bending radius, dynamic continuously flexing | 5 x outer diameter |
| UV-C resistant |
|
| Windable |
|
| Torsion | for +/- 360 °/m up to 3000000 Torsion cycles |
| For torsional load |
|
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| CSA certified |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from UNITRONIC® ROBUST S/A FD
| Article number | Cable dimension | Conductor design | Conductor cross-section (mm2) | Copper index calc export | Imp outer dia cable sheath nom | Nominal outer diameter | Weight |
|---|---|---|---|---|---|---|---|
| 7038894 | extra-fine wire | 0.34 | 5.4 | 32 kg/km | |||
| 7038895 | 3X0.34 | extra-fine wire | 0.34 | 5 | 26 kg/km | ||
| 7038896 | 5X0.34 | extra-fine wire | 0.34 | 5.9 | 36 kg/km | ||
| 7038897 | 4X0.25 | extra-fine wire | 0.25 | 4.9 | 26 kg/km |
