MARKING RINGS PLIOSNAP 3-E WH

Marking ring; Imprint: E; Cable diameter: 1.9mm - 2.6mm; For cross-section (min./max.): 0.75mm² - 0.75mm²; white; Polyacetal; Halogenfree
Primary ImagePrimary Image
Other ImageOther Image
Other ImageOther Image
Other ImageOther Image
Other ImageOther Image
Other ImageOther Image
Primary Image
Other Image
Other Image
Other Image
Other Image
Other Image
LAPPSKU: 61919534Article No.#: 61919534

MARKING RINGS PLIOSNAP 3-E WH

Marking ring; Imprint: E; Cable diameter: 1.9mm - 2.6mm; For cross-section (min./max.): 0.75mm² - 0.75mm²; white; Polyacetal; Halogenfree
Primary Image
MARKING RINGS PLIOSNAP 3-E WH
SGD 50.10
付款与安全
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Union Pay
Visa

您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance cold resistance
flame-retardant flame-retardant
halogen-free halogen-free

技术属性

一般信息
Product type Marking ring
Printing procedure Heat embossing process

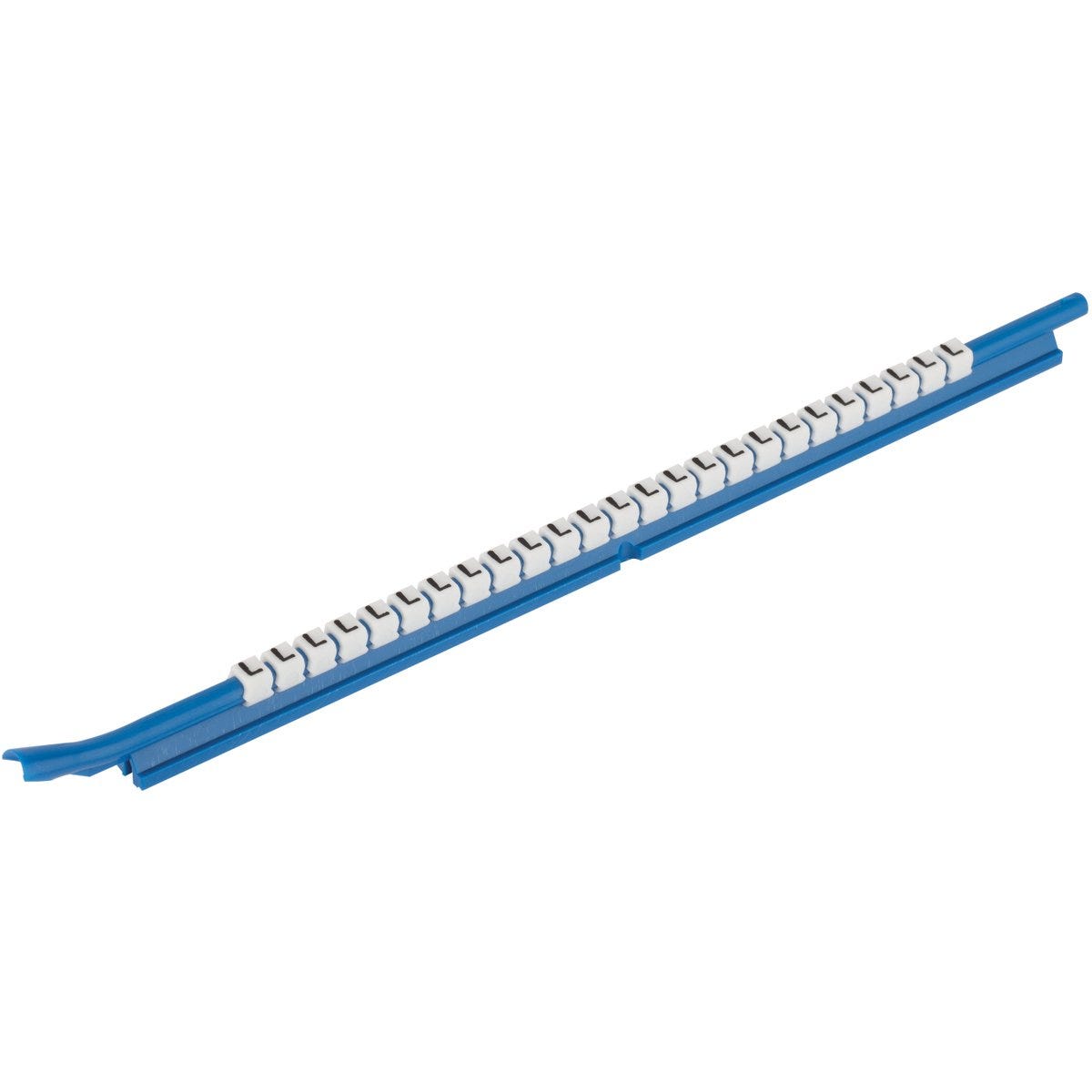

Scope of delivery including carrier rod
Brand FLEXIMARK®
Marking for Cores
Time of installation Before/after installation
Pieces per PU 300

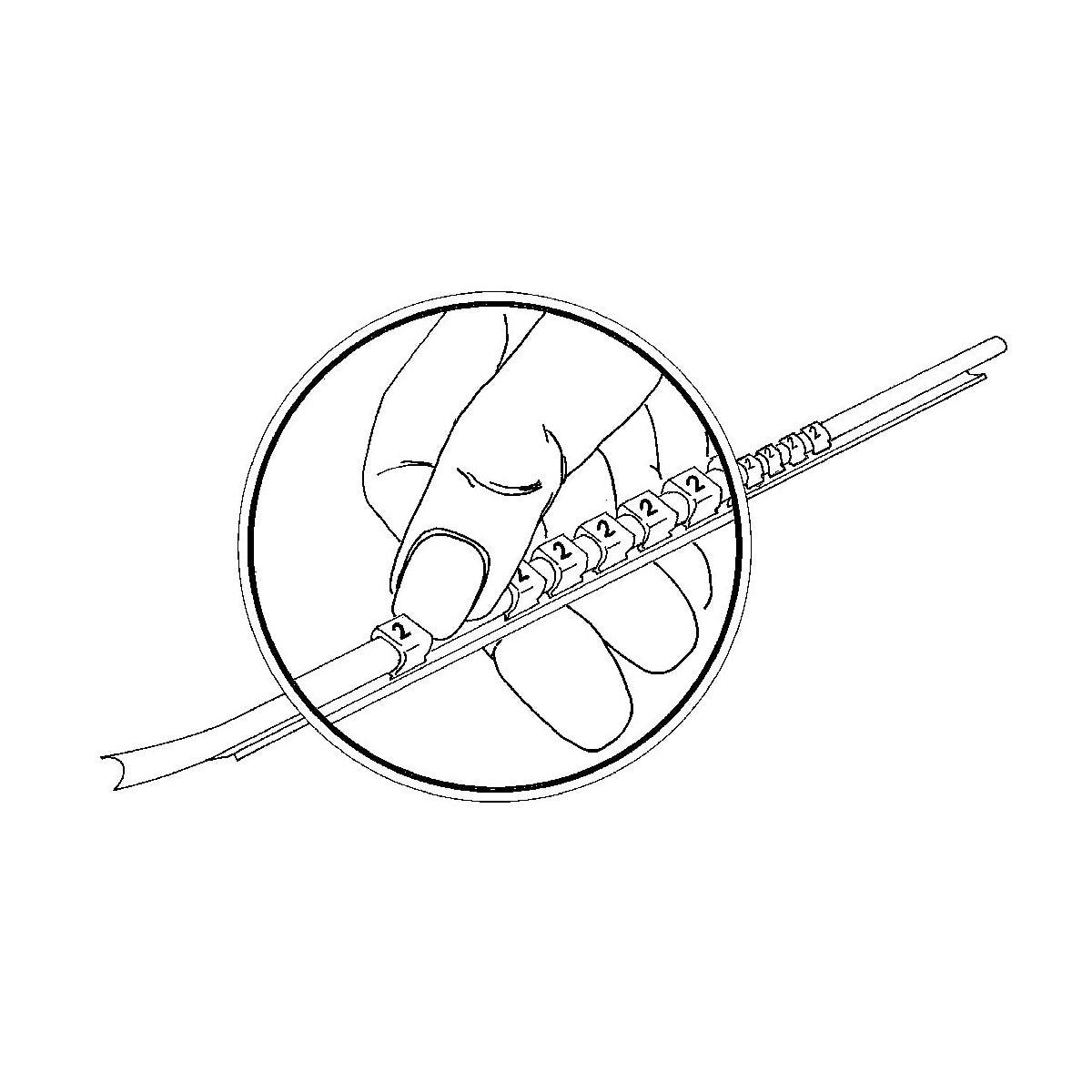

Installation type clip on
Delivery Unit 1.000
Weight 0.038 kg
电气特性
产品设计
For max. cable outer diameter 2.6
For cross-section (min.) 0.75
Colour white
Lettering colour black
Marking E
For cross-section (max.) 0.75
Label type Marking ring
Material Polyacetal
For min. cable outer diameter 1.9
Elasticity module 1800
Labelling Letters
Carrier rod colour green
产品特点
Flame-retardant

Oil-resistant

Waterproof

Alkali-resistant

UV-resistant

Flame retardance according to UL 94 HB
Halogenfree

认证和标准
Ecolab certified

CE marked

文档
Downloads
Datasheet - de-DE (PDF)
Datasheet - en-UK (PDF)
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Trade product, not a LAPP product.
产品系列列表
All articles from Marking rings Pliosnap
Article number Marking For min. cable outer diameter Imp 4cable outer diam min For max. cable outer diameter Imp 4cable outer diam max For cross-section (min.) For cross-section (max.) Pieces per PU
61919400 0 0.85 1.1 0.2 0.4 300
61919401 1 0.85 1.1 0.2 0.4 300
61919402 2 0.85 1.1 0.2 0.4 300
61919403 3 0.85 1.1 0.2 0.4 300
61919404 4 0.85 1.1 0.2 0.4 300
61919405 5 0.85 1.1 0.2 0.4 300
61919406 6 0.85 1.1 0.2 0.4 300
61919407 7 0.85 1.1 0.2 0.4 300
61919408 8 0.85 1.1 0.2 0.4 300
61919409 9 0.85 1.1 0.2 0.4 300
61919410 A 0.85 1.1 0.2 0.4 300
61919411 B 0.85 1.1 0.2 0.4 300
61919412 C 0.85 1.1 0.2 0.4 300
61919413 D 0.85 1.1 0.2 0.4 300
61919414 E 0.85 1.1 0.2 0.4 300
61919415 F 0.85 1.1 0.2 0.4 300
61919416 G 0.85 1.1 0.2 0.4 300
61919417 H 0.85 1.1 0.2 0.4 300
61919418 I 0.85 1.1 0.2 0.4 300
61919419 J 0.85 1.1 0.2 0.4 300
61919420 K 0.85 1.1 0.2 0.4 300
61919421 L 0.85 1.1 0.2 0.4 300
61919422 M 0.85 1.1 0.2 0.4 300
61919423 N 0.85 1.1 0.2 0.4 300
61919424 O 0.85 1.1 0.2 0.4 300
61919425 P 0.85 1.1 0.2 0.4 300
61919426 Q 0.85 1.1 0.2 0.4 300
61919427 R 0.85 1.1 0.2 0.4 300
61919428 S 0.85 1.1 0.2 0.4 300
61919429 T 0.85 1.1 0.2 0.4 300
61919430 U 0.85 1.1 0.2 0.4 300
61919431 V 0.85 1.1 0.2 0.4 300
61919432 W 0.85 1.1 0.2 0.4 300
61919433 X 0.85 1.1 0.2 0.4 300
61919434 Y 0.85 1.1 0.2 0.4 300
61919435 Z 0.85 1.1 0.2 0.4 300
61919436 + 0.85 1.1 0.2 0.4 300
61919437 - 0.85 1.1 0.2 0.4 300
61919438 . 0.85 1.1 0.2 0.4 300
61919439 : 0.85 1.1 0.2 0.4 300
61919440 0 1.0 1.4 0.32 0.32 300
61919441 1 1.0 1.4 0.32 0.32 300
61919442 2 1.0 1.4 0.32 0.32 300
61919443 3 1.0 1.4 0.32 0.32 300
61919444 4 1.0 1.4 0.32 0.32 300
61919445 5 1.0 1.4 0.32 0.32 300
61919446 6 1.0 1.4 0.32 0.32 300
61919447 7 1.0 1.4 0.32 0.32 300
61919448 8 1.0 1.4 0.32 0.32 300
61919449 9 1.0 1.4 0.32 0.32 300
61919450 A 1.0 1.4 0.32 0.32 300
61919451 B 1.0 1.4 0.32 0.32 300
61919452 C 1.0 1.4 0.32 0.32 300
61919453 D 1.0 1.4 0.32 0.32 300
61919454 E 1.0 1.4 0.32 0.32 300
61919455 F 1.0 1.4 0.32 0.32 300
61919456 G 1.0 1.4 0.32 0.32 300
61919457 H 1.0 1.4 0.32 0.32 300
61919458 I 1.0 1.4 0.32 0.32 300
61919459 J 1.0 1.4 0.32 0.32 300
61919460 K 1.0 1.4 0.32 0.32 300
61919461 L 1.0 1.4 0.32 0.32 300
61919462 M 1.0 1.4 0.32 0.32 300
61919463 N 1.0 1.4 0.32 0.32 300
61919464 O 1.0 1.4 0.32 0.32 300
61919465 P 1.0 1.4 0.32 0.32 300
61919466 Q 1.0 1.4 0.32 0.32 300
61919467 R 1.0 1.4 0.32 0.32 300
61919468 S 1.0 1.4 0.32 0.32 300
61919469 T 1.0 1.4 0.32 0.32 300
61919470 U 1.0 1.4 0.32 0.32 300
61919471 V 1.0 1.4 0.32 0.32 300
61919472 W 1.0 1.4 0.32 0.32 300
61919473 X 1.0 1.4 0.32 0.32 300
61919474 Y 1.0 1.4 0.32 0.32 300
61919475 Z 1.0 1.4 0.32 0.32 300
61919476 + 1.0 1.4 0.32 0.32 300
61919477 - 1.0 1.4 0.32 0.32 300
61919478 . 1.0 1.4 0.32 0.32 300
61919479 : 1.0 1.4 0.32 0.32 300
61919480 0 1.4 1.8 0.5 0.5 300
61919481 1 1.4 1.8 0.5 0.5 300
61919482 2 1.4 1.8 0.5 0.5 300
61919483 3 1.4 1.8 0.5 0.5 300
61919484 4 1.4 1.8 0.5 0.5 300
61919485 5 1.4 1.8 0.5 0.5 300
61919486 6 1.4 1.8 0.5 0.5 300
61919487 7 1.4 1.8 0.5 0.5 300
61919488 8 1.4 1.8 0.5 0.5 300
61919489 9 1.4 1.8 0.5 0.5 300
61919490 A 1.4 1.8 0.5 0.5 300
61919491 B 1.4 1.8 0.5 0.5 300
61919493 D 1.4 1.8 0.5 0.5 300
61919494 E 1.4 1.8 0.5 0.5 300
61919495 F 1.4 1.8 0.5 0.5 300
61919496 G 1.4 1.8 0.5 0.5 300
61919497 H 1.4 1.8 0.5 0.5 300
61919498 I 1.4 1.8 0.5 0.5 300
61919499 J 1.4 1.8 0.5 0.5 300
61919500 K 1.4 1.8 0.5 0.5 300
61919501 L 1.4 1.8 0.5 0.5 300
61919502 M 1.4 1.8 0.5 0.5 300
61919503 N 1.4 1.8 0.5 0.5 300
61919504 O 1.4 1.8 0.5 0.5 300
61919505 P 1.4 1.8 0.5 0.5 300
61919506 Q 1.4 1.8 0.5 0.5 300
61919507 R 1.4 1.8 0.5 0.5 300
61919508 S 1.4 1.8 0.5 0.5 300
61919509 T 1.4 1.8 0.5 0.5 300
61919510 U 1.4 1.8 0.5 0.5 300
61919511 V 1.4 1.8 0.5 0.5 300
61919512 W 1.4 1.8 0.5 0.5 300
61919513 X 1.4 1.8 0.5 0.5 300
61919514 Y 1.4 1.8 0.5 0.5 300
61919515 Z 1.4 1.8 0.5 0.5 300
61919516 + 1.4 1.8 0.5 0.5 300
61919517 - 1.4 1.8 0.5 0.5 300
61919518 . 1.4 1.8 0.5 0.5 300
61919519 : 1.4 1.8 0.5 0.5 300
61919520 0 1.9 2.6 0.75 0.75 300
61919521 1 1.9 2.6 0.75 0.75 300
61919522 2 1.9 2.6 0.75 0.75 300
61919523 3 1.9 2.6 0.75 0.75 300
61919524 4 1.9 2.6 0.75 0.75 300
61919525 5 1.9 2.6 0.75 0.75 300
61919526 6 1.9 2.6 0.75 0.75 300
61919527 7 1.9 2.6 0.75 0.75 300
61919528 8 1.9 2.6 0.75 0.75 300
61919529 9 1.9 2.6 0.75 0.75 300
61919530 A 1.9 2.6 0.75 0.75 300
61919531 B 1.9 2.6 0.75 0.75 300
61919532 C 1.9 2.6 0.75 0.75 300
61919533 D 1.9 2.6 0.75 0.75 300
61919534 E 1.9 2.6 0.75 0.75 300
61919535 F 1.9 2.6 0.75 0.75 300
61919536 G 1.9 2.6 0.75 0.75 300
61919537 H 1.9 2.6 0.75 0.75 300
61919538 I 1.9 2.6 0.75 0.75 300
61919539 J 1.9 2.6 0.75 0.75 300
61919540 K 1.9 2.6 0.75 0.75 300
61919541 L 1.9 2.6 0.75 0.75 300
61919542 M 1.9 2.6 0.75 0.75 300
61919543 N 1.9 2.6 0.75 0.75 300
61919544 O 1.9 2.6 0.75 0.75 300
61919545 P 1.9 2.6 0.75 0.75 300
61919546 Q 1.9 2.6 0.75 0.75 300
61919547 R 1.9 2.6 0.75 0.75 300
61919548 S 1.9 2.6 0.75 0.75 300
61919549 T 1.9 2.6 0.75 0.75 300
61919550 U 1.9 2.6 0.75 0.75 300
61919551 V 1.9 2.6 0.75 0.75 300
61919552 W 1.9 2.6 0.75 0.75 300
61919553 X 1.9 2.6 0.75 0.75 300
61919554 Y 1.9 2.6 0.75 0.75 300
61919555 Z 1.9 2.6 0.75 0.75 300
61919556 + 1.9 2.6 0.75 0.75 300
61919557 - 1.9 2.6 0.75 0.75 300
61919558 . 1.9 2.6 0.75 0.75 300
61919559 : 1.9 2.6 0.75 0.75 300
61919560 0 2.6 3.5 1.0 1.5 300
61919561 1 2.6 3.5 1.0 1.5 300
61919562 2 2.6 3.5 1.0 1.5 300
61919563 3 2.6 3.5 1.0 1.5 300
61919564 4 2.6 3.5 1.0 1.5 300
61919565 5 2.6 3.5 1.0 1.5 300
61919566 6 2.6 3.5 1.0 1.5 300
61919567 7 2.6 3.5 1.0 1.5 300
61919568 8 2.6 3.5 1.0 1.5 300
61919569 9 2.6 3.5 1.0 1.5 300
61919570 A 2.6 3.5 1.0 1.5 300
61919571 B 2.6 3.5 1.0 1.5 300
61919572 C 2.6 3.5 1.0 1.5 300
61919573 D 2.6 3.5 1.0 1.5 300
61919574 E 2.6 3.5 1.0 1.5 300
61919575 F 2.6 3.5 1.0 1.5 300
61919576 G 2.6 3.5 1.0 1.5 300
61919577 H 2.6 3.5 1.0 1.5 300
61919578 I 2.6 3.5 1.0 1.5 300
61919579 J 2.6 3.5 1.0 1.5 300
61919580 K 2.6 3.5 1.0 1.5 300
61919581 L 2.6 3.5 1.0 1.5 300
61919582 M 2.6 3.5 1.0 1.5 300
61919583 N 2.6 3.5 1.0 1.5 300
61919584 O 2.6 3.5 1.0 1.5 300
61919585 P 2.6 3.5 1.0 1.5 300
61919586 Q 2.6 3.5 1.0 1.5 300
61919587 R 2.6 3.5 1.0 1.5 300
61919588 S 2.6 3.5 1.0 1.5 300
61919589 T 2.6 3.5 1.0 1.5 300
61919590 U 2.6 3.5 1.0 1.5 300
61919591 V 2.6 3.5 1.0 1.5 300
61919592 W 2.6 3.5 1.0 1.5 300
61919593 X 2.6 3.5 1.0 1.5 300
61919594 Y 2.6 3.5 1.0 1.5 300
61919595 Z 2.6 3.5 1.0 1.5 300
61919596 + 2.6 3.5 1.0 1.5 300
61919597 - 2.6 3.5 1.0 1.5 300
61919598 . 2.6 3.5 1.0 1.5 300
61919599 : 2.6 3.5 1.0 1.5 300
61919600 0 3.2 4.5 2.5 2.5 300
61919601 1 3.2 4.5 2.5 2.5 300
61919602 2 3.2 4.5 2.5 2.5 300
61919603 3 3.2 4.5 2.5 2.5 300
61919604 4 3.2 4.5 2.5 2.5 300
61919605 5 3.2 4.5 2.5 2.5 300
61919606 6 3.2 4.5 2.5 2.5 300
61919607 7 3.2 4.5 2.5 2.5 300
61919608 8 3.2 4.5 2.5 2.5 300
61919609 9 3.2 4.5 2.5 2.5 300
61919610 A 3.2 4.5 2.5 2.5 300
61919611 B 3.2 4.5 2.5 2.5 300
61919612 C 3.2 4.5 2.5 2.5 300
61919613 D 3.2 4.5 2.5 2.5 300
61919614 E 3.2 4.5 2.5 2.5 300
61919615 F 3.2 4.5 2.5 2.5 300
61919616 G 3.2 4.5 2.5 2.5 300
61919617 H 3.2 4.5 2.5 2.5 300
61919618 I 3.2 4.5 2.5 2.5 300
61919619 J 3.2 4.5 2.5 2.5 300
61919620 K 3.2 4.5 2.5 2.5 300
61919621 L 3.2 4.5 2.5 2.5 300
61919622 M 3.2 4.5 2.5 2.5 300
61919623 N 3.2 4.5 2.5 2.5 300
61919624 O 3.2 4.5 2.5 2.5 300
61919625 P 3.2 4.5 2.5 2.5 300
61919626 Q 3.2 4.5 2.5 2.5 300
61919627 R 3.2 4.5 2.5 2.5 300
61919628 S 3.2 4.5 2.5 2.5 300
61919629 T 3.2 4.5 2.5 2.5 300
61919630 U 3.2 4.5 2.5 2.5 300
61919631 V 3.2 4.5 2.5 2.5 300
61919632 W 3.2 4.5 2.5 2.5 300
61919633 X 3.2 4.5 2.5 2.5 300
61919634 Y 3.2 4.5 2.5 2.5 300
61919635 Z 3.2 4.5 2.5 2.5 300
61919636 + 3.2 4.5 2.5 2.5 300
61919637 - 3.2 4.5 2.5 2.5 300
61919638 . 3.2 4.5 2.5 2.5 300
61919639 : 3.2 4.5 2.5 2.5 300
61919640 0 4.5 6.0 4.6 4.6 300
61919641 1 4.5 6.0 4.6 4.6 300
61919642 2 4.5 6.0 4.6 4.6 300
61919643 3 4.5 6.0 4.6 4.6 300
61919644 4 4.5 6.0 4.6 4.6 300
61919645 5 4.5 6.0 4.6 4.6 300
61919646 6 4.5 6.0 4.6 4.6 300
61919647 7 4.5 6.0 4.6 4.6 300
61919648 8 4.5 6.0 4.6 4.6 300
61919649 9 4.5 6.0 4.6 4.6 300
61919650 A 4.5 6.0 4.6 4.6 300
61919651 B 4.5 6.0 4.6 4.6 300
61919652 C 4.5 6.0 4.6 4.6 300
61919653 D 4.5 6.0 4.6 4.6 300
61919654 E 4.5 6.0 4.6 4.6 300
61919655 F 4.5 6.0 4.6 4.6 300
61919656 G 4.5 6.0 4.6 4.6 300
61919657 H 4.5 6.0 4.6 4.6 300
61919658 I 4.5 6.0 4.6 4.6 300
61919659 J 4.5 6.0 4.6 4.6 300
61919660 K 4.5 6.0 4.6 4.6 300
61919661 L 4.5 6.0 4.6 4.6 300
61919662 M 4.5 6.0 4.6 4.6 300
61919663 N 4.5 6.0 4.6 4.6 300
61919664 O 4.5 6.0 4.6 4.6 300
61919665 P 4.5 6.0 4.6 4.6 300
61919666 Q 4.5 6.0 4.6 4.6 300
61919667 R 4.5 6.0 4.6 4.6 300
61919668 S 4.5 6.0 4.6 4.6 300
61919669 T 4.5 6.0 4.6 4.6 300
61919670 U 4.5 6.0 4.6 4.6 300
61919671 V 4.5 6.0 4.6 4.6 300
61919672 W 4.5 6.0 4.6 4.6 300
61919673 X 4.5 6.0 4.6 4.6 300
61919674 Y 4.5 6.0 4.6 4.6 300
61919675 Z 4.5 6.0 4.6 4.6 300
61919676 + 4.5 6.0 4.6 4.6 300
61919677 - 4.5 6.0 4.6 4.6 300
61919678 . 4.5 6.0 4.6 4.6 300
61919679 : 4.5 6.0 4.6 4.6 300
