线圈末套 DIN 1.0 RD
End sleeve; suitable crimp-insert: ; for cross-section: 1mm²; Overall length: 14.5mm; red; Electrolytic copper Tin-plated
线圈末套 DIN 1.0 RD
SGD 0.06
/
线圈末套 DIN 1.0 RD
SGD 0.06
/
In stock (3000)
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
halogen-free
oil resistant
corrosion resistant
chemical resistance
Certificate
cUL listed US, UL listed US
福利
Conductor end sleeve tape on coil for maximum simplification and time saving
Ideal for automated cable assembly in large volumes
Particularly suitable in combination with GLW crimping machines
UL certification according to technical data enables the product to be used on the North American market.
申请书
For creating a (semi-)automated crimp connection using a crimping machine.
技术属性
一般信息
| Product type | End sleeve |

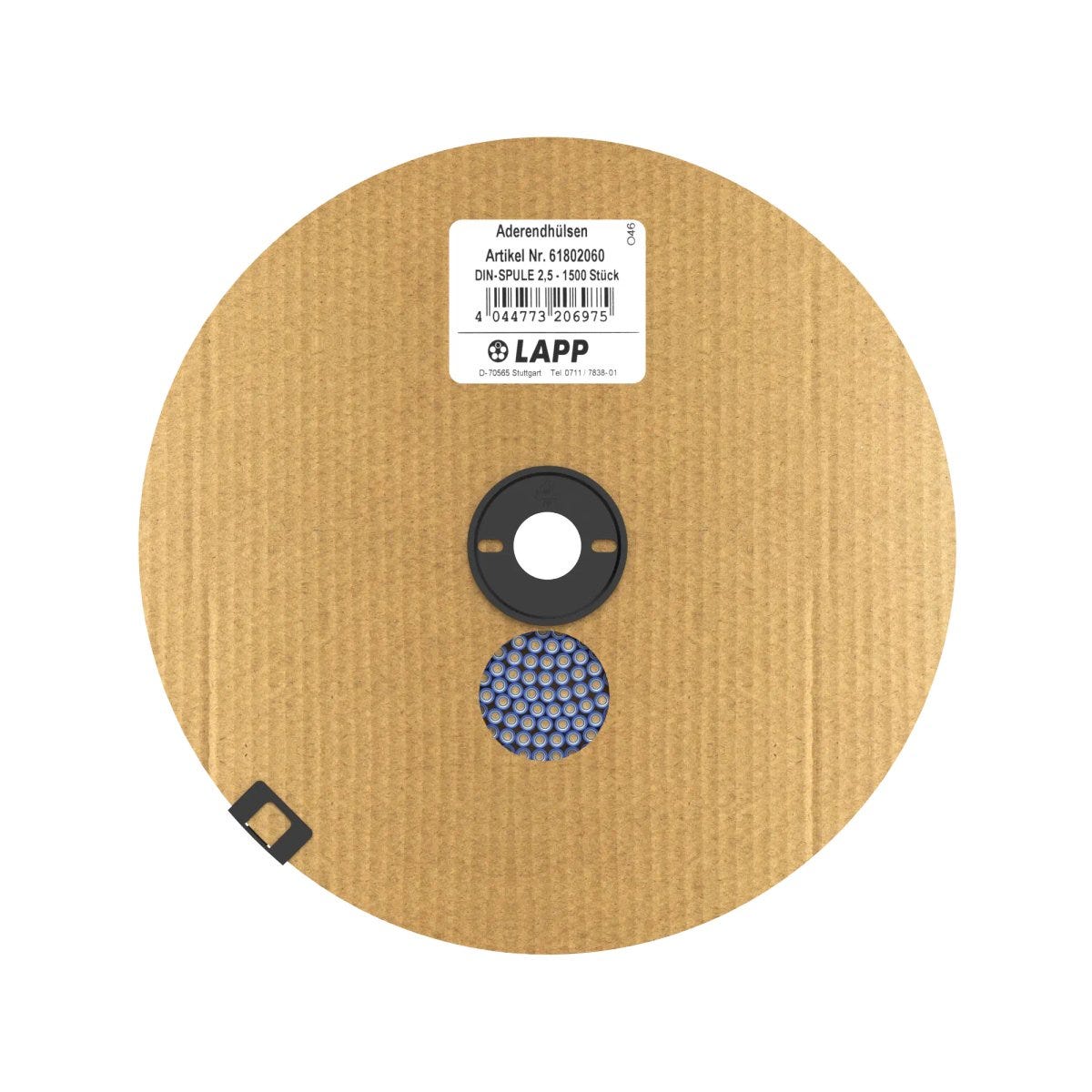

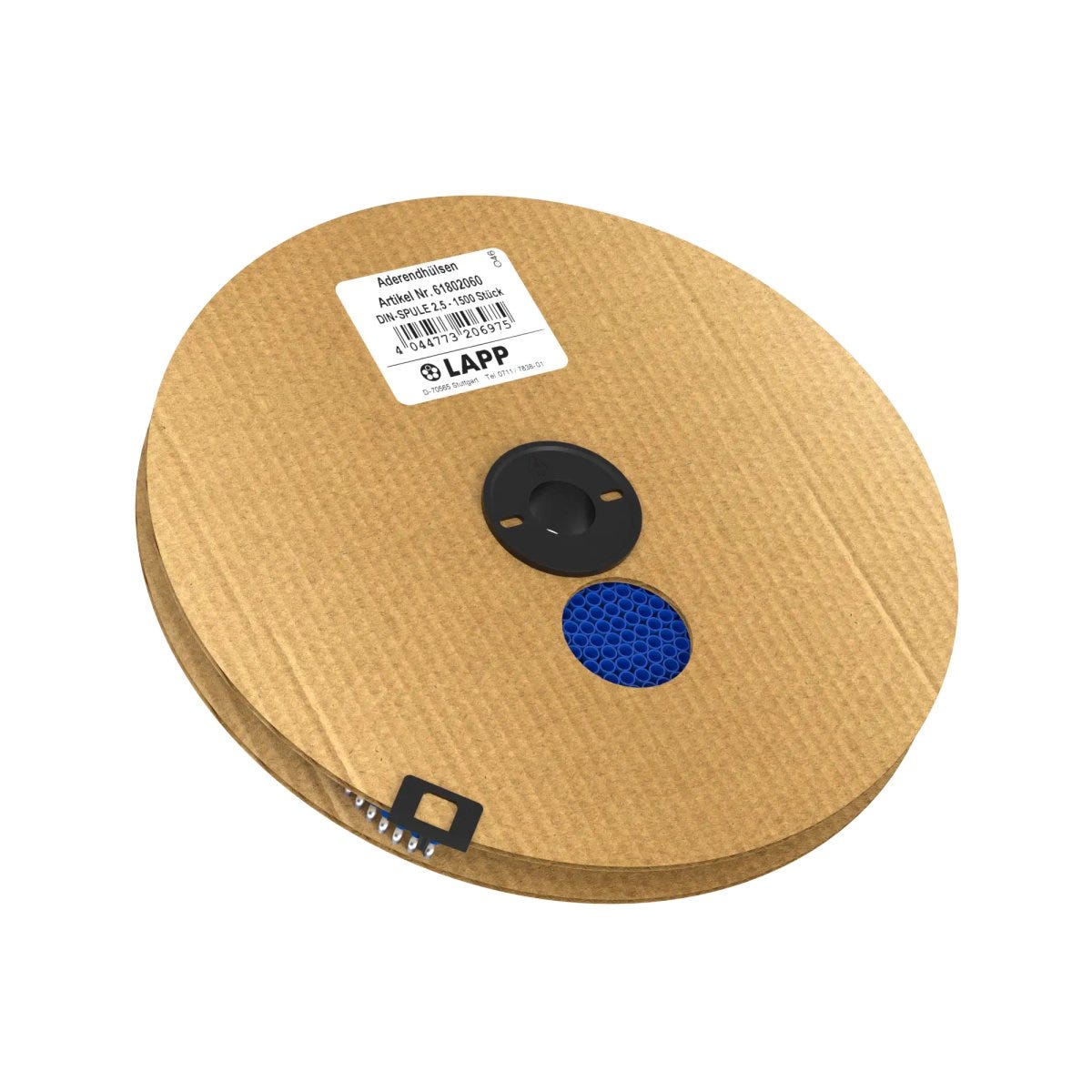

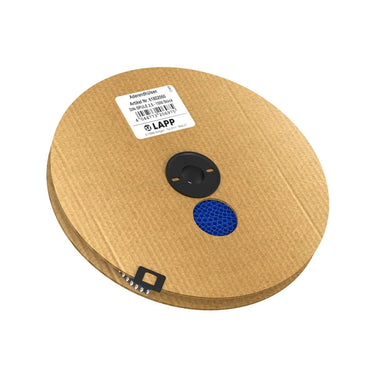

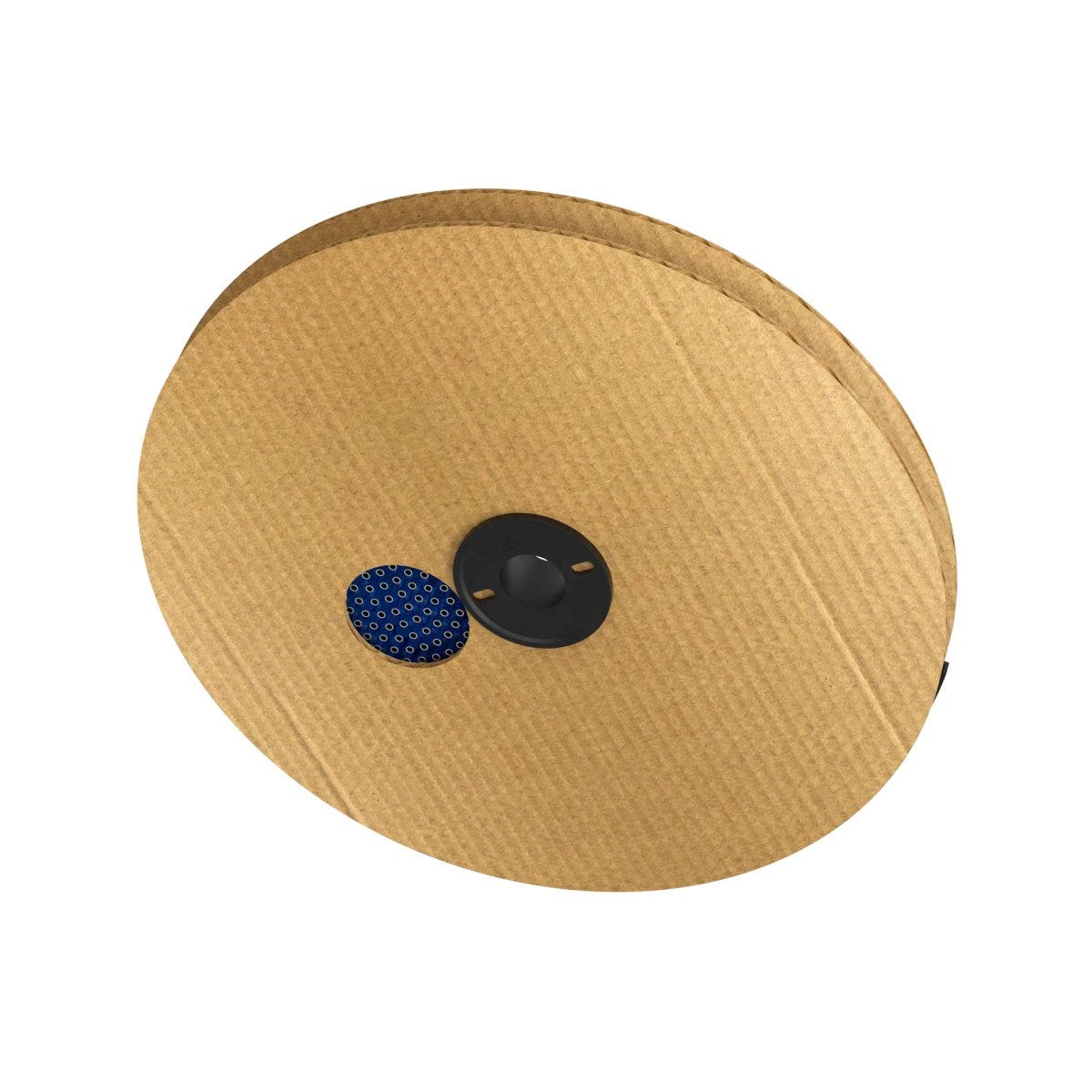

| Packaging type | Spool |
| Delivery Unit | 3000.000 |
| Weight | 0 kg |
电气特性
产品设计
| Total length | 14.5 |
| Connector material | Electrolytic copper |
| Cable lug design | End sleeve |
| Surface protection | Tin-plated |
| Overall width | 3 |
| Colour | red |
| For cross-section | 1 |
| Insulation material | Polypropylene |
产品特点
| Flame-retardant |
|
| Oil-resistant |
|
| Corrosion-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Short term temperature max. | 120 |
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
