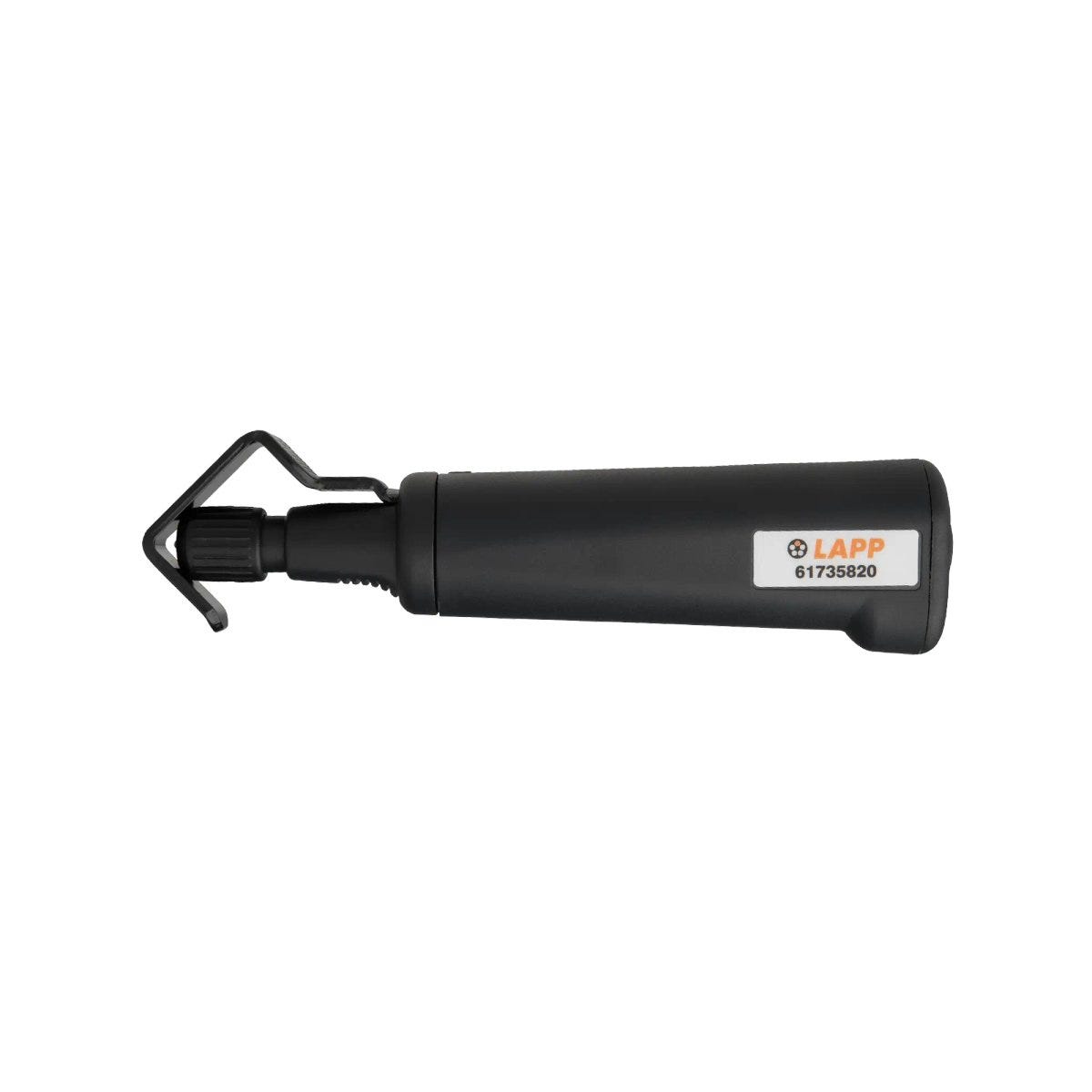

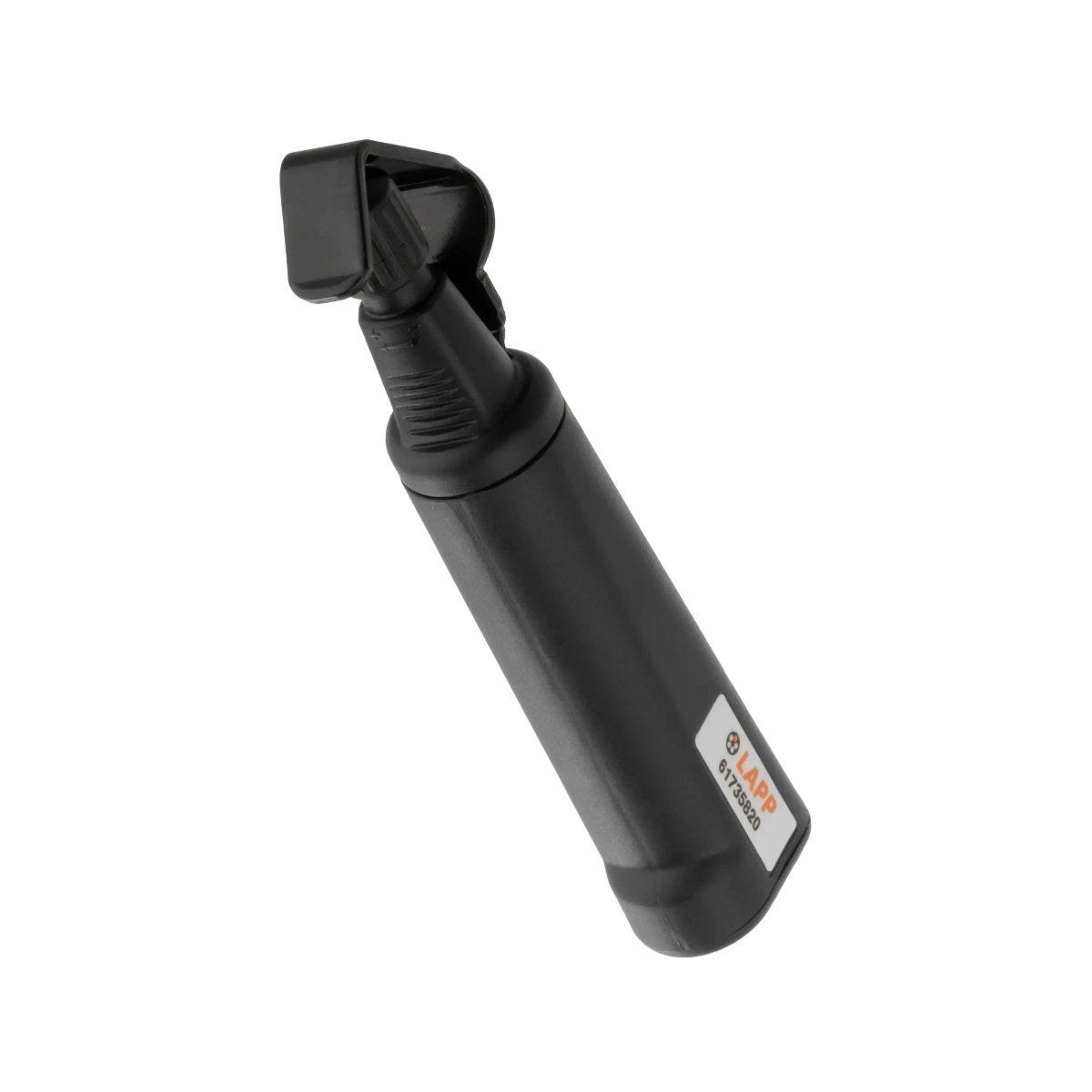

剥线工具 STAR STRIP
Dismantling tool; Cable diameter: 4.5mm - 40mm;
剥线工具 STAR STRIP
SGD 163.93
/
剥线工具 STAR STRIP
SGD 163.93
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
技术属性
一般信息
| Product type | Dismantling tool |

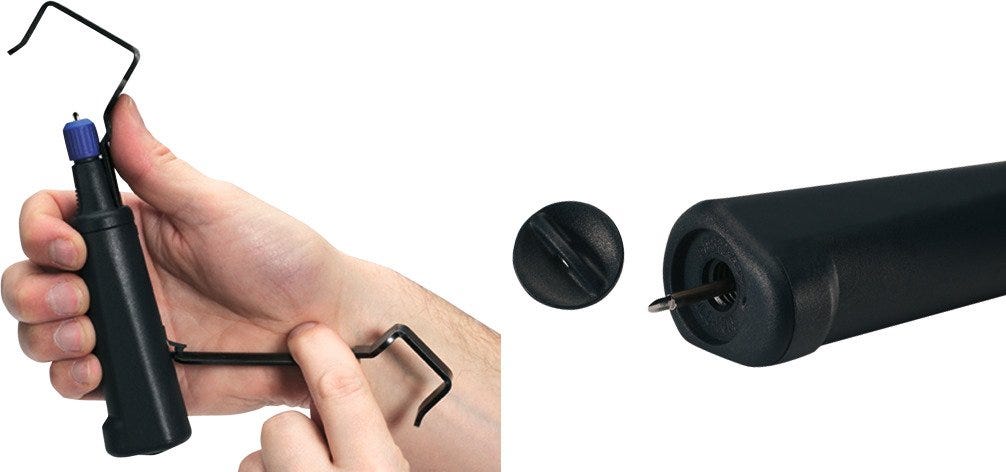

| Scope of delivery | including hook (small & large), including knife |
| Suitable for | Cables |
| Delivery Unit | 1.000 |
| Weight | 0.203 kg |
电气特性
产品设计
| Overall width | 42 |
| Colour | black |
| Total length | 150 |
| For max. cable outer diameter | 40 |
| Total height | 30.5 |
| for insulation material | Polyurethane, Thermoplastic elastomers, Polytetrafluoroethylene |
| For min. cable outer diameter | 4.5 |
产品特点
认证和标准
| TÜV certified |
|
| CE marked |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
产品系列列表

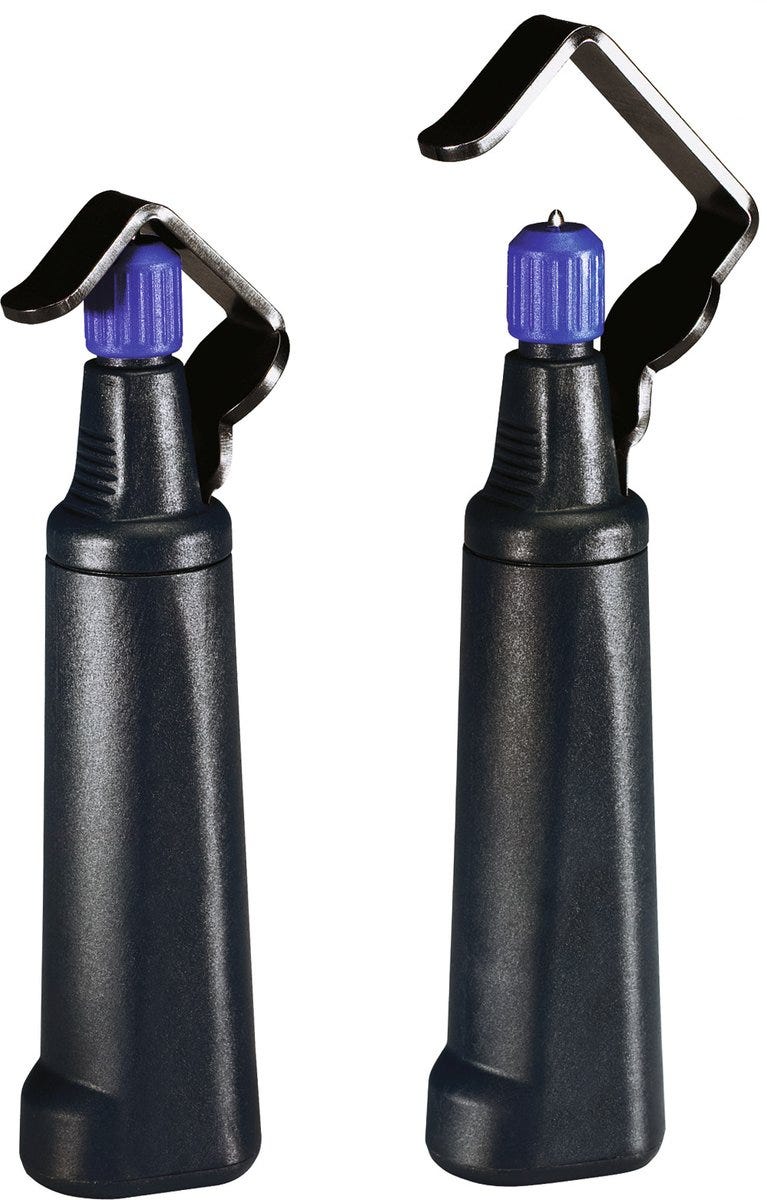

All articles from STAR STRIP stripping tool
| Article number | For min. cable outer diameter | Imp 4cable outer diam min | For max. cable outer diameter | Imp 4cable outer diam max | For cross-section (min.) | For cross-section (max.) | for insulation material | Product type |
|---|---|---|---|---|---|---|---|---|
| 61735820 | 4.5 | 40 | Polyurethane, Thermoplastic elastomers, Polytetrafluoroethylene | Dismantling tool | ||||
| 61735821 | Polyurethane, Thermoplastic elastomers, Polytetrafluoroethylene | Spare blade | ||||||
| 61735822 | 4.5 | 25 | Hook | |||||
| 61735823 | 20 | 40 | Hook |
