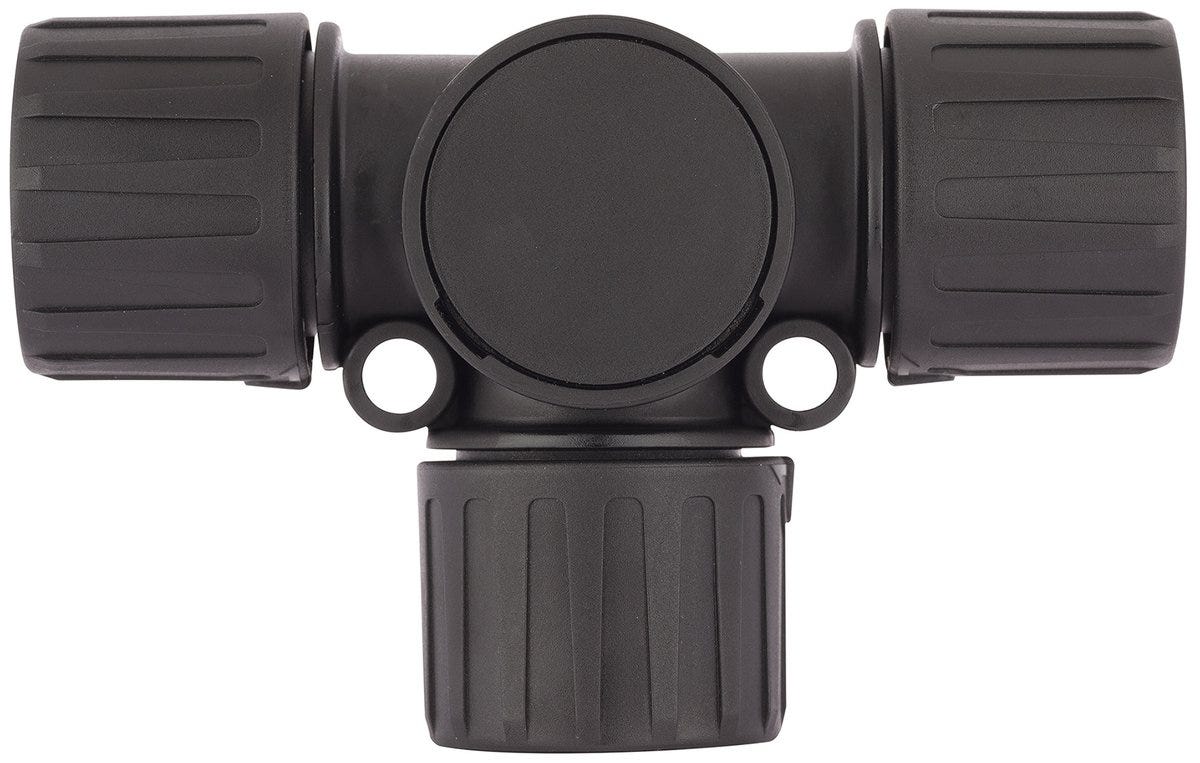

SILVYN® FPAX T21 BK
T-connector; Clear width: 19mm; For conduit outer diameter: 21mm; Polyamide; Halogenfree; UV-resistant; IP 68, IP 66, IP 67
SILVYN® FPAX T21 BK
SGD 23.13
/
SILVYN® FPAX T21 BK
SGD 23.13
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
heat resistance
cold resistance
flame-retardant
halogen-free
oil resistant
chemical resistance
uv-resistant.
Certificate
CE marked
福利
Fast assembly, High tensile strength, Watertight, Vibration protection
申请书
In combination with protective conduit:, SILVYN® FPAS
技术属性
一般信息
| Including lock nut |
|
| Including o-ring |
|
| Brand | SILVYN® |
| Product type | T-connector |
| Packaging type | Bag |
| Delivery Unit | 3.000 |
| Weight | 0.035 kg |
电气特性
产品设计
| Lockable (two-part) |
|
| Total length | 63 |
| Divisible fitting |
|
| Material body | Polyamide |
| EMC screening |
|
| Material body shortname | PA |
| For conduit outer diameter | 21 |
| Overall width | 99 |
| Colour | black |
| Inner diameter | 19 |
| Gland body material | Polyamide |
| Conduit gland design | T-piece |
| Cable gland body material, short form | PA |
| Bending protection |
|
| Clear width | 19 |
| Bending protection fixed installation |
|
| RAL colour | RAL 9005 |
| Flexibly installed bending protection |
|
| Borehole diameter | 6.2 |
| Rotatable thread |
|
| Sealing material | Polyester |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 68, IP 66, IP 67 |
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Oil-resistant |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Flame retardance according to | UL 94 V-2 |
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| cUR recognized |
|
| CSA certified |
|
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Product standard according to IEC | IEC 61386-23, IEC 61386-22, IEC 61386-1 |
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
