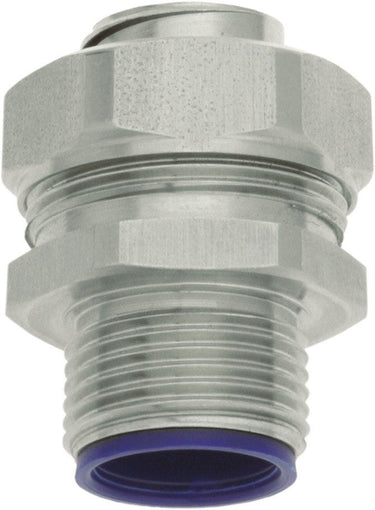

SILVYN® LCG-M 32X1.5
Conduit gland; M 32; Suitable for protective cable conduit size: 32; Halogenfree; UV-resistant; IP 65;
SILVYN® LCG-M 32X1.5
SGD 45.13
/
SILVYN® LCG-M 32X1.5
SGD 45.13
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
heat resistance
cold resistance
flame-retardant
halogen-free
oil resistant
uv-resistant.
Certificate
CE marked
福利
Especially for demanding environments with high requirements for mechanical and chemical stability
Allows protection class IP 65 due to the reliable sealing of the housing.
申请书
For secure attachment of a protective hose to the outer wall of a housing/application or to a holder
For use with SILVYN® protective conduits LCC-2 and LCCH-2
Withstands high chemical and mechanical stress
Suitable for outdoor use.
技术属性
一般信息
| Including lock nut |
|
| Product type | Conduit gland |
| Including o-ring |
|
| Brand | SILVYN® |
| Delivery Unit | 2.000 |
| Weight | 0.137 kg |
电气特性
产品设计
| Bending protection fixed installation |
|
| Total length | 30.8 |
| Suitable protective conduit | SILVYN® LCC-2, SILVYN® LCCH-2 |
| Thread type | Metric |
| Pitch of thread | 1,5 |
| EMC screening |
|
| Surface protection | Nickel-plated |
| Thread size | M 32 |
| Flexibly installed bending protection |
|
| Spanner size 1 | 42 |
| Screw-in sleeve material | Brass |
| Thread length | 15 |
| Gland body material | Brass |
| Conduit gland design | Straight |
| Suitable for protective cable conduit size | 32 |
| Cable gland body material, short form | CuZn |
| Thread standard | DIN EN 60423 |
| Sealing material, short form | PA |
| Bending protection |
|
| Spanner size 2 | 40 |
| Clear width | 26 |
| Sealing material | Polyamide |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 65 |
| Oil-resistant |
|
| Suitable for EX-applications |
|
| UV-resistant |
|
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| Ecolab certified |
|
| DNV-certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| GGVS certified |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
