SILVYN® CNP NPT 1/2'' 适用于 3/8''

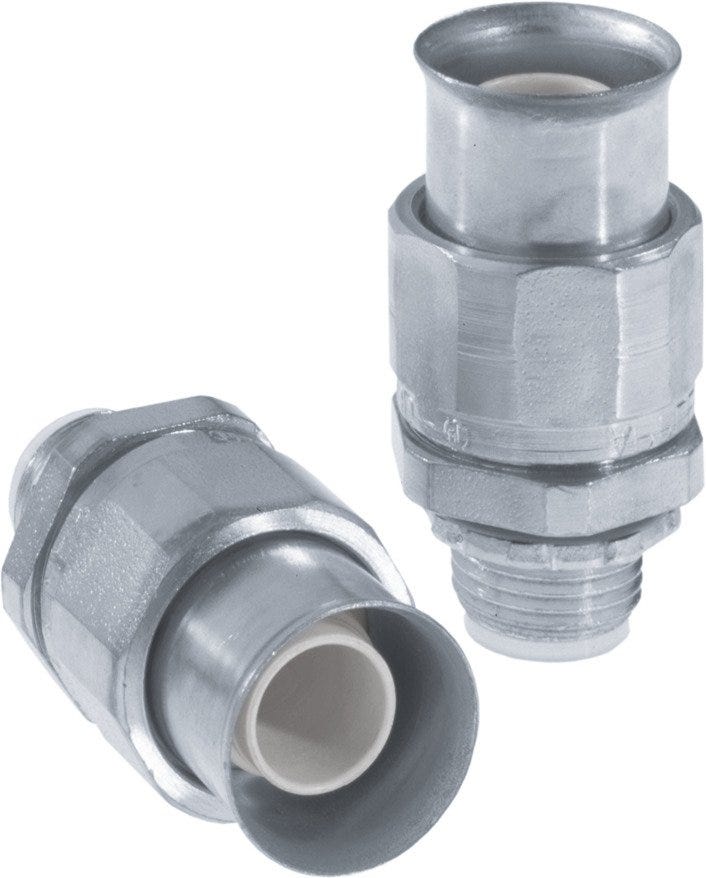

Conduit gland; NPT 1/2"; Suitable for protective cable conduit size: 3/8; Halogenfree; IP 67;
SILVYN® CNP NPT 1/2'' 适用于 3/8''
SGD 98.84
/
SILVYN® CNP NPT 1/2'' 适用于 3/8''
SGD 98.84
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
halogen-free
oil resistant
chemical resistance
acid resistance
Certificate
CE marked
UL listed
CSA certified
福利
Flame-retardant, High tensile strength, For high mechanical stress, High chemical-resistance
申请书
Robot-building, Mechanical engineering, Exporters, Vending machine construction
技术属性
一般信息
| Including lock nut |
|
| Including o-ring |
|
| Brand | SILVYN® |
| Product type | Conduit gland |
| Packaging type | Bag |
| Installation type | in threaded borehole |
| Delivery Unit | 1.000 |
| Weight | 0.03 kg |
电气特性
产品设计
| Total length | 55 |
| Divisible fitting |
|
| Suitable protective conduit | SILVYN® CNP |
| Thread type | NPT |
| EMC screening |
|
| Thread size | NPT 1/2" |
| For conduit outer diameter | 19.4 |
| Screw-in sleeve material | Polyamide |
| Gland body material | Steel |
| Conduit gland design | Straight |
| Suitable for protective cable conduit size | 3/8 |
| Spanner size | 27 |
| Bending protection |
|
| Bending protection fixed installation |
|
| Pitch of thread | 1,81 |
| Surface protection | Electrogalvanised |
| Flexibly installed bending protection |
|
| Rotatable thread |
|
| Sealing material | Polyamide |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 67 |
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Oil-resistant |
|
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from SILVYN® CNP NPT
