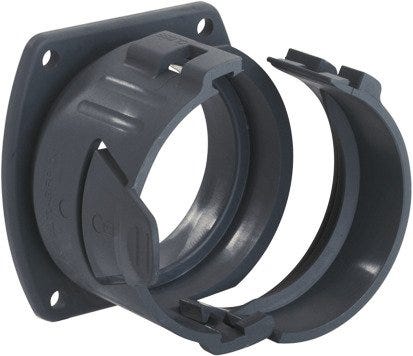

SILVYN® AFG-PA 70 BK
Conduit gland; Nominal size: 70; Suitable for protective cable conduit size: 70; Polyamide
SILVYN® AFG-PA 70 BK
SGD 46.65
/
SILVYN® AFG-PA 70 BK
SGD 46.65
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
halogen-free
oil resistant
chemical resistance
acid resistance
uv-resistant.
Certificate
CE marked
福利
Tear-resistant connection, Secure conduit insertion
申请书
In combination with protective conduit, SILVYN® MAXI PA, Mechanical engineering, Bundling and guiding of cables and wires
技术属性
一般信息
| Including lock nut |
|
| Product type | Conduit gland |
| Including o-ring |
|
| Brand | SILVYN® |
| Installation type | screw |
| Delivery Unit | 1.000 |
| Weight | 0.121 kg |
电气特性
产品设计
| Lockable (two-part) |
|
| Nominal size | 70 |
| Divisible fitting |
|
| Suitable protective conduit | SILVYN® MAXI PA |
| Material body | Polyamide |
| Protection against hot chips |
|
| Material body shortname | PA |
| Slit |
|
| Overall width | 96 |
| Colour | black |
| Rotatable thread |
|
| Conduit gland design | Flange |
| Total height | 94 |
| Suitable for protective cable conduit size | 70 |
产品特点
| Flame-retardant |
|
| Oil-resistant |
|
| Strain relief |
|
| Suitable for EX-applications |
|
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Flame retardance according to | UL 94 V-2 |
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| CE marked |
|
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
