SKINTOP® DIX-M 25 ASI 总线 DUO

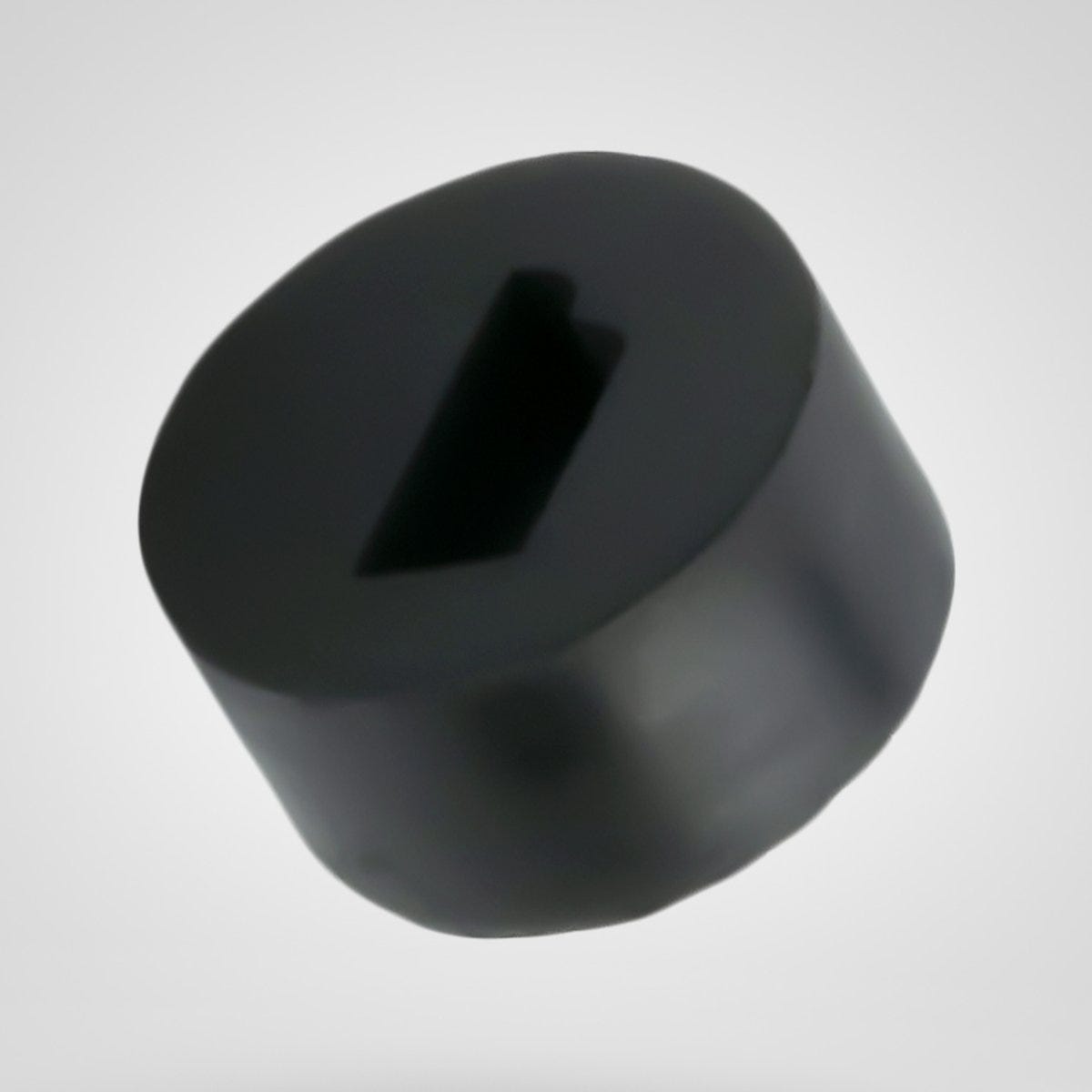

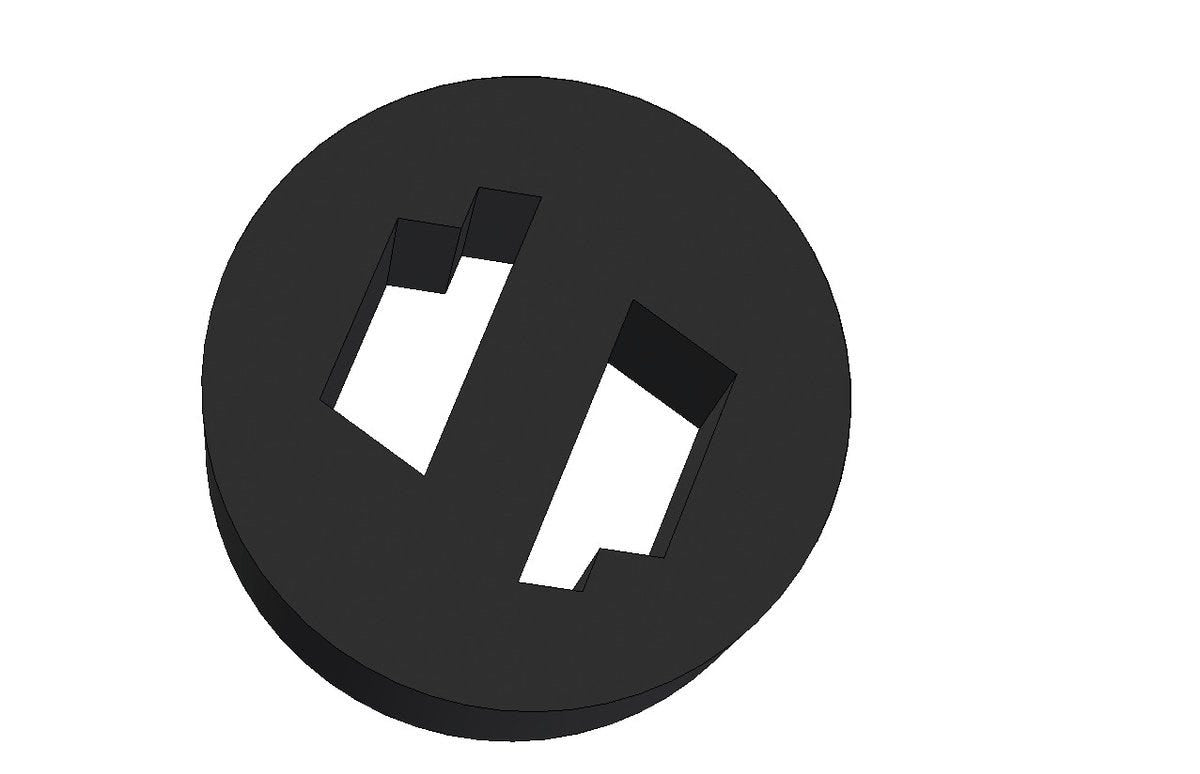

Multiple sealing insert; M 25; Number of cable entries: 2pc.; black
SKINTOP® DIX-M 25 ASI 总线 DUO
SGD 2.45
/
SKINTOP® DIX-M 25 ASI 总线 DUO
SGD 2.45
/
In stock (50)
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
halogen-free
oil resistant
chemical resistance
Certificate
CE marked
福利

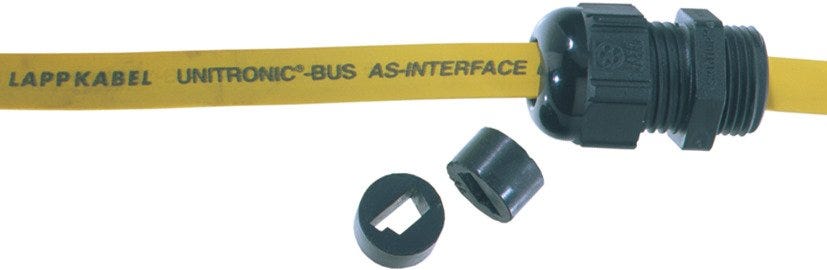

Special design with precisely fitting pre-drilled holes for easy insertion of AS-I bus cables
Protection class IP 68 can be achieved if the bores are optimally occupied
High functional reliability thanks to optimum strain relief.
申请书
For use with metric SKINTOP®/SKINTOP® CLICK cable glands
To be used instead of the standard sealing insert in the SKINTOP® cable gland
UV and oil-resistant material.
技术属性
一般信息
| Product type | Multiple sealing insert |
| Packaging type | Bag |
| Brand | SKINTOP® |
| Delivery Unit | 50.000 |
| Weight | 0.003 kg |
电气特性
产品设计
| Number of cable entries | 2 |
| EMC screening |
|
| Slit |
|
| Thread size | M 25 |
| Colour | black |
| Total height | 8.4 |
| Material | Acrylonitrile butadiene rubber |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 68 - 5 bar (30 min), IP 54 |
| Oil-resistant |
|
| Temperature (min.) | -40 |
| Suitable for EX-applications |
|
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Temperature (max.) | 100 |
| Halogenfree |
|
认证和标准
| Ecolab certified |
|
| CE marked |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
