SKINTOP® DIX ASI PG 11
Sealing insert; PG 11; Number of cable entries: 1pc.; black
SKINTOP® DIX ASI PG 11
SGD 2.06
/
SKINTOP® DIX ASI PG 11
SGD 2.06
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
halogen-free
oil resistant
chemical resistance
Certificate
CE marked
福利

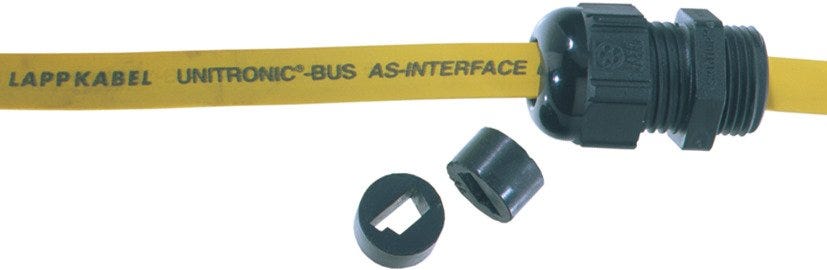

Special design with precise pre-boring for easy insertion of an AS-I bus cable
Protection class IP 68 can be achieved if the hole is optimally occupied
High functional reliability thanks to optimum strain relief.
申请书
For use with SKINTOP®/SKINTOP® CLICK cable glands that have a PG thread
To be used instead of the standard sealing insert in the SKINTOP® cable gland
UV and oil-resistant material.
技术属性
一般信息
| Product type | Sealing insert |
| Packaging type | Bag |
| Brand | SKINTOP® |
| Delivery Unit | 50.000 |
| Weight | 0.001 kg |
电气特性
产品设计
| Number of cable entries | 1 |
| EMC screening |
|
| Slit |
|
| Thread size | PG 11 |
| Colour | black |
| Total height | 8.5 |
| Material | Acrylonitrile butadiene rubber |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 68 - 5 bar (30 min), IP 54 |
| Oil-resistant |
|
| Temperature (min.) | -40 |
| Suitable for EX-applications |
|
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Temperature (max.) | 100 |
| Halogenfree |
|
认证和标准
| Ecolab certified |
|
| CE marked |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from SKINTOP® DIX-AUTOMATION AS-I
| Article number | Thread size | Borehole diameter | Imp bore diam | Number of cable entries | Delivery Unit |
|---|---|---|---|---|---|
| 53611000 | PG 11 | 1 | 50.000 |
