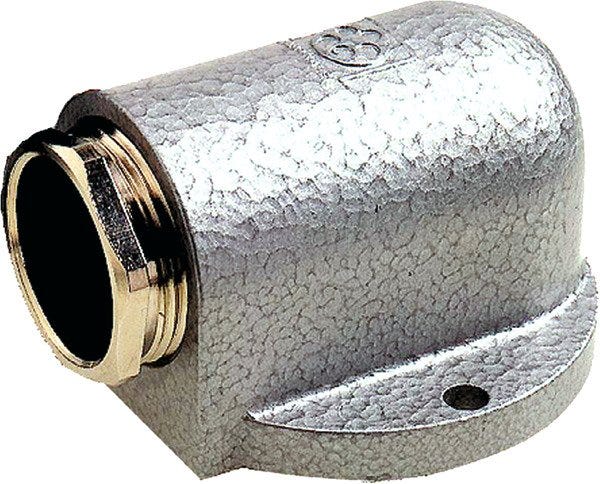

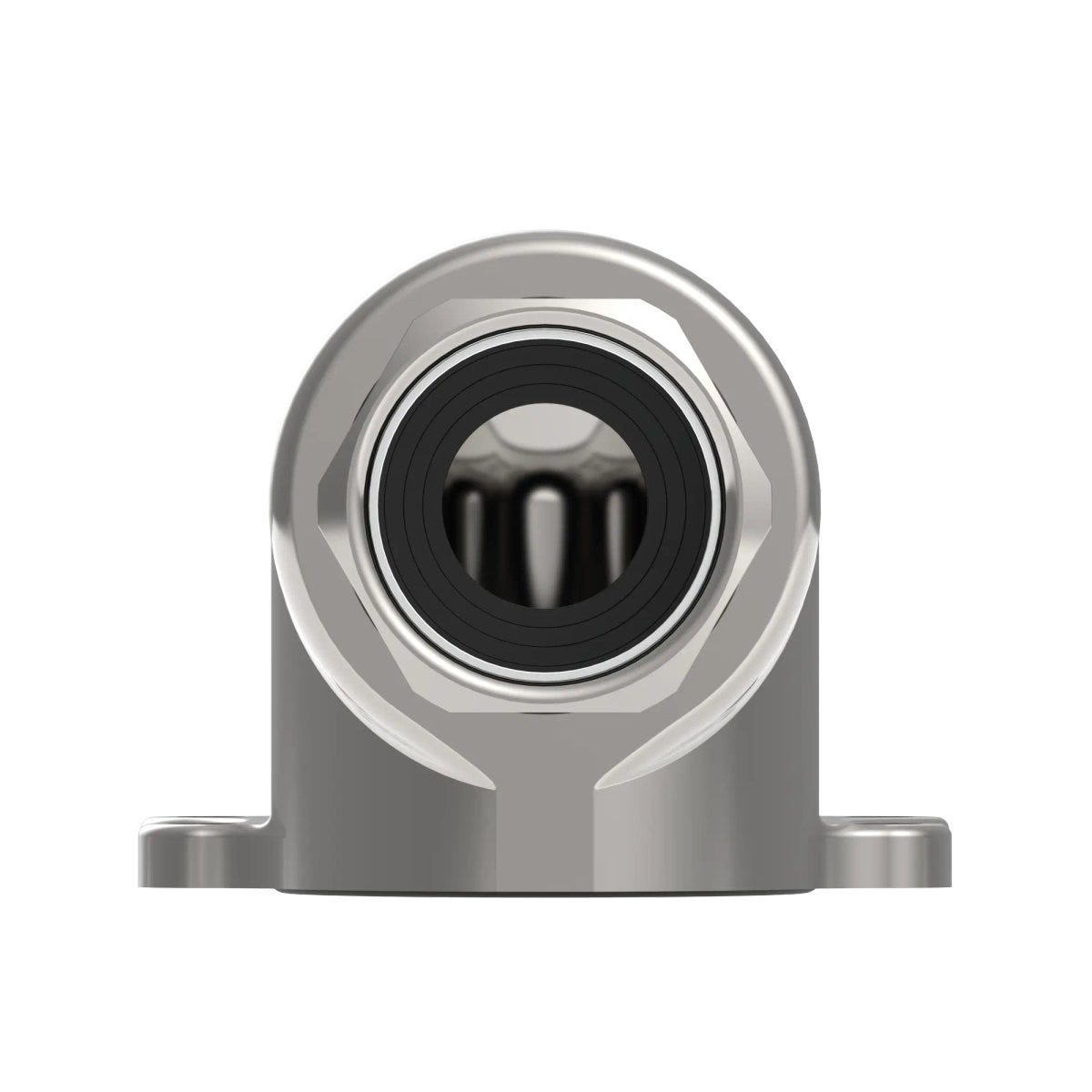

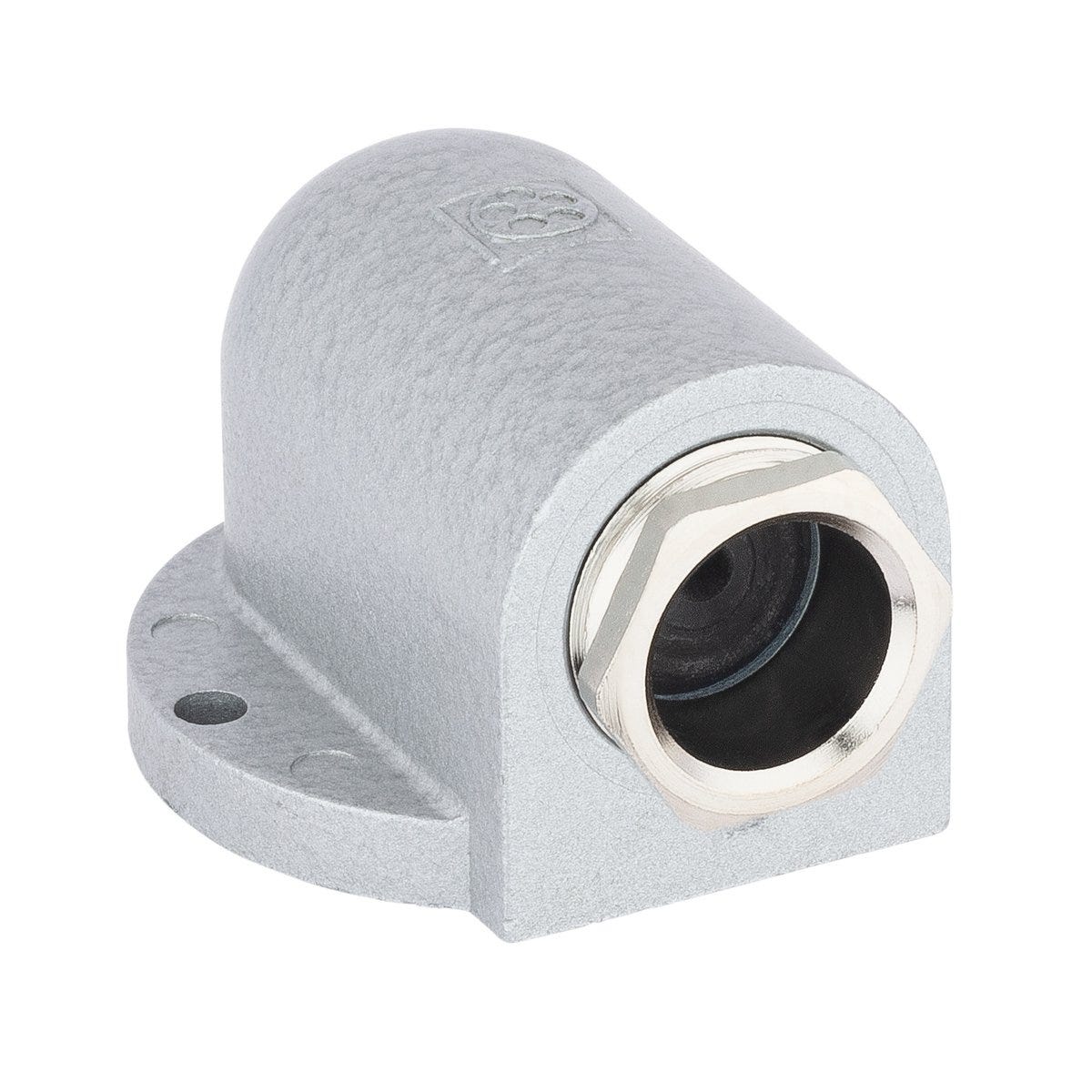

SKINDICHT® SE-M 32X1.5
Angled cable gland; M 32; Clamping range (min./max.): 16 - 25 mm; Zinc alloy Hammer tone finish; Flange; IP 55
SKINDICHT® SE-M 32X1.5
SGD 43.95
/
SKINDICHT® SE-M 32X1.5
SGD 43.95
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
oil resistant
uv-resistant.
Certificate
CE marked
福利
Sealed by incised sealing ring, Corrosion-resistant, Easy to install, Completely safe cable entry, Low overall height
申请书
For high mechanical stress, When no connection thread is provided
技术属性
一般信息
| Including lock nut |
|
| Including o-ring |
|
| Brand | SKINDICHT® |
| Product type | Angled cable gland |
| Scope of delivery | including O-ring |
| Packaging type | Bag |
| Installation type | in threaded borehole |
| Delivery Unit | 1.000 |
| Weight | 0.37 kg |
电气特性
产品设计
| Total length | 84.2 |
| Material body | Zinc alloy |
| Thread type | Metric |
| Cable gland design | Flange |
| thread-sided sealing element | O-ring |
| EMC screening |
|
| Cable-side sealing element | Incised sealing ring |
| Thread size | M 32 |
| Overall width | 66 |
| Colour | metal |
| Total height | 51.5 |
| Hexagon corner dimensions | 35.2 |
| Spanner size | 32 |
| Bending protection |
|
| O-ring material, short form | NBR |
| Max. clamping range | 25 |
| Seal type | Incised sealing ring |
| O-ring material | Acrylonitrile butadiene rubber |
| Glass-fibre reinforced |
|
| Pitch of thread | 1,5 |
| Surface protection | Hammer tone finish |
| Min. clamping range | 16 |
| For armoured cables |
|
| Sealing material, short form | CR |
| Sealing material | Chloroprene rubber |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 55 |
| UV-resistant |
|
| Temperature (max.) | 80 |
| Oil-resistant |
|
| Temperature (min.) | -20 |
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| GGVS certified |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| For Ex zone gas | without |
| For Ex-zone dust | without |
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from SKINDICHT® SE-M
