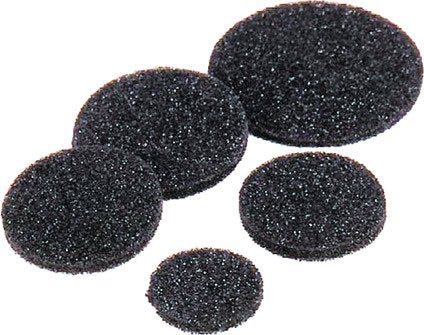

SKINTOP® SD PG 7
Dust protection; PG 7; black
SKINTOP® SD PG 7
SGD 0.07
/
SKINTOP® SD PG 7
SGD 0.07
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
福利
Prevents dust and dirt from getting into the housing
申请书
This dust protector can be placed under the cap nut of the cable gland, Preparations, Protection of unused connection points
技术属性
一般信息
| Product type | Dust protection |
| Packaging type | Bag |
| Brand | SKINTOP® |
| Delivery Unit | 500.000 |
| Weight | 0 kg |
电气特性
产品设计
| Colour | black |
| Total height | 2 |
| Material | PE foam |
| EMC screening |
|
| Slit |
|
| Thread size | PG 7 |
| Outer diameter | 10.5 |
产品特点
| Flame-retardant |
|
| Chemical resistant |
|
| Oil-resistant |
|
| UV-resistant |
|
| Temperature (max.) | 100 |
| Temperature (min.) | -70 |
| Suitable for EX-applications |
|
| Acid-resistant |
|
| Halogenfree |
|
认证和标准
| Ecolab certified |
|
| CE marked |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from SKINTOP® SD
| Article number | Thread size | Borehole diameter | Imp bore diam | Imp outer diam | Outer diameter | Number of cable entries | Delivery Unit |
|---|---|---|---|---|---|---|---|
| 52025235 | PG 7 | 10.5 | 500.000 | ||||
| 52025240 | PG 9 | 13.5 | 500.000 | ||||
| 52025250 | PG 11 | 17 | 250.000 | ||||
| 52025260 | PG 13,5 | 18.5 | 250.000 | ||||
| 52025270 | PG 16 | 20.5 | 250.000 | ||||
| 52025280 | PG 21 | 26 | 100.000 | ||||
| 52025290 | PG 29 | 34.5 | 100.000 | ||||
| 52025291 | PG 36 | 44.5 | 100.000 |
