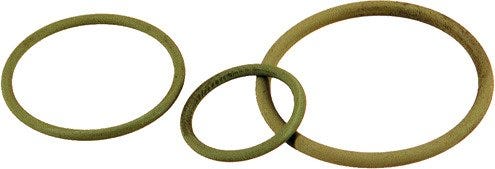

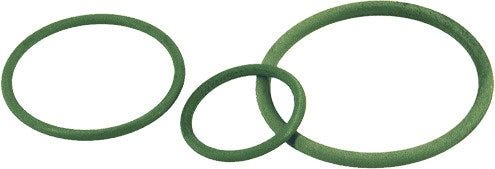

SKINDICHT® O-RING PG 16 (20X1.5) FKM
Sealing ring; PG 16; Inner diameter: 20mm; Outer diameter: 23mm; Fluorinated rubber; FKM; green
SKINDICHT® O-RING PG 16 (20X1.5) FKM
SGD 0.33
/
SKINDICHT® O-RING PG 16 (20X1.5) FKM
SGD 0.33
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
heat resistance
cold resistance
oil resistant
福利
For high temperatures, Resistant to oils, solvents, acids and chemicals
申请书
For a reliable sealing against foreign objects and liquids at the connecting thread of a gland or similar components.
技术属性
一般信息
| Product type | Sealing ring |
| Packaging type | Bag |
| Brand | SKINDICHT® |
| Delivery Unit | 50.000 |
| Weight | 0 kg |
电气特性
产品设计
| Colour | green |
| Seal type | O-ring |
| Inner diameter | 20 |
| Number of cable entries | 1 |
| Total height | 1.5 |
| Sealing material, short form | FKM |
| Thread size | PG 16 |
| Sealing material | Fluorinated rubber |
| Outer diameter | 23 |
产品特点
| Flame-retardant |
|
| Oil-resistant |
|
| UV-resistant |
|
| Temperature (max.) | 200 |
| Temperature (min.) | -20 |
| Suitable for EX-applications |
|
| Halogenfree |
|
认证和标准
| Ecolab certified |
|
| CE marked |
|
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from SKINDICHT® O-Ring FKM PG
| Article number | Thread size | Imp inner diam | Inner diameter | Imp outer diam | Outer diameter | Delivery Unit |
|---|---|---|---|---|---|---|
| 52023601 | PG 13,5 | 18 | 21 | 100.000 | ||
| 52023602 | PG 11 | 16 | 19 | 100.000 | ||
| 52023603 | PG 16 | 20 | 23 | 50.000 | ||
| 52023604 | PG 21 | 26 | 30 | 50.000 | ||
| 52023606 | PG 29 | 34 | 38 | 50.000 | ||
| 52023607 | PG 7 | 10 | 13 | 100.000 | ||
| 52023608 | PG 36 | 44 | 48 | 25.000 | ||
| 52023609 | PG 42 | 50 | 54 | 25.000 | ||
| 52023611 | PG 48 | 55 | 59 | 25.000 | ||
| 52122011 | PG 9 | 13 | 16 | 100.000 |
