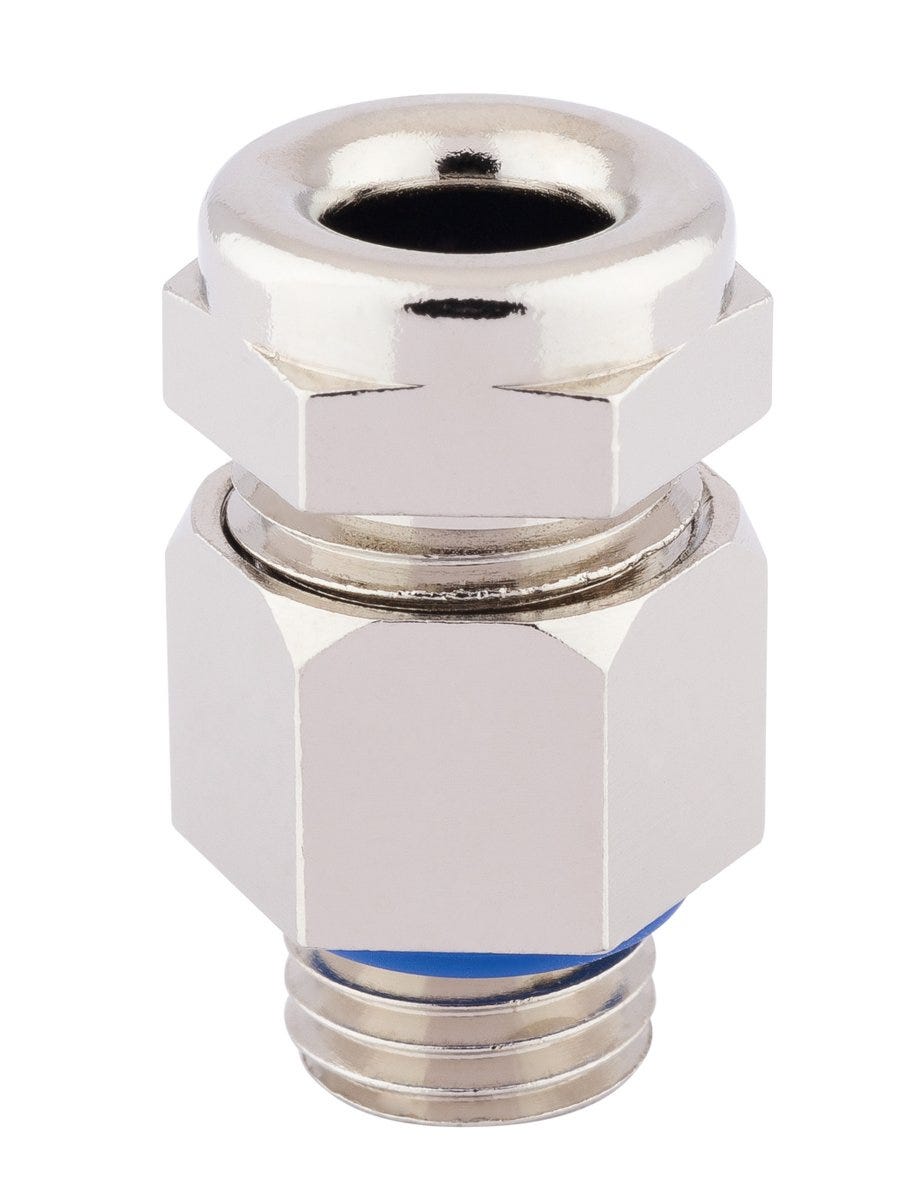

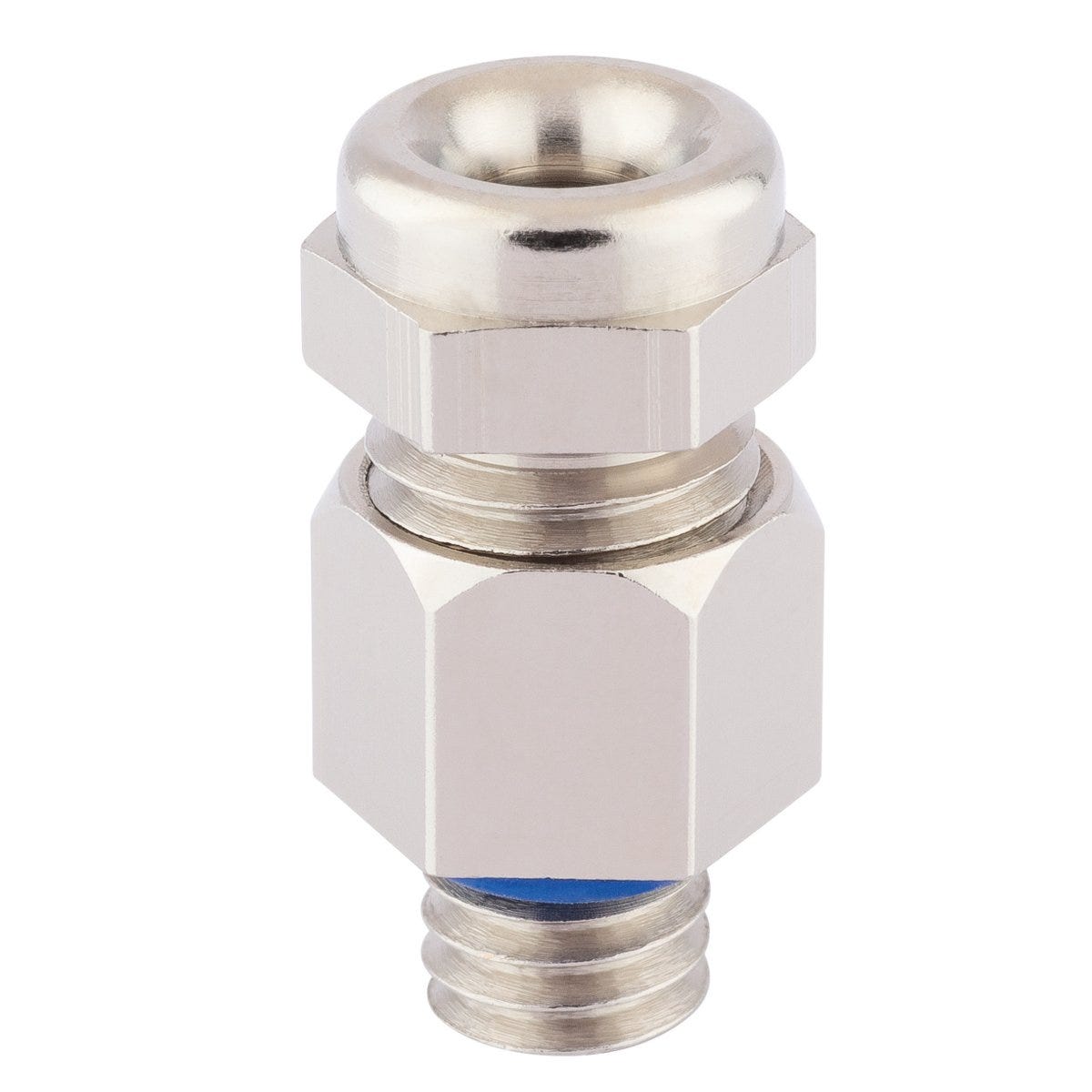

SKINDICHT® MINI M8X1 COLD
Cable gland; M 8; Clamping range (min./max.): 3.5 - 5.0 mm; Wrench width 1: 11; Brass Nickel-plated; Halogenfree; UV-resistant; IP 68 - 5 bar (30 min), IP 66;
SKINDICHT® MINI M8X1 COLD
SGD 5.40
/
SKINDICHT® MINI M8X1 COLD
SGD 5.40
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
halogen-free
oil resistant
uv-resistant.
Certificate
CE marked
福利

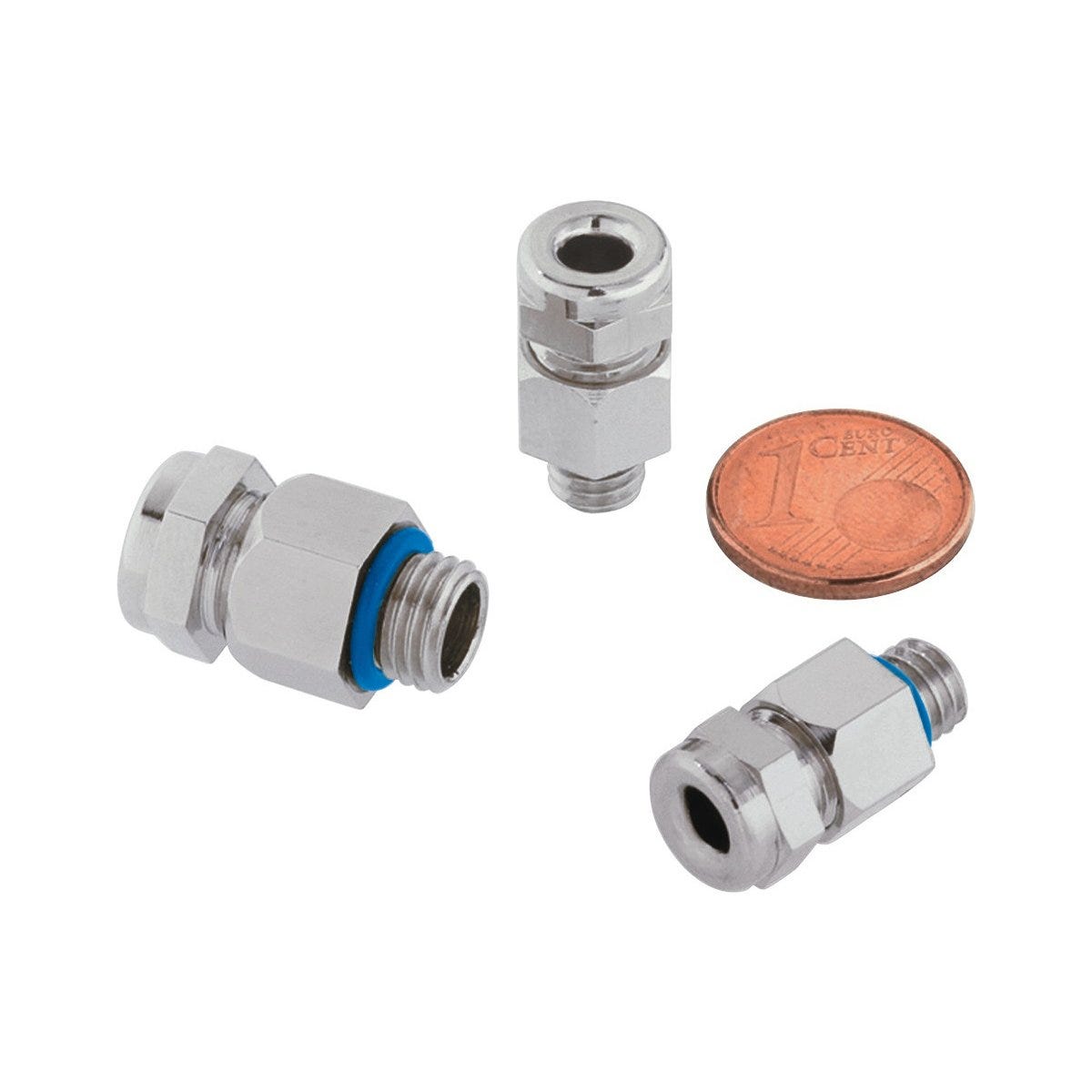

Its very small size makes it ideal for applications with limited space, to achieve a high packing density
Suitable for particularly thin cables with outer diameters from 2.0 to 7.0 mm
Thanks to silicone seal, extremely flexible at cold temperatures and suitable for use at extreme sub-zero temperatures (up to -60°C)
Gentle cable clamping due to high elasticity of the sealing insert material
The best possible sealing enables protection class IP 68 (5 bar).
申请书
For sealing and strain relieving cable insertion into a housing
Especially for areas with high demands on cold resistance. Typical areas of application are air-conditioning, frozen food systems and cold storage
Can be used in dry and damp environments
Withstands high mechanical stress
Suitable for outdoor use.
技术属性
一般信息
| Including lock nut |
|
| Including o-ring |
|
| Brand | SKINDICHT® |
| Product type | Cable gland |
| Scope of delivery | including O-ring |
| Packaging type | Bag |
| Installation type | in threaded borehole, screw |
| Delivery Unit | 50.000 |
| Weight | 0.008 kg |
电气特性
产品设计
| Total length | 21.5 |
| Number of cable entries | 1 |
| Material body | Brass |
| Thread type | Metric |
| Cable gland design | Straight |
| thread-sided sealing element | O-ring |
| EMC screening |
|
| Cable-side sealing element | Conduit sealing ring |
| Material body shortname | CuZn |
| Thread size | M 8 |
| Colour | metal |
| Thread length | 5.0 |
| Hexagon corner dimensions | 12.5 |
| Bending protection |
|
| Clear width | 5.5 |
| Max. clamping range | 5.0 |
| Seal type | Conduit sealing ring |
| O-ring material | Silicone |
| Glass-fibre reinforced |
|
| Pitch of thread | 1 |
| Surface protection | Nickel-plated |
| Spanner size 1 | 11 |
| Min. clamping range | 3.5 |
| For armoured cables |
|
| Spanner size 2 | 11 |
| Sealing material | Silicone |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 68 - 5 bar (30 min), IP 66 |
| Temperature static min. | -60 |
| UV-resistant |
|
| Temperature (max.) | 100 |
| Oil-resistant |
|
| Temperature (min.) | -60 |
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Temperature static max. | 100 |
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| For Ex zone gas | without |
| For Ex-zone dust | without |
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
