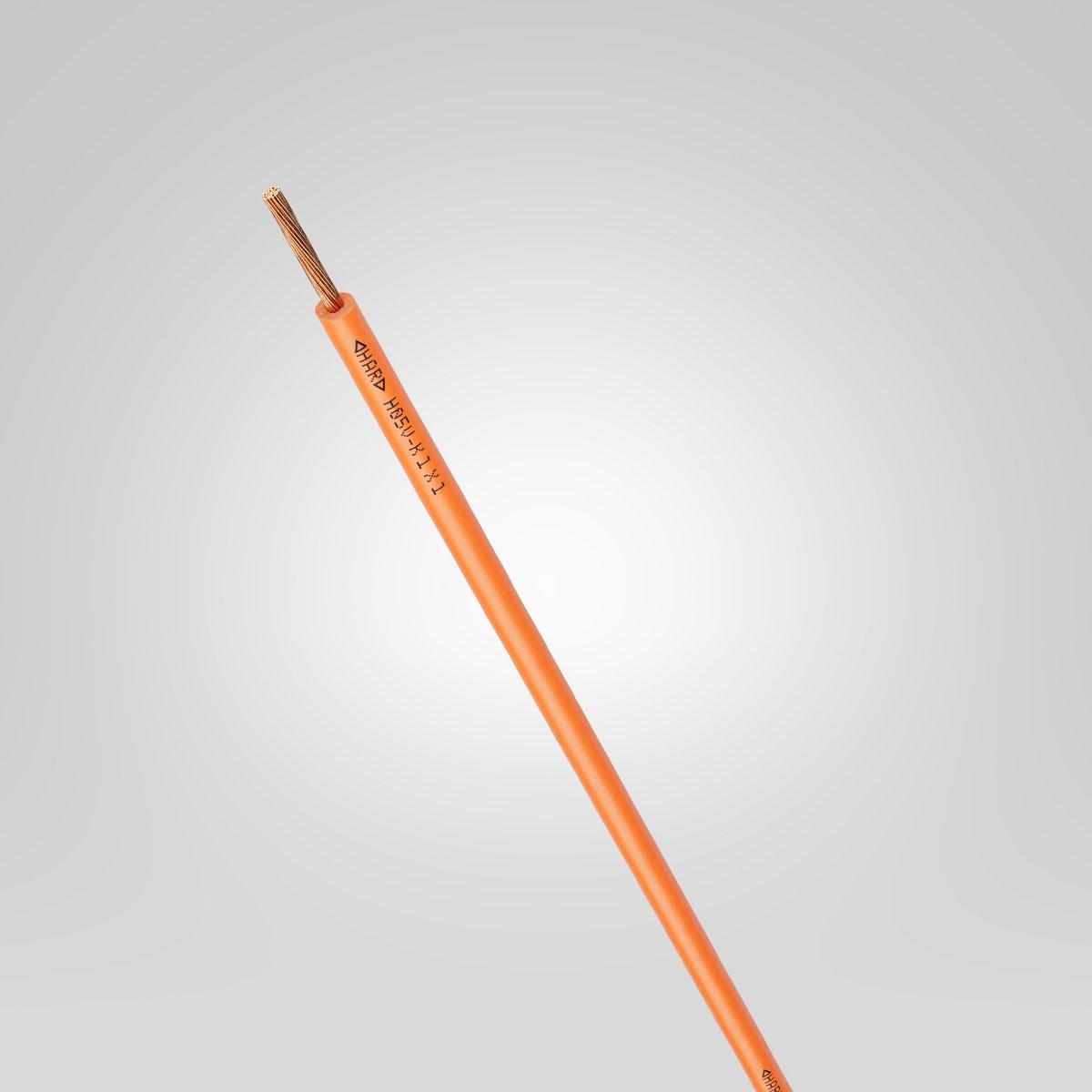

H05V-K 压花 1X0,5 OG

Single core; 1X0.5; orange; Large cardboard box; U0/U: 300/500 V; PVC; HAR-certified; Fixed installation
Primary ImagePrimary Image
Primary ImagePrimary Image
Secondary ImageSecondary Image
Primary Image
Primary Image
Secondary Image
LAPPSKU: 4511070KArticle No.#: 4511070K

H05V-K 压花 1X0,5 OG

Single core; 1X0.5; orange; Large cardboard box; U0/U: 300/500 V; PVC; HAR-certified; Fixed installation
Primary Image
H05V-K 压花 1X0,5 OG
SGD 0.21
付款与安全
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Union Pay
Visa

您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant flame-retardant
Product Carbon Footprint Product Carbon Footprint
Certificate
CE marked CE marked
Harmonisation marking Harmonisation marking
福利
Made in accordance with harmonised European design H05V-K, with ◁HAR▷ testing mark for proven reliability and quality
◁HAR▷-style cables are widely accepted and can be used in Europe
Ideal for automated cable assembly in large volumes
Also available in large disposable cardboard boxes
Different core insulation colours available
Embossed cable for individual, permanent reprinting
Also available as ring or on coils
Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.
申请书
For wiring circuits inside machines
For wiring lighting
Suitable for use in AC and DC charging infrastructures for electromobility
For fixed and protected installation
Can be used for open installation into cable conduits for equipotential bonding
Suitable for use at temperatures up to -40°C.

技术属性

一般信息
Product type Single core
Length per PU 3000
Single core packaging type Large cardboard box
Copper index 4.800  kg/km
Copper index (lb) 32.250  lb
Weight 9 kg/km
电气特性
Nominal voltage U0/U: 300/500 V AC rms according to IEC
Max. conductor resistance at 20°C 39  Ω/km
Test voltage 2  kV
Current rating according to VDE 0298-4
产品设计
Shape of cable Round
Single core colour orange

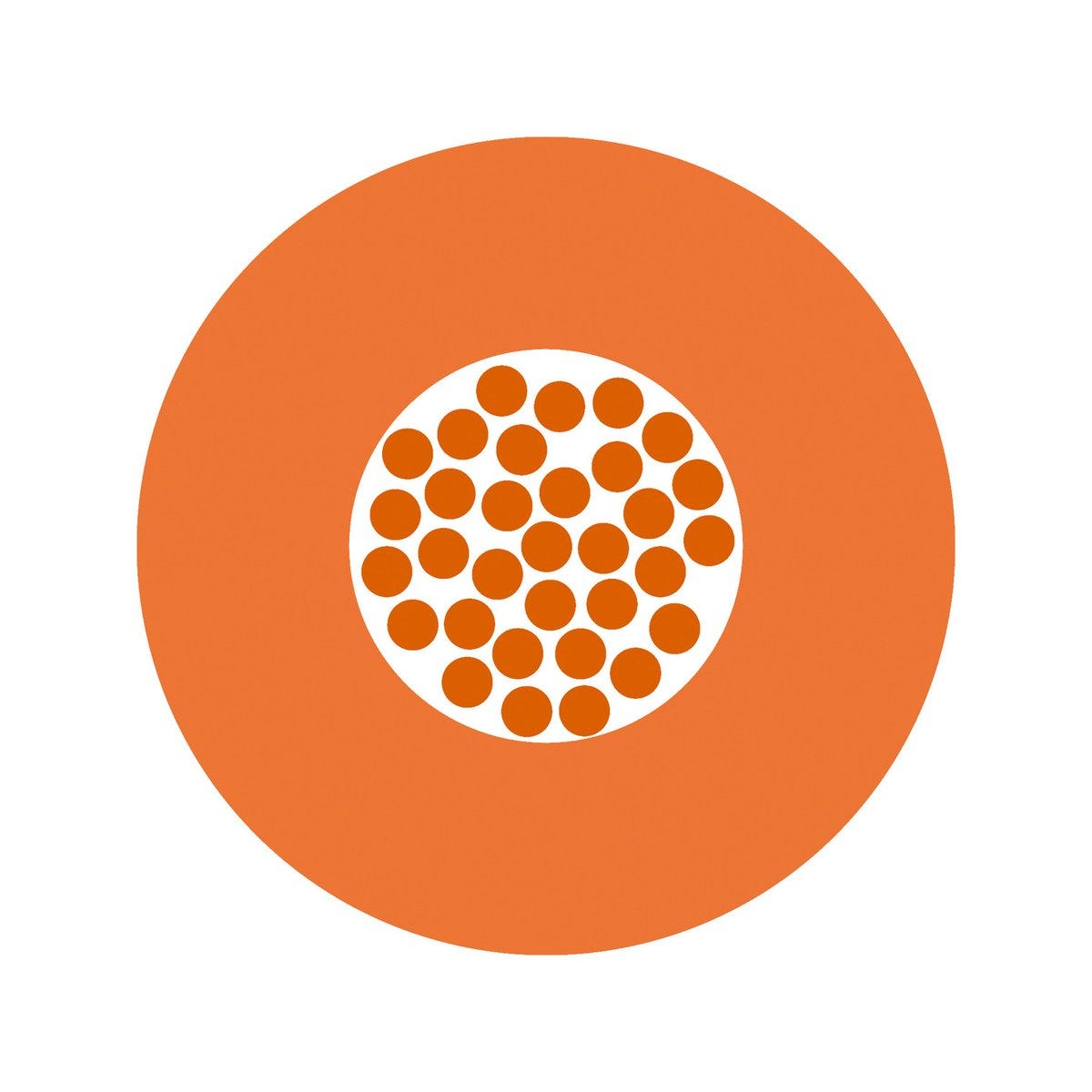

Conductor design IEC 60228 class 5: fine-wire
Conductor material Bare copper
Harmonised design H05V-K
Min. outer diameter 2.1
Number of cores 1
Nominal conductor cross-section (metric) 0.5  mm²
Cable dimension 1X0.5
Core insulation basic material Polyvinylchloride
Single core identification Single-coloured
Core insulation basic material, short form PVC
Max. outer diameter 2.5
产品特点
Flame-retardant

Application area Fixed installation
Oil-resistant

Max. storage temperature 40
Minimum bending radius with careful bending 2 x outer diameter
Max. assembly temperature 70
Storage temperature min. 5
weather resistant

Ozone resistant

Installation temperature min. 5
UV-resistant

Minimum bending radius, stationary 4 x outer diameter
Temperature, fixed installation -40 °C to 70 °C max. conductor temperature:
Flame retardance according to IEC 60332-1-2
Minimum bending radius in mm, fixed installation 10.0  mm
Halogenfree

认证和标准
HAR-certified

Flame retardance tested according to UN/ECE-R118

Product standard DIN / EN EN 50525-2-31
CE marked

CPR fire class Eca
VDE certified

EAC certification number ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.АЮ64.В.00142/20
EAC-certified

文档
Downloads
Datasheet - de-DE (PDF)
Datasheet - en-UK (PDF)
trcu declaration of conformity - ru-RU (PDF)
Further Links
EPLAN Data in EPLAN Data Portal
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Trade product, not a LAPP product.
产品系列列表
All articles from H05V-K HAR
Article number Conductor cross-section (mm2) Single core colour Single core packaging type Imp length per pu Length per PU Imp outer dia cable sheath min Min. outer diameter Imp outer diam cable sheath max Max. outer diameter Copper index calc export Weight
4510001 0.5 green/yellow Ring 100 2.1 2.5 9 kg/km
4510001K 0.5 green/yellow Large cardboard box 3000 2.1 2.5 9 kg/km
4510001S 0.5 green/yellow Spool 250 2.1 2.5 9 kg/km
4510002 0.75 green/yellow Ring 100 2.2 2.7 12 kg/km
4510002K 0.75 green/yellow Large cardboard box 2500 2.2 2.7 12 kg/km
4510002S 0.75 green/yellow Spool 250 2.2 2.7 12 kg/km
4510002X 0.75 green/yellow Ring 500 2.2 2.7 12 kg/km
4510003 1 green/yellow Ring 100 2.4 2.8 15 kg/km
4510003K 1 green/yellow Large cardboard box 2000 2.4 2.8 15 kg/km
4510003S 1 green/yellow Spool 250 2.4 2.8 15 kg/km
4510003X 1 green/yellow Ring 400 2.4 2.8 15 kg/km
4510011 0.5 black Ring 100 2.1 2.5 9 kg/km
4510011K 0.5 black Large cardboard box 3000 2.1 2.5 9 kg/km
4510011S 0.5 black Spool 250 2.1 2.5 9 kg/km
4510011X 0.5 black Ring 600 2.1 2.5 9 kg/km
4510012 0.75 black Ring 100 2.2 2.7 12 kg/km
4510012K 0.75 black Large cardboard box 2500 2.2 2.7 12 kg/km
4510012S 0.75 black Spool 250 2.2 2.7 12 kg/km
4510012X 0.75 black Ring 500 2.2 2.7 12 kg/km
4510013 1 black Ring 100 2.4 2.8 15 kg/km
4510013E 1 black Large cardboard box 6000 2.4 2.8 15 kg/km
4510013K 1 black Large cardboard box 2000 2.4 2.8 15 kg/km
4510013S 1 black Spool 250 2.4 2.8 15 kg/km
4510013X 1 black Ring 400 2.4 2.8 15 kg/km
4510021 0.5 blue Ring 100 2.1 2.5 9 kg/km
4510021E 0.5 blue Large cardboard box 9000 2.1 2.5 9 kg/km
4510021K 0.5 blue Large cardboard box 3000 2.1 2.5 9 kg/km
4510021S 0.5 blue Spool 250 2.1 2.5 9 kg/km
4510021X 0.5 blue Ring 500 2.1 2.5 9 kg/km
4510022 0.75 blue Ring 100 2.2 2.7 12 kg/km
4510022E 0.75 blue Large cardboard box 7500 2.2 2.7 12 kg/km
4510022K 0.75 blue Large cardboard box 2500 2.2 2.7 12 kg/km
4510022S 0.75 blue Spool 250 2.2 2.7 12 kg/km
4510022X 0.75 blue Ring 500 2.2 2.7 12 kg/km
4510023 1 blue Ring 100 2.4 2.8 15 kg/km
4510023E 1 blue Large cardboard box 6000 2.4 2.8 15 kg/km
4510023K 1 blue Large cardboard box 2000 2.4 2.8 15 kg/km
4510023S 1 blue Spool 250 2.4 2.8 15 kg/km
4510023X 1 blue Ring 400 2.4 2.8 15 kg/km
4510031 0.5 brown Ring 100 2.1 2.5 9 kg/km
4510031S 0.5 brown Spool 250 2.1 2.5 9 kg/km
4510032 0.75 brown Ring 100 2.2 2.7 12 kg/km
4510032K 0.75 brown Large cardboard box 2500 2.2 2.7 12 kg/km
4510032S 0.75 brown Spool 250 2.2 2.7 12 kg/km
4510033 1 brown Ring 100 2.4 2.8 15 kg/km
4510033K 1 brown Large cardboard box 2000 2.4 2.8 15 kg/km
4510033S 1 brown Spool 250 2.4 2.8 15 kg/km
4510033X 1 brown Ring 400 2.4 2.8 15 kg/km
4510041 0.5 red Ring 100 2.1 2.5 9 kg/km
4510041S 0.5 red Spool 250 2.1 2.5 9 kg/km
4510041X 0.5 red Ring 500 2.1 2.5 9 kg/km
4510042 0.75 red Ring 100 2.2 2.7 12 kg/km
4510042E 0.75 red Large cardboard box 7500 2.2 2.7 12 kg/km
4510042K 0.75 red Large cardboard box 2500 2.2 2.7 12 kg/km
4510042S 0.75 red Spool 250 2.2 2.7 12 kg/km
4510042X 0.75 red Ring 500 2.2 2.7 12 kg/km
4510043 1 red Ring 100 2.4 2.8 15 kg/km
4510043E 1 red Large cardboard box 6000 2.4 2.8 15 kg/km
4510043K 1 red Large cardboard box 2000 2.4 2.8 15 kg/km
4510043S 1 red Spool 250 2.4 2.8 15 kg/km
4510043X 1 red Ring 400 2.4 2.8 15 kg/km
4510051 0.5 white Ring 100 2.1 2.5 9 kg/km
4510051S 0.5 white Spool 250 2.1 2.5 9 kg/km
4510051X 0.5 white Ring 600 2.1 2.5 9 kg/km
4510052 0.75 white Ring 100 2.2 2.7 12 kg/km
4510052K 0.75 white Large cardboard box 2500 2.2 2.7 12 kg/km
4510052S 0.75 white Spool 250 2.2 2.7 12 kg/km
4510052X 0.75 white Ring 500 2.2 2.7 12 kg/km
4510053 1 white Ring 100 2.4 2.8 15 kg/km
4510053K 1 white Large cardboard box 2000 2.4 2.8 15 kg/km
4510053S 1 white Spool 250 2.4 2.8 15 kg/km
4510053X 1 white Ring 400 2.4 2.8 15 kg/km
4510061 0.5 grey Ring 100 2.1 2.5 9 kg/km
4510061S 0.5 grey Spool 250 2.1 2.5 9 kg/km
4510061X 0.5 grey Ring 500 2.1 2.5 9 kg/km
4510062 0.75 grey Ring 100 2.2 2.7 12 kg/km
4510062K 0.75 grey Large cardboard box 2500 2.2 2.7 12 kg/km
4510062S 0.75 grey Spool 250 2.2 2.7 12 kg/km
4510062X 0.75 grey Ring 500 2.2 2.7 12 kg/km
4510063 1 grey Ring 100 2.4 2.8 15 kg/km
4510063K 1 grey Large cardboard box 2000 2.4 2.8 15 kg/km
4510063S 1 grey Spool 250 2.4 2.8 15 kg/km
4510063X 1 grey Ring 400 2.4 2.8 15 kg/km
4510071 0.5 violet Ring 100 2.1 2.5 9 kg/km
4510071S 0.5 violet Spool 250 2.1 2.5 9 kg/km
4510072 0.75 violet Ring 100 2.2 2.7 12 kg/km
4510072K 0.75 violet Large cardboard box 2500 2.2 2.7 12 kg/km
4510072S 0.75 violet Spool 250 2.2 2.7 12 kg/km
4510072X 0.75 violet Ring 500 2.2 2.7 12 kg/km
4510073 1 violet Ring 100 2.4 2.8 15 kg/km
4510073K 1 violet Large cardboard box 2000 2.4 2.8 15 kg/km
4510073S 1 violet Spool 250 2.4 2.8 15 kg/km
4510081 0.5 pink Ring 100 2.1 2.5 9 kg/km
4510081S 0.5 pink Spool 250 2.1 2.5 9 kg/km
4510082 0.75 pink Ring 100 2.2 2.7 12 kg/km
4510082K 0.75 pink Large cardboard box 2500 2.2 2.7 12 kg/km
4510082S 0.75 pink Spool 250 2.2 2.7 12 kg/km
4510083 1 pink Ring 100 2.4 2.8 15 kg/km
4510083K 1 pink Large cardboard box 2000 2.4 2.8 15 kg/km
4510083S 1 pink Spool 250 2.4 2.8 15 kg/km
4510091 0.5 orange Ring 100 2.1 2.5 9 kg/km
4510091S 0.5 orange Spool 250 2.1 2.5 9 kg/km
4510092 0.75 orange Ring 100 2.2 2.7 12 kg/km
4510092K 0.75 orange Large cardboard box 2500 2.2 2.7 12 kg/km
4510092S 0.75 orange Spool 250 2.2 2.7 12 kg/km
4510092X 0.75 orange Ring 500 2.2 2.7 12 kg/km
4510093 1 orange Ring 100 2.4 2.8 15 kg/km
4510093K 1 orange Large cardboard box 2000 2.4 2.8 15 kg/km
4510093S 1 orange Spool 250 2.4 2.8 15 kg/km
4510093X 1 orange Ring 400 2.4 2.8 15 kg/km
4510101S 0.5 transparent Spool 250 2.1 2.5 9 kg/km
4510102S 0.75 transparent Spool 250 2.2 2.7 12 kg/km
4510103S 1 transparent Spool 250 2.4 2.8 16 kg/km
4510111 0.5 yellow Ring 100 2.1 2.5 9 kg/km
4510111S 0.5 yellow Spool 250 2.1 2.5 9 kg/km
4510112 0.75 yellow Ring 100 2.2 2.7 12 kg/km
4510112K 0.75 yellow Large cardboard box 2500 2.2 2.7 12 kg/km
4510112S 0.75 yellow Spool 250 2.2 2.7 12 kg/km
4510113 1 yellow Ring 100 2.4 2.8 15 kg/km
4510113K 1 yellow Large cardboard box 2000 2.4 2.8 15 kg/km
4510113S 1 yellow Spool 250 2.4 2.8 15 kg/km
4510121 0.5 green Ring 100 2.1 2.5 9 kg/km
4510121S 0.5 green Spool 250 2.1 2.5 9 kg/km
4510122 0.75 green Ring 100 2.2 2.7 12 kg/km
4510122K 0.75 green Large cardboard box 2500 2.2 2.7 12 kg/km
4510122S 0.75 green Spool 250 2.2 2.7 12 kg/km
4510123 1 green Ring 100 2.4 2.8 15 kg/km
4510123S 1 green Spool 250 2.4 2.8 15 kg/km
4510141 0.5 dark blue Ring 100 2.1 2.5 9 kg/km
4510141S 0.5 dark blue Spool 250 2.1 2.5 9 kg/km
4510141X 0.5 dark blue Ring 600 2.1 2.5 9 kg/km
4510142 0.75 dark blue Ring 100 2.2 2.7 12 kg/km
4510142K 0.75 dark blue Large cardboard box 2500 2.2 2.7 12 kg/km
4510142S 0.75 dark blue Spool 250 2.2 2.7 12 kg/km
4510142X 0.75 dark blue Ring 500 2.2 2.7 12 kg/km
4510143 1 dark blue Ring 100 2.4 2.8 15 kg/km
4510143K 1 dark blue Large cardboard box 2000 2.4 2.8 15 kg/km
4510143S 1 dark blue Spool 250 2.4 2.8 15 kg/km
4510143X 1 dark blue Ring 400 2.4 2.8 15 kg/km
4510161 0.5 ultramarine blue Ring 100 2.1 2.5 9 kg/km
4510161K 0.5 ultramarine blue Large cardboard box 3000 2.1 2.5 9 kg/km
4510162 0.75 ultramarine blue Ring 100 2.2 2.7 12 kg/km
4510162K 0.75 ultramarine blue Large cardboard box 2500 2.2 2.7 12 kg/km
4510162S 0.75 ultramarine blue Spool 250 2.2 2.7 12 kg/km
4510163 1 ultramarine blue Ring 100 2.4 2.8 15 kg/km
4510163K 1 ultramarine blue Large cardboard box 2000 2.4 2.8 15 kg/km
4510163S 1 ultramarine blue Spool 250 2.4 2.8 15 kg/km
4510262K 0.75 blue/white Large cardboard box 2500 2.2 2.7 12 kg/km
4510263K 1 blue/white Large cardboard box 2000 2.4 2.8 15 kg/km
4510921 0.5 dark blue/white Ring 100 2.1 2.5 9 kg/km
4510921K 0.5 dark blue/white Large cardboard box 3000 2.1 2.5 9 kg/km
4510922 0.75 dark blue/white Ring 100 2.2 2.7 12 kg/km
4510922K 0.75 dark blue/white Large cardboard box 2500 2.2 2.7 12 kg/km
4510923 1 dark blue/white Ring 100 2.4 2.8 15 kg/km
4510923K 1 dark blue/white Large cardboard box 2000 2.4 2.8 15 kg/km
4511060E 0.5 dark blue Large cardboard box 9000 2.1 2.5 9 kg/km
4511061E 0.75 dark blue Large cardboard box 7500 2.2 2.7 12 kg/km
4511062E 1 dark blue Large cardboard box 6000 2.4 2.8 15 kg/km
4511064K 0.5 dark blue Large cardboard box 3000 2.1 2.5 9 kg/km
4511065K 0.5 brown Large cardboard box 3000 2.1 2.5 9 kg/km
4511068K 0.5 violet Large cardboard box 3000 2.1 2.5 9 kg/km
4511070K 0.5 orange Large cardboard box 3000 2.1 2.5 9 kg/km
4511071K 0.5 red Large cardboard box 3000 2.1 2.5 9 kg/km
4511072K 0.5 white Large cardboard box 3000 2.1 2.5 9 kg/km
4511073K 0.5 grey Large cardboard box 3000 2.1 2.5 9 kg/km
