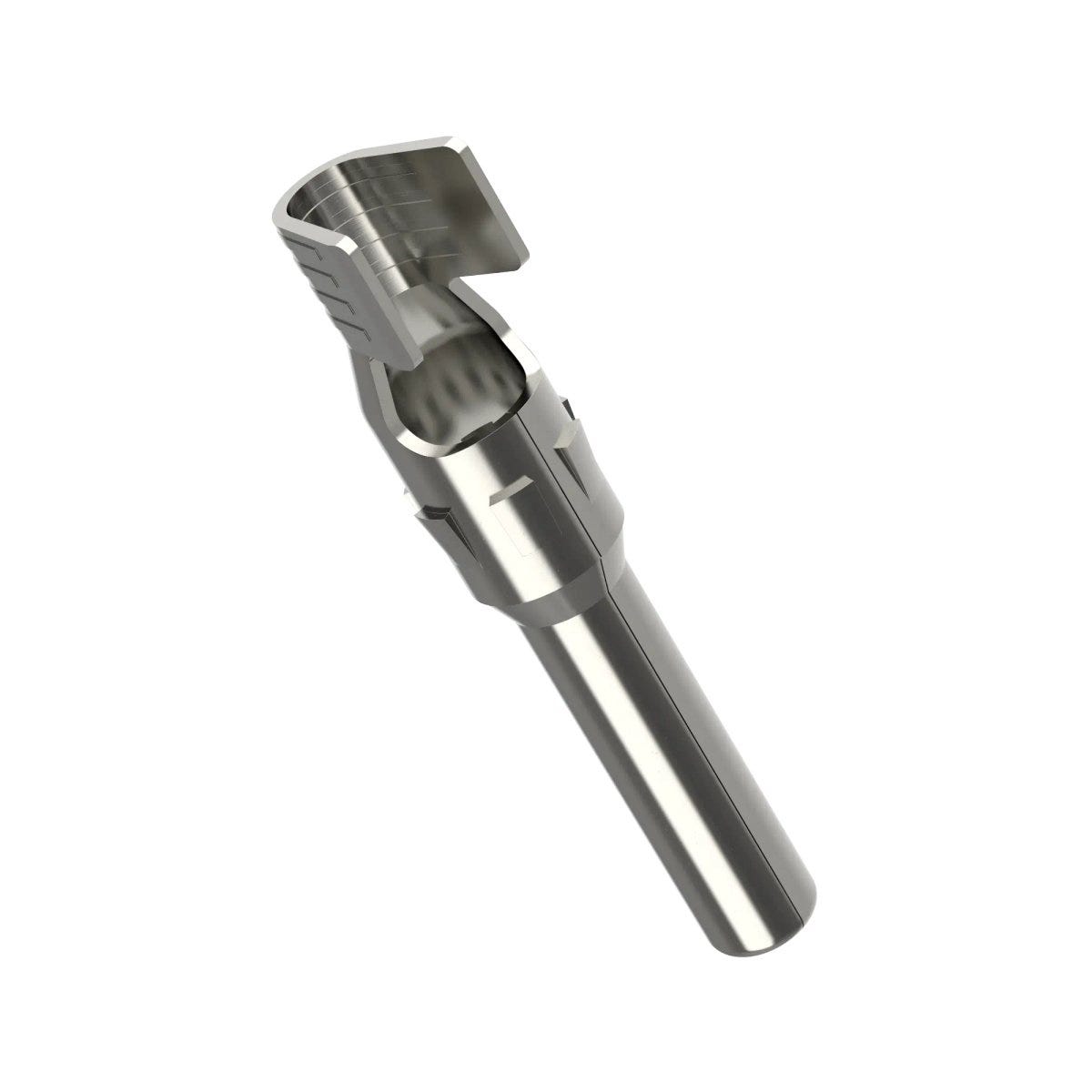

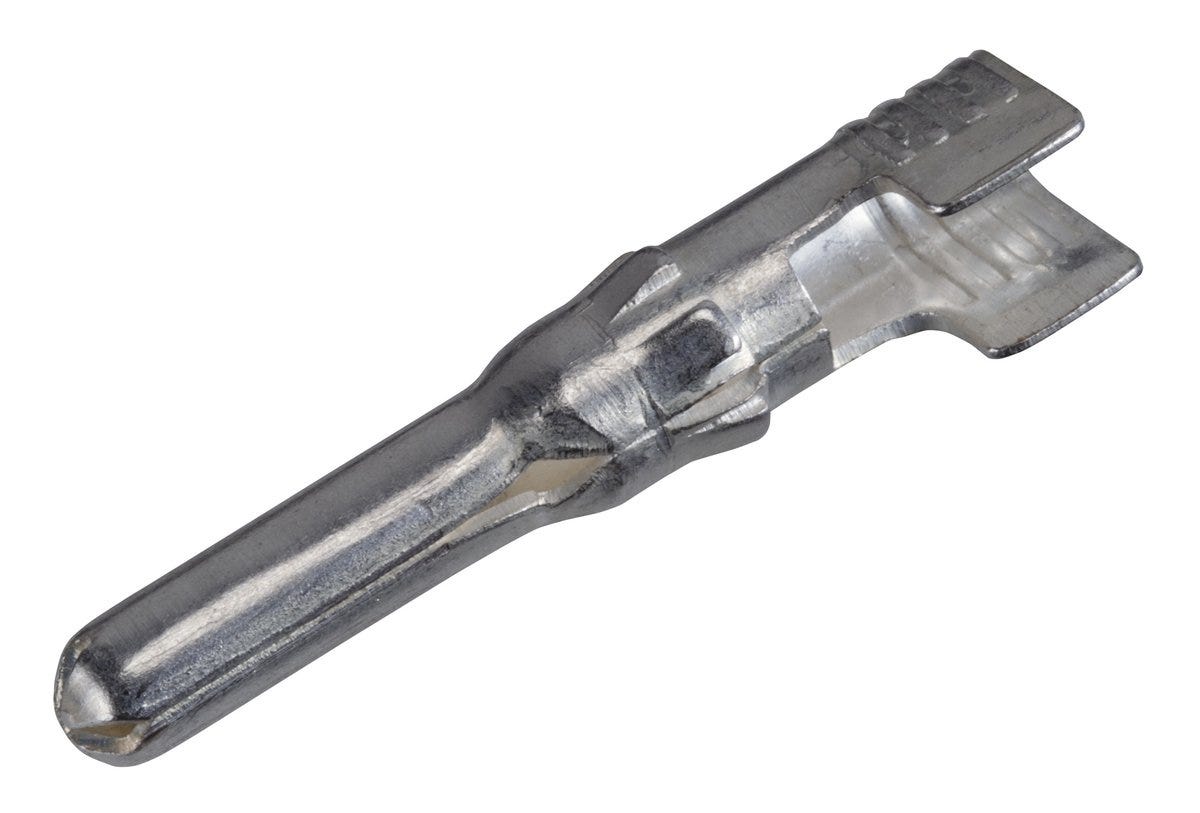

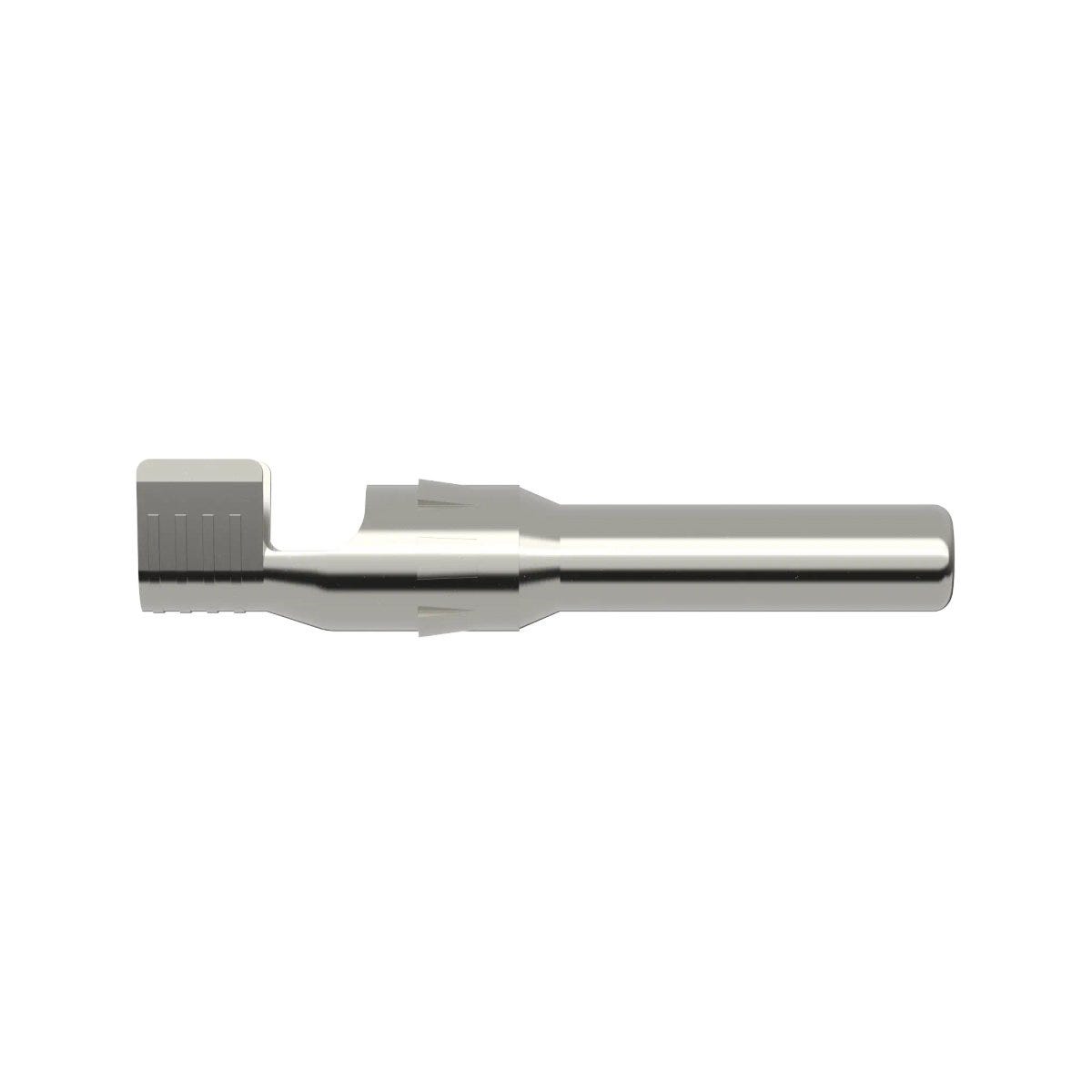

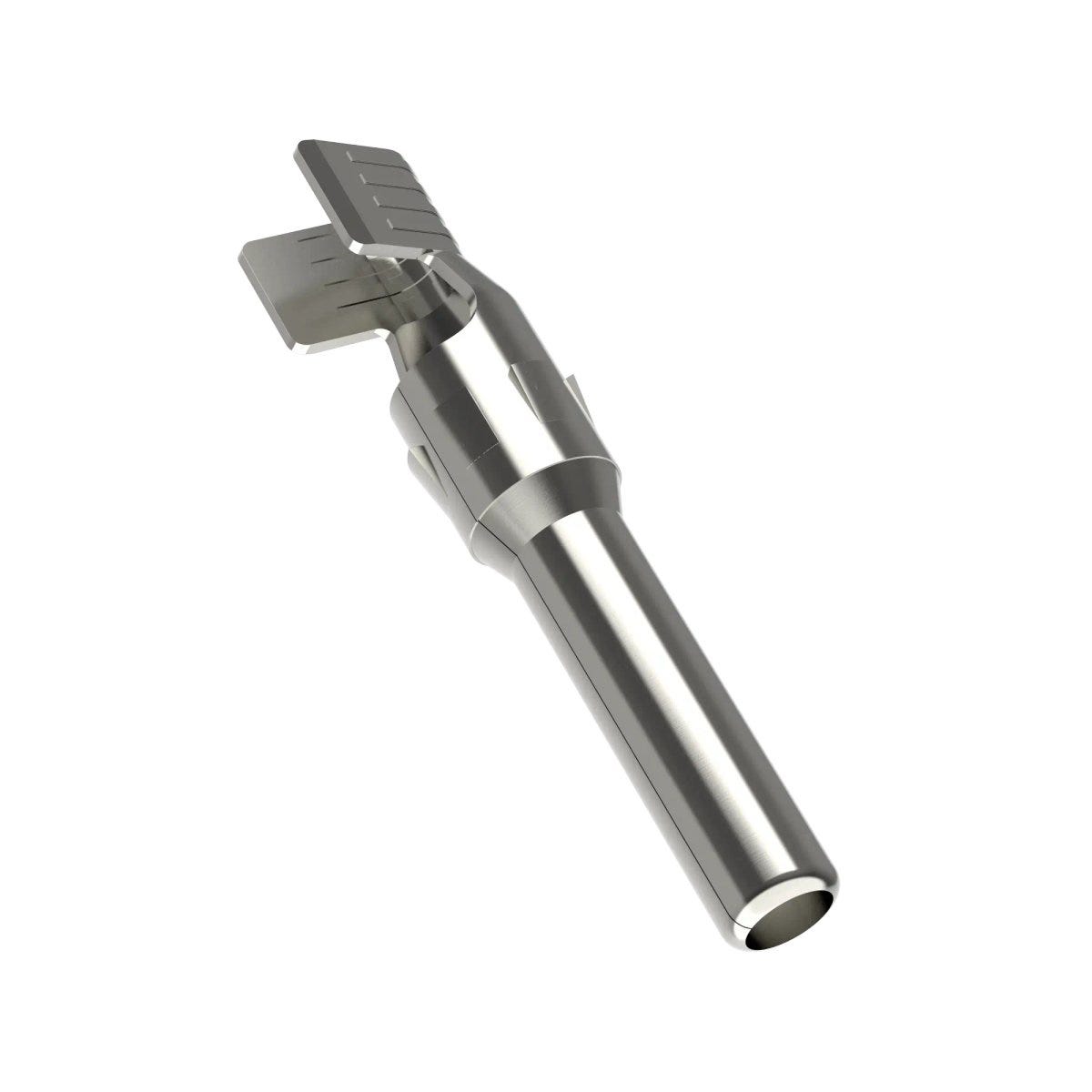

EPIC® SOLAR 4PLUS PIN M 4...6
Contact, Pin; Crimp termination; For cross-section (min./max.): 4mm² - 6mm²; Material contact: Brass Tin-plated
EPIC® SOLAR 4PLUS PIN M 4...6
SGD 0.46
/
EPIC® SOLAR 4PLUS PIN M 4...6
SGD 0.46
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Certificate
TÜV certified
福利
Punched contact: established and inexpensive
Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly.
申请书
Spare part for use with the EPIC® SOLAR 4 and EPIC® SOLAR 4PLUS solar connectors.
技术属性
一般信息
| Product type | Contact |
| Installation type | crimp |
| Brand | EPIC® |
| Delivery Unit | 100.000 |
| Weight | 0.001 kg |
电气特性
| Max. contact resistance | 0.5 |
产品设计
| Material contact surface | Tin-plated |
| Connectable conductor cross section min. (AWG) | 12 AWG |
| Max. connectable conductor cross-section AWG | 10 AWG |
| Min. connectable conductor cross-section (mm2) | 4 |
| Contact variant | Pin |
| Contact manufacturing method | Stamped |
| Contact connection type | Crimp termination |
| Contact material | Brass |
| Max. connectable conductor cross-section (mm2) | 6 |
| Contact material, short form | CuZn |
产品特点
认证和标准
| TÜV certified |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from EPIC® SOLAR 4Plus M contacts
| Article number | Connectable conductor cross-section (mm²) | Delivery Unit | Max. connectable conductor cross-section AWG | Connectable conductor cross section min. (AWG) | Max. connectable conductor cross-section (mm2) | Min. connectable conductor cross-section (mm2) |
|---|---|---|---|---|---|---|
| 44428217 | 2.5 | 100.000 | 14 AWG | 14 AWG | ||
| 44428219 | 100.000 | 10 AWG | 12 AWG | 6 | 4 | |
| 44428239 | 10 | 100.000 | 8 AWG | 8 AWG |
