EPIC® MCS HC2

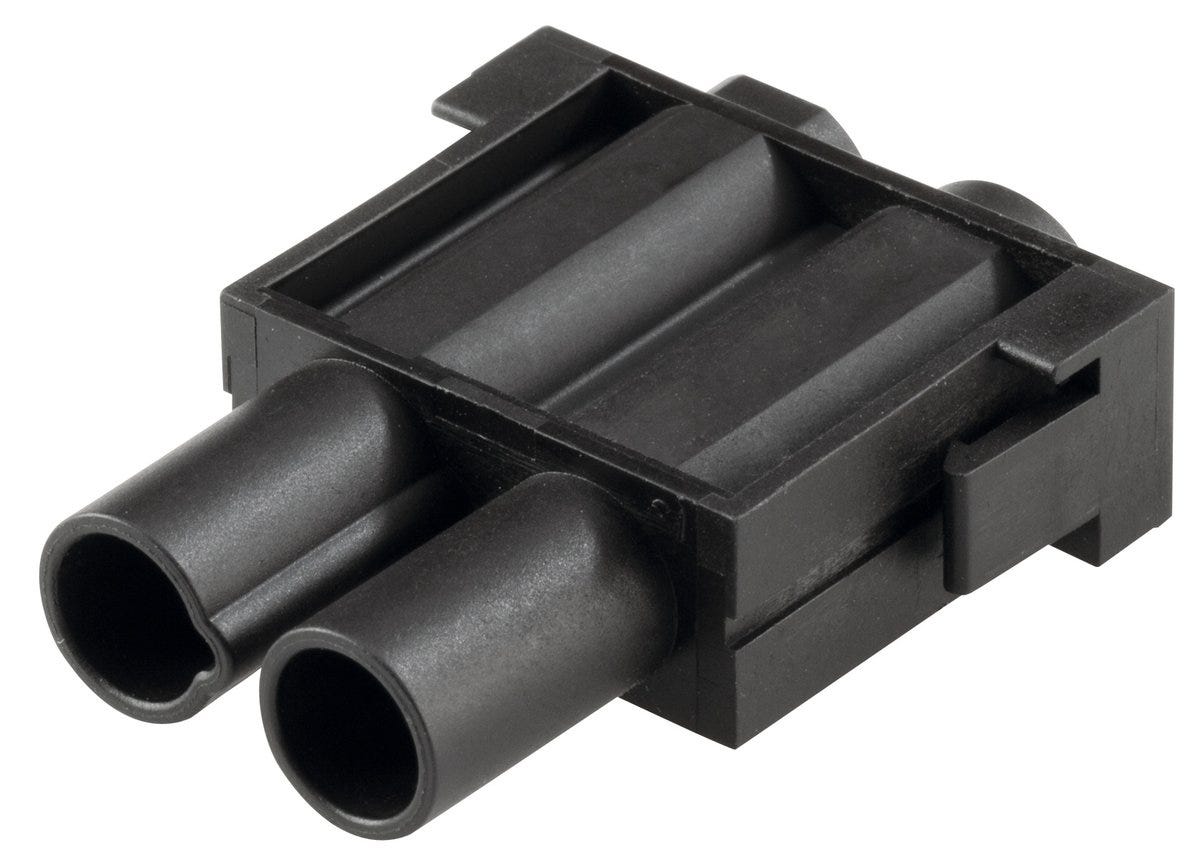

MC module modular system; Crimp termination; Number of contacts: 2; Required slots: 1; For cross-section (min./max.): 16mm² - 16mm²; 1000 V AC rms / DC according to IEC; 65 A according to IEC
EPIC® MCS HC2
SGD 6.50
/
EPIC® MCS HC2
SGD 6.50
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
heat resistance
cold resistance
flame-retardant
福利
High-current module for 2 power contacts and high power supply up to 65 A and voltages up to 1000 V
Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media
Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics)
Snaps effortlessly into the matching module frame and requires only 1 slot
Different crimp contacts available for different conductor cross-sections.
申请书
For the production of a modular connector
For connecting devices and machines to a power supply in various applications
For use with the rectangular connector module frames of the EPIC® MC series
For use with many EPIC® rectangular connector housings.
技术属性
一般信息
| Product type | MC module modular system |
| Scope of delivery | Order contacts separately |
| Brand | EPIC® |
| Installation type | clip on |
| Contacts included |
|
| Delivery Unit | 10.000 |
| Weight | 0.007 kg |
电气特性
| Rated impulse voltage | 8 kV AC rms / DC according to IEC 61984 |
| Rated voltage | 1000 V AC rms / DC according to IEC |
| Rated current | 65 A according to IEC |
| Protective conductor integrated into insert |
|
| Max. contact resistance | 1 |
产品设计
| Contact insert type | Plug |
| Number of PE contacts | 0 |
| Conductor connection type | Crimp termination |
| EMC screening |
|
| Insert material | Polyamide 6 |
| With wire protection |
|
| Colour | black |
| Connectable conductor cross section min. (AWG) | 6 AWG |
| Insert material, short form | PA 6 |
| Max. connectable conductor cross-section AWG | 6 AWG |
| Min. connectable conductor cross-section (mm2) | 16 |
| Number of contacts | 2 |
| Required slots | 1 |
| Screen contact |
|
| With protective conductor |
|
| Max. connectable conductor cross-section (mm2) | 16 |
| Number of power contacts | 2 |
产品特点
| Flame-retardant |
|
| Min. number of insertion cycles | 500 |
| Pollution degree | 3 |
| Operating temperature min. | -40 |
| Flame retardance according to | UL 94 V-0 |
| Operating temperature max. | 125 |
| Halogenfree |
|
认证和标准
| Tested for fire protection for railway vehicles |
|
| TÜV certified |
|
| Product standard according to IEC | IEC 61984 |
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| CE marked |
|
| VDE certified |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
