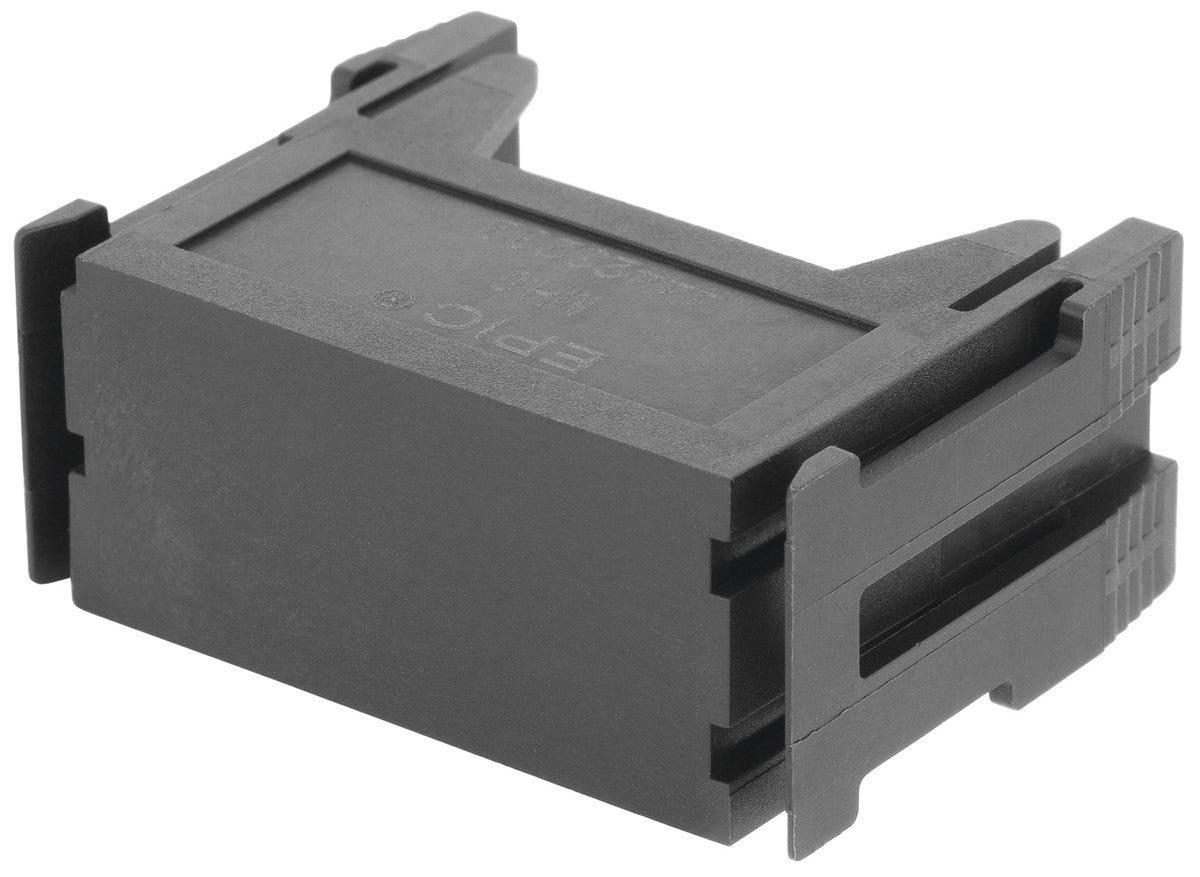

EPIC® MH 0 Z
MH module modular system; Number of contacts: 0; Required slots: 1; Number of slots: 0;
EPIC® MH 0 Z
SGD 5.31
/
EPIC® MH 0 Z
SGD 5.31
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
heat resistance
cold resistance
flame-retardant
福利

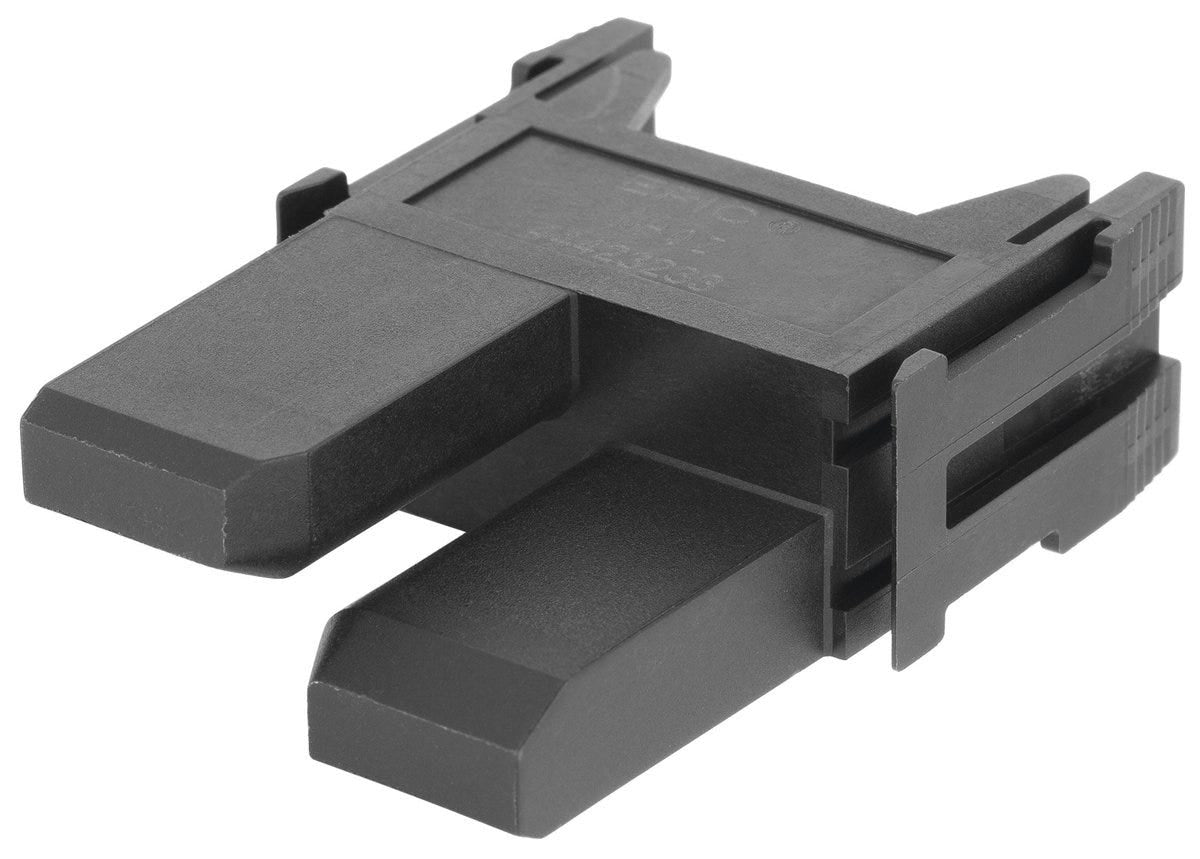

Dummy module as a placeholder for future expansion, EPIC® MH system is mateable with the market standard, """Z"" version with centering function for plug in technique", The mix of different functions in one plug guarantees high flexibility, Railway applications - Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL3
申请书
Mechanical engineering, Robotics industry, Plant engineering, Renewable energy, Railway applications / vehicle construction
技术属性
一般信息
| Product type | MH module modular system |
| Brand | EPIC® |
| Installation type | clip on |
| Contacts included |
|
| Delivery Unit | 10.000 |
| Weight | 0.009 kg |
电气特性
| Protective conductor integrated into insert |
|
产品设计
| Number of PE contacts | 0 |
| Number of data contacts | 0 |
| EMC screening |
|
| With wire protection |
|
| Colour | black |
| Number of contacts | 0 |
| Required slots | 1 |
| Screen contact |
|
| Material | Polyamide |
| Number of signal contacts | 0 |
| With protective conductor |
|
| Material shortname | PA |
| Number of slots | 0 |
| Number of power contacts | 0 |
产品特点
| Flame-retardant |
|
| Pollution degree | 3 |
| Operating temperature min. | -40 |
| Flame retardance according to | UL 94 V-0 |
| Operating temperature max. | 125 |
| Halogenfree |
|
认证和标准
| Tested for fire protection for railway vehicles |
|
| TÜV certified |
|
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| Fire protection for railway vehicles hazard level | EN 45545-2 HL1, EN 45545-2 HL2, EN 45545-2 HL3 |
| CE marked |
|
| VDE certified |
|
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
