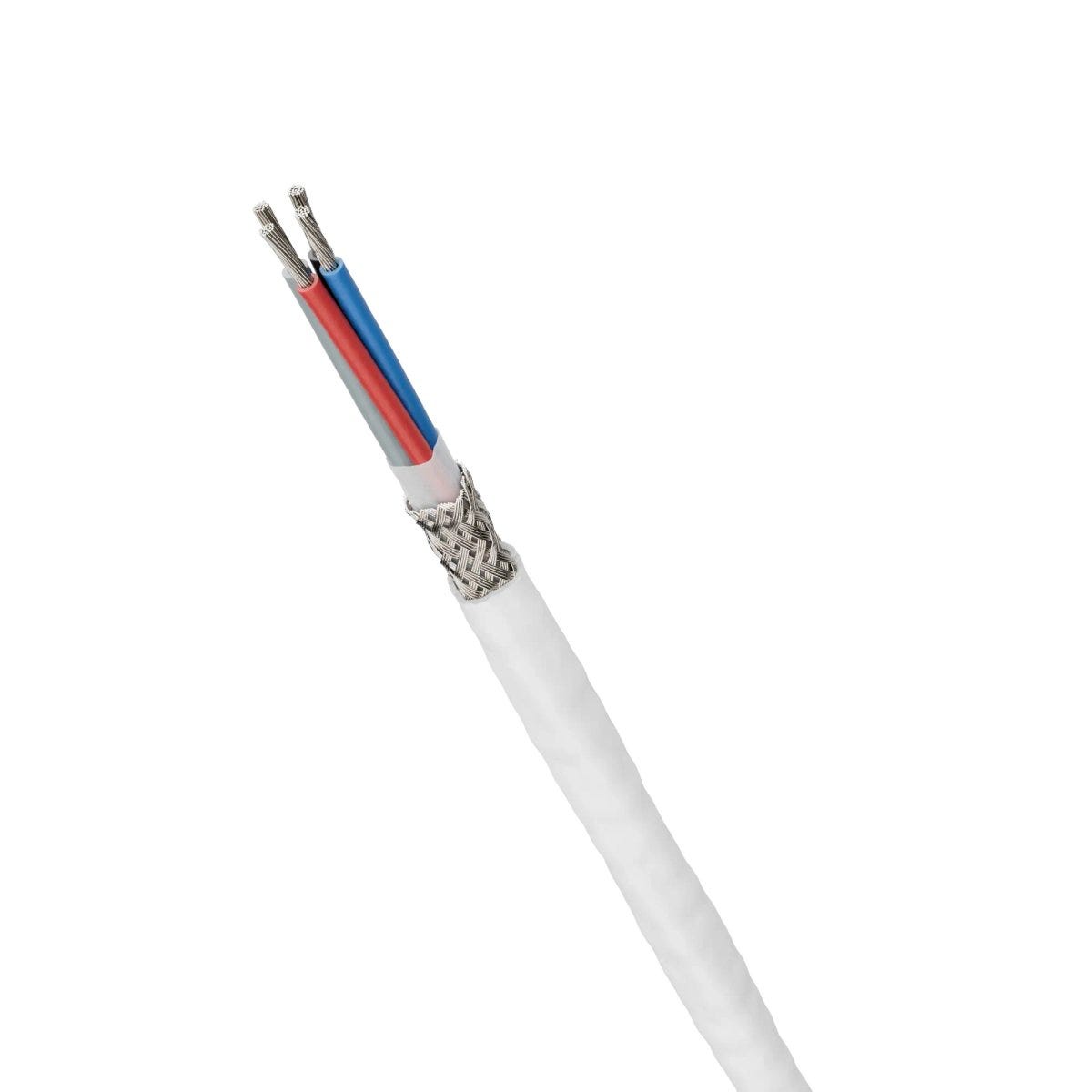

ÖLFLEX® HEAT 205 C MC 4X0,75 PTFE/FEP
Power and control cable; 4X0.75; U0/U: 300/500 V; FEP; Core identification: Colours; Shielded; -100°C - 205°C; Flexible
ÖLFLEX® HEAT 205 C MC 4X0,75 PTFE/FEP
SGD 28.28
/
ÖLFLEX® HEAT 205 C MC 4X0,75 PTFE/FEP
SGD 28.28
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
oil resistant
chemical resistance
acid resistance
uv-resistant.
icon sturgeon signal
Certificate
CE marked
福利
Space and weight-saving installations due to small cable diameters, Low outgassing behaviour, Resistant to contact with mostly all highly aggressive chemical media, Due to good electrical and mechanical properties suitable for sensor technology
申请书
For use in environments with very high operating temperatures, heavy usage of chemical agents or confined spaces, Typical fields of application- Industrial furnace construction- Foundries- Chemical industry- Power plant engineering- Paint shop line technology- Heating elements- Polymer processing- Wind turbine engineering, Sensor systems, e.g. level sensors
技术属性
一般信息
| Product type | Power and control cable |
| Brand | ÖLFLEX® |
| Copper index | 49.000 kg/km |
| Copper index (lb) | 329.230 lb |
| Weight | 78 kg/km |
电气特性
| Test voltage core/screening | 1.5 |
| Nominal voltage | U0/U: 300/500 V AC rms according to IEC |
| Max. conductor resistance at 20°C | 26.7 Ω/km |
| Test voltage core/core | 2 |

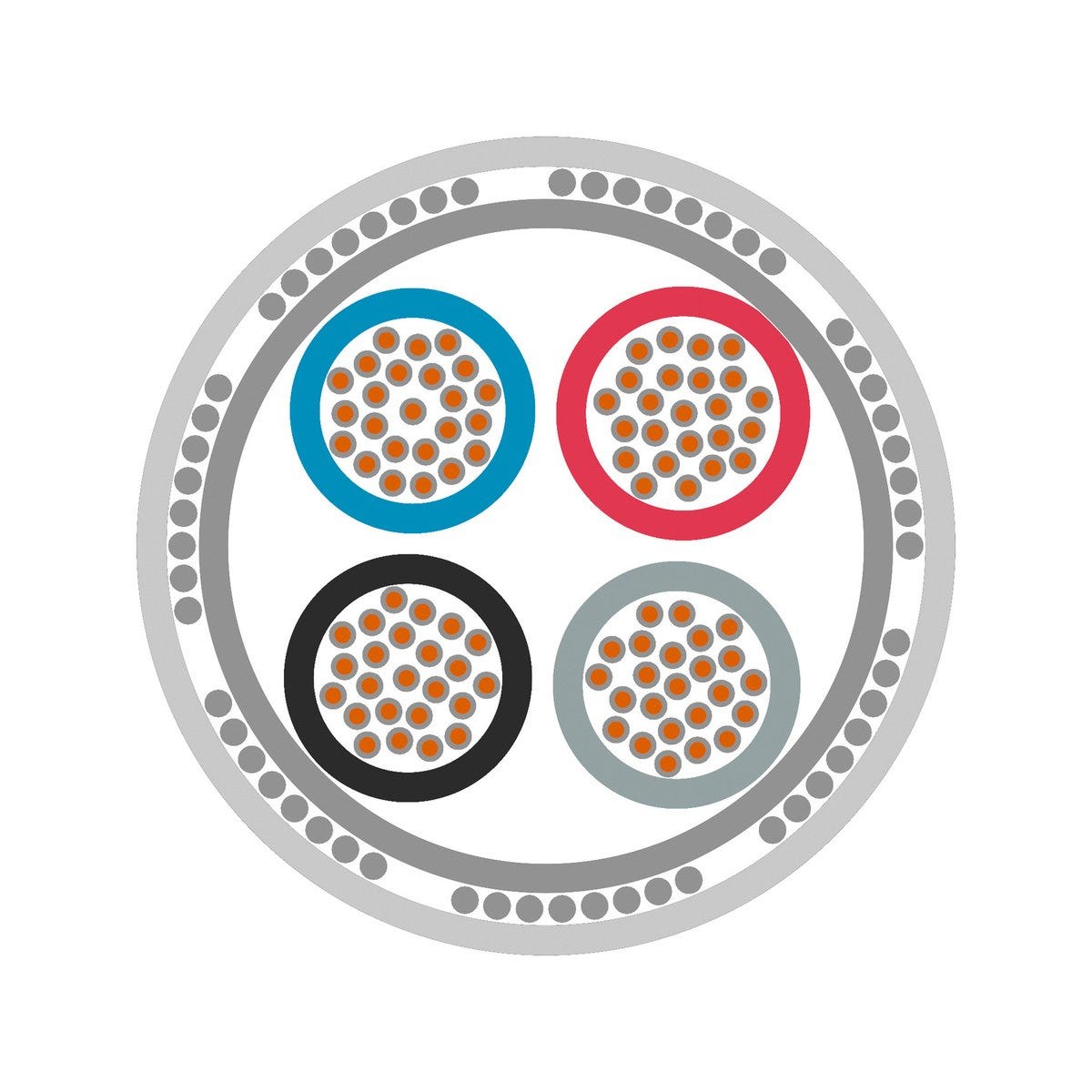

产品设计
| Core identification | Colours |
| Shape of cable | Round |
| Outer sheath colour | white |
| Nominal outer diameter | 5.9 mm |
| Conductor material | Silver-plated copper |
| Type of overall screen | Tin-plated copper braiding |
| Number of cores | 4 |
| Nominal conductor cross-section (metric) | 0.75 mm² |
| Cable dimension | 4X0.75 |
| Core insulation basic material | Fluoroethylene propylene |
| Basic material of outer sheath | Fluoroethylene propylene |
| Including protective earth |
|
| Core insulation basic material, short form | PTFE |
| Shielded |
|
| Basic material of outer sheath, short form | FEP |
产品特点
| Flame-retardant |
|
| Application area | Flexible, Fixed installation |
| max. conductor temperature, occasionally moved | -100 °C to 205 °C max. conductor temperature: |
| Oil-resistant |
|
| Acid-resistant |
|
| Minimum bending radius in mm, occasionally flexing | 88.5 mm |
| weather resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Minimum bending radius, stationary | 7.5 x outer diameter |
| Water resistant |
|
| Minimum bending radius, occasionally flexing | 15 x outer diameter |
| Temperature, fixed installation | -100 °C to 205 °C max. conductor temperature: |
| Minimum bending radius in mm, fixed installation | 44.3 mm |
| PWIS-free |
|
| Halogenfree |
|
认证和标准
| CE marked |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from ÖLFLEX® HEAT 205 C MC PTFE/FEP
| Article number | Number of cores | Including protective conductor | Conductor cross-section (mm2) | Imp outer dia cable sheath nom | Nominal outer diameter | Copper index calc export | Weight |
|---|---|---|---|---|---|---|---|
| 30016373 | 4 | No | 0.75 | 5.9 | 78 kg/km |
