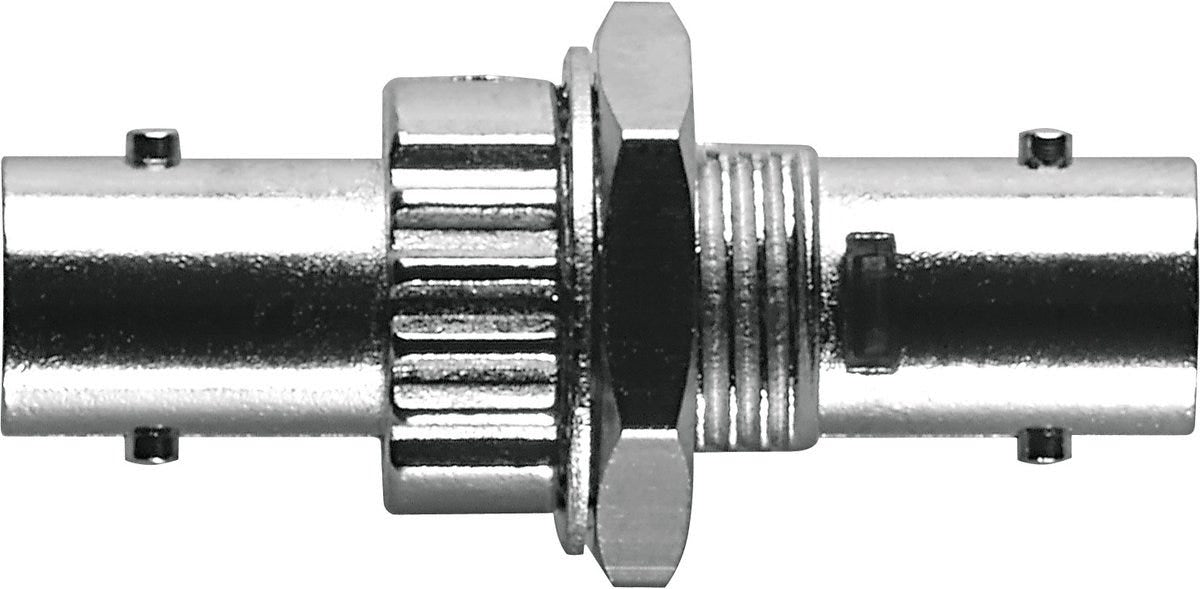

POF 适配器 ST (BFOC) /4件
Fibre optic coupling; Coupling; Straight; Locking type: Bayonet; Simplex; clip on;
POF 适配器 ST (BFOC) /4件
SGD 14.78
/
POF 适配器 ST (BFOC) /4件
SGD 14.78
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
技术属性
一般信息
| Product type | Fibre optic coupling |
| Scope of delivery | 4 couplings, including dust protection cap |
| Brand | HITRONIC® |
| Fibre optic cable type | POF |
| Installation type | clip on |
| Delivery Unit | 4.000 |
| Weight | 0.009 kg |
电气特性
产品设计
| Assembly type | Field configurable |
| Total length | 29.5 |
| Flange |
|
| Design connector housing | Straight |
| Connector type | Coupling |
| Direct mounting possible |
|
| Bend protection boot |
|
| Coupling connection type | ST |
| Connector colour | Metal |
| Overall width | 11 |
| Housing base material | Zinc alloy |
| Dust protection cap |
|
| Reusable |
|
| Variant of connector | Simplex |
| Locking type | Bayonet |
| Total height | 8.3 |
| Guide sleeve material | Ceramics |
| Suitable type of optical fibre | Simplex |
产品特点
| IP protection rating | IP 20 |
| Max. storage temperature | 99 |
| Insertion attenuation | 0.2 |
| Storage temperature min. | -55 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 85 |
认证和标准
| Product standard according to IEC | ST (BFOC) according to IEC 61754-2 |
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from POF adapter ST(BFOC)
| Article number | Suitable type of optical fibre |
|---|---|
| 29420099 | Simplex |
