POF 连接器 SC-RJ 压接 2.2

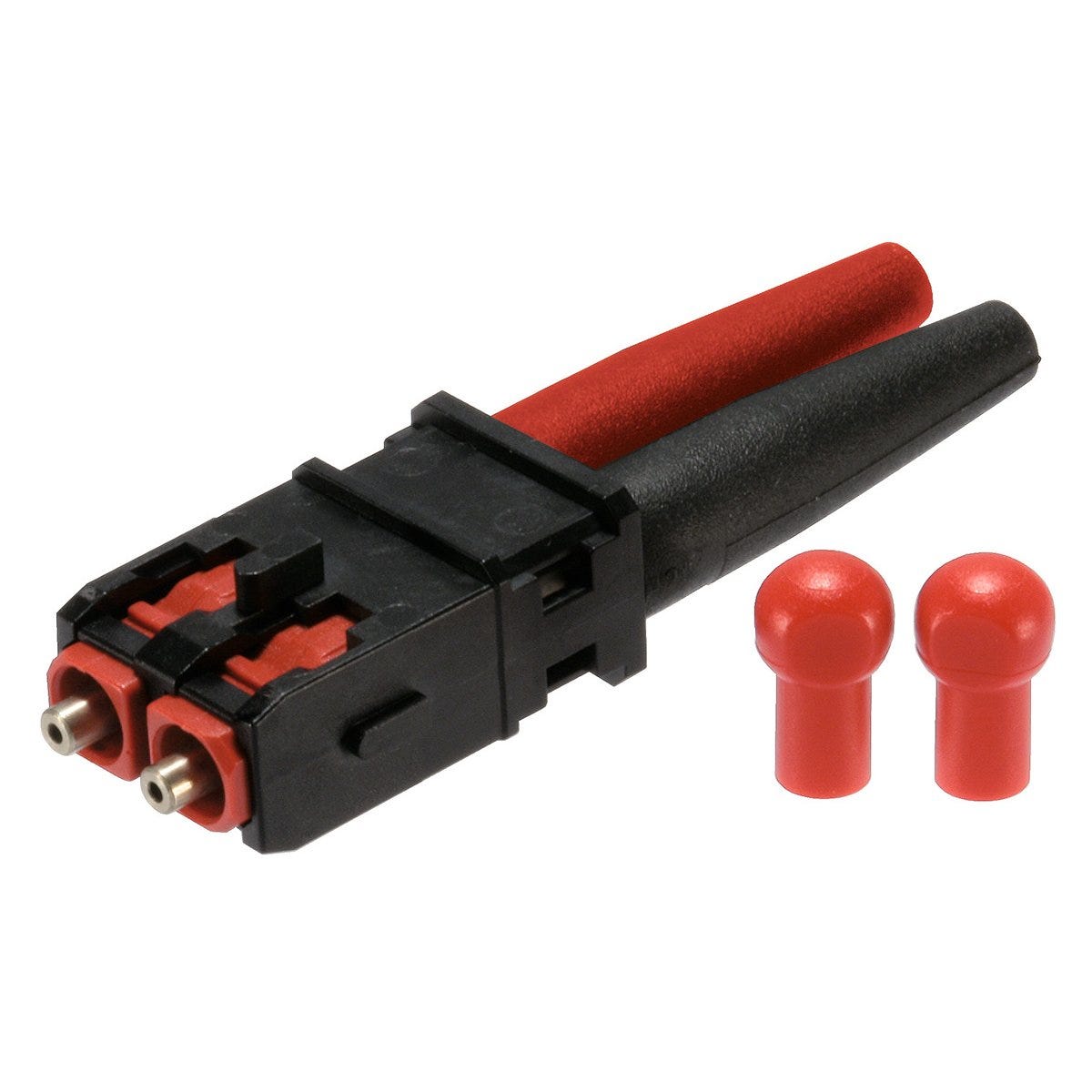

Fibre optic plug connector; SC-RJ; Plug; Straight;
POF 连接器 SC-RJ 压接 2.2
SGD 91.09
/
POF 连接器 SC-RJ 压接 2.2
SGD 91.09
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
福利
As crimp version for easy assembling, Connectors for PROFINET Data Cabling
技术属性
一般信息
| Product type | Fibre optic connector |
| Brand | HITRONIC® |
| Delivery Unit | 1.000 |
| Weight | 0.012 kg |
电气特性
产品设计
| Overall width | 11 |
| Dust protection cap |
|
| Total length | 57 |
| Connectable core diameter max. (mm) | 2.2 |
| Design connector housing | Straight |
| Ferrule length | 29 |
| Total height | 16.5 |
| Connector type | Plug |
| Type of plug connection | SC-RJ |
| Direct mounting possible |
|
产品特点
| IP protection rating | IP 20 |
| Storage temperature min. | -40 |
| Max. storage temperature | +85 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | +85 |
认证和标准
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from POF connector SC-RJ
| Article number | Connectable core diameter max. (mm) |
|---|---|
| 29161097 | 2.2 |
