AB-C3-M8FS-F0,25

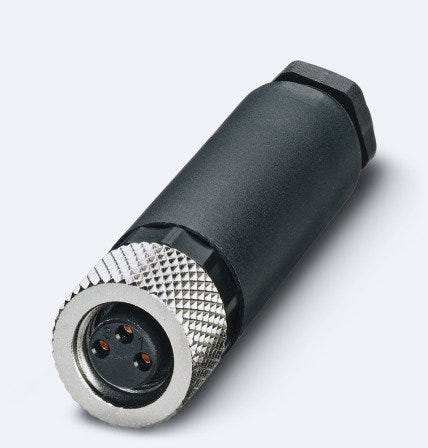

Data connector; Sensor/Actuator; M 8 (A-coded); Socket; Straight (180 °) ; Number of contacts: 3; For cross-section (min./max.): 28AWG - 24AWG; Shielded: No
AB-C3-M8FS-F0,25
SGD 32.37
/
AB-C3-M8FS-F0,25
SGD 32.37
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
福利
Connectors with metal housings have an electrically conductive coating. They offer optimum protection against electromagnetic interference (EMC) and dissipate interference signals with low impedance
Easy cable connection thanks to service-friendly screw connection or insulation displacement technology. Assembly can be carried out without special tools
The angled shape of the connector is suitable for a space-saving cable outlet
When connected, protection class IP 67 can be achieved on the M8 side.
申请书
Can be used universally on machine interfaces for many applications in data and signal transmission
Typical application areas are sensors and actuators at field level
Good oil and chemical resistance.
技术属性
一般信息
| Product type | Data connector |
| Brand | EPIC® |
| valid fieldbus or Ethernet system | Sensor/Actuator |
| Delivery Unit | 1.000 |
| Weight | 0.007 kg |
电气特性
| Over voltage category | II |
产品设计
| Assembly type | Field configurable |
| Material contact surface | Nickel-plated |
| Connector housing angle | 180 |
| Coded |
|
| Total length | 39 |
| Design connector housing | Straight |
| Contact coating material, short form | Ni/Au |
| For max. cable outer diameter | 5.0 |
| Connector type | Socket |
| Connector format | M 8 |
| Thread type | Metric |
| Conductor connection type | Insulation displacement contact |
| Plug material short form | PA |
| Thread size | M 8 |
| Housing colour | black |
| Min. connectable conductor cross-section fine-wire (AWG) | 28 AWG |
| With thread |
|
| Number of contacts | 3 |
| Min. connectable conductor cross-section (mm) | 0.75 |
| Connectable core diameter max. (mm) | 1.5 |
| Connector diameter | 12.5 |
| Locking type | Screw Thread |
| Connectable conductor cross-section (mm²) | 0.25 |
| Housing coating | Uncoated |
| Status indication |
|
| Contact material | Copper-tin |
| Max. connectable conductor cross-section fine-wire (AWG) | 24 AWG |
| Shielded |
|
| Coding type | A-coded |
| For min. cable outer diameter | 2.5 |
| Contact material, short form | CuSn |
产品特点
| IP protection rating | IP 65, IP 67 |
| Min. number of insertion cycles | 100 |
| Pollution degree | 3 |
| Vibration protection |
|
| UV-resistant |
|
| Operating temperature min. | -25 |
| Operating temperature max. | +80 |
认证和标准
| CE marked |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
