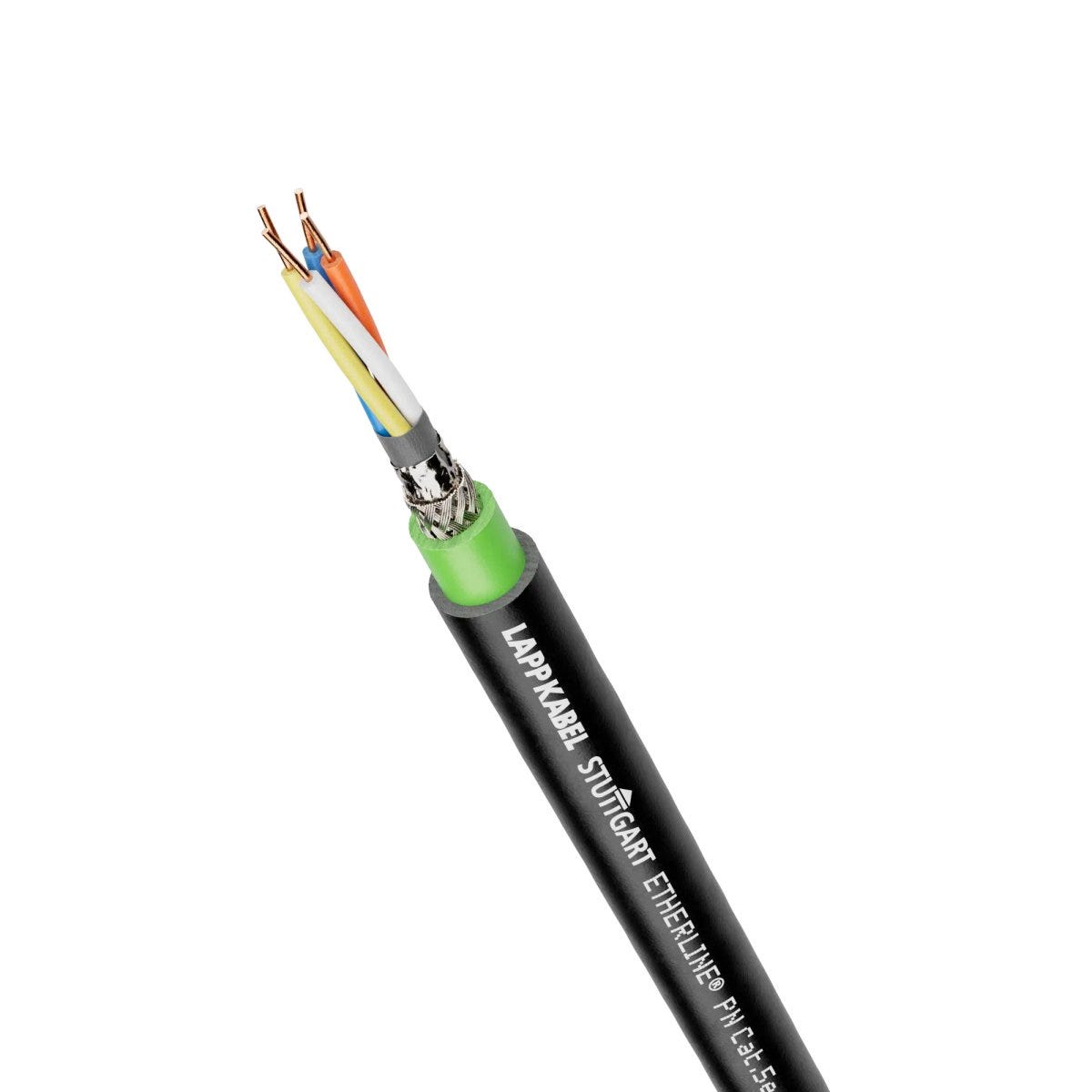

ETHERLINE® PN Cat.5e YY
Ethernet cable; Fixed installation; ETHERNET/IP, PROFINET; PROFINET® application: Type C; Cat.5e; SF/UTP; PVC; green
ETHERLINE® PN Cat.5e YY
SGD 6.19
/
ETHERLINE® PN Cat.5e YY
SGD 6.19
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
uv-resistant.
icon sturgeon signal
Certificate
CE marked
cUL listed US, UL listed US
ETHERNET/IP
PROFINET
福利
Fast information exchange through Ethernet technology. , Cat. 5 performance up to 100 Mbit/s
"FC" variants with Fast Connect cable design for easier assembly. The "Fast Connect" design, including inner sheath and cross separator, significantly reduces the cable assembly time, by eliminating the time-consuming removal of the pair shielding. It also provides undiminished shielding of the core pairs
High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (SF/UTP)
UL certification according to technical data enables the product to be used on the North American market.
申请书
For fixed installation in the PROFINET network (type A), due to solid conductor design
Also suitable for EtherCAT and EtherNet/IP applications
Can be used in dry and damp environments
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance
Variant "Y" is suitable for outdoor use, subject to the temperature range.
技术属性
一般信息
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | ETHERNET/IP, PROFINET |
| Copper index | 30.400 kg/km |
| Copper index (lb) | 204.280 lb |
| Weight | 60 kg/km |
电气特性
| Maximum operating voltage (not for power transmission) | 125 |
| Nominal surge impedance | 100 |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Loop resistance at 20°C | 118.2 |
| Possible data transmission rates | 100 |
| Signal propagation speed (nom.) | 0.66 |
| Test voltage core/screening | 0.5 |
| Test voltage core/core | 1 |
| Rated voltage core to core | 50 V AC rms according to IEC |
产品设计
| Nominal core diameter | 1.5 |
| Conductor design | solid conductor |
| Nominal outer diameter | 7.7 mm |
| Conductor material | Bare copper |
| Min. outer diameter | 7.4 |
| Conductor count/size | 2x2x22/1AWG |
| Optical degree of coverage of the stranded screening, overall screen | 85 |
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 2 |
| base material inner sheath shortname | PVC |
| Outer sheath colour | green |

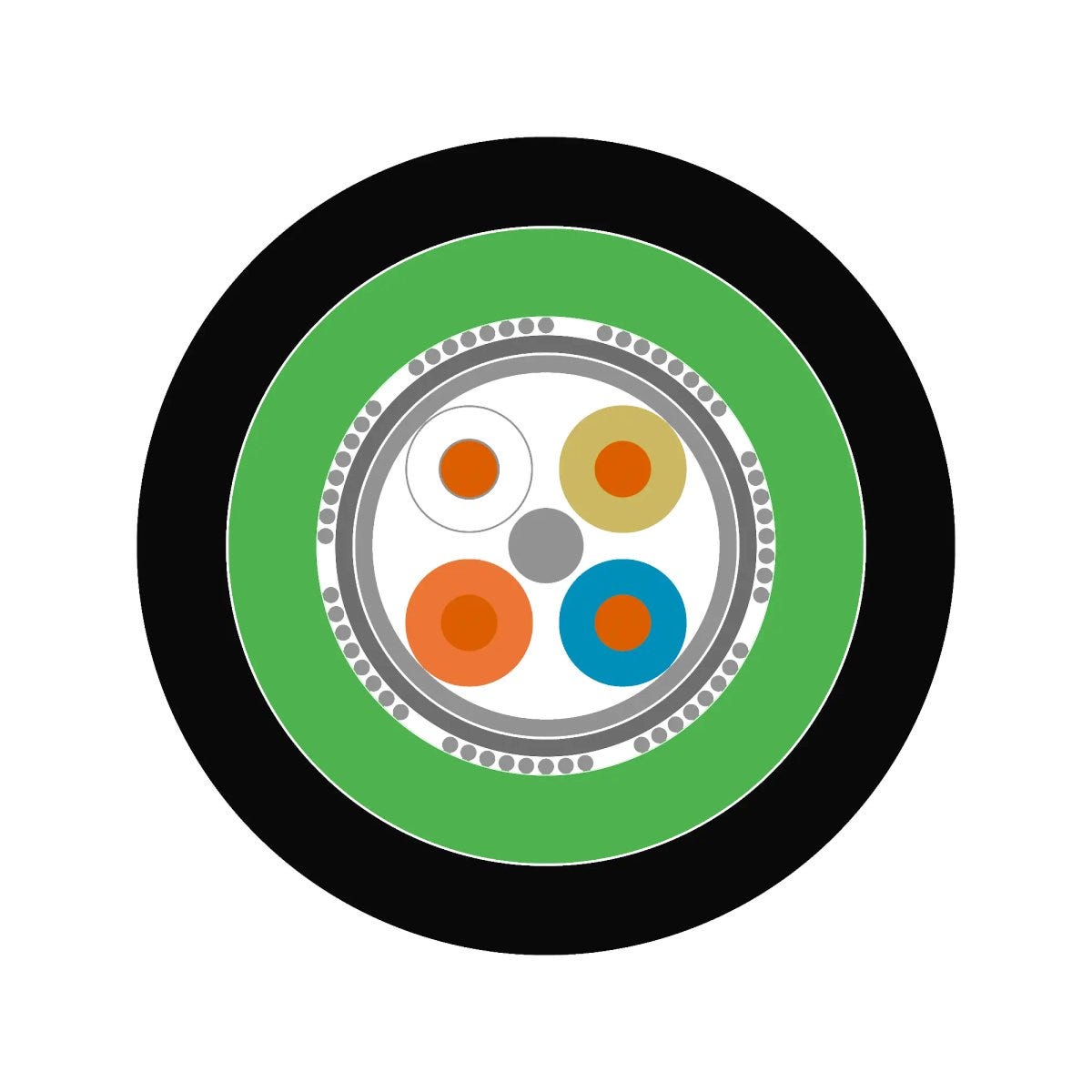

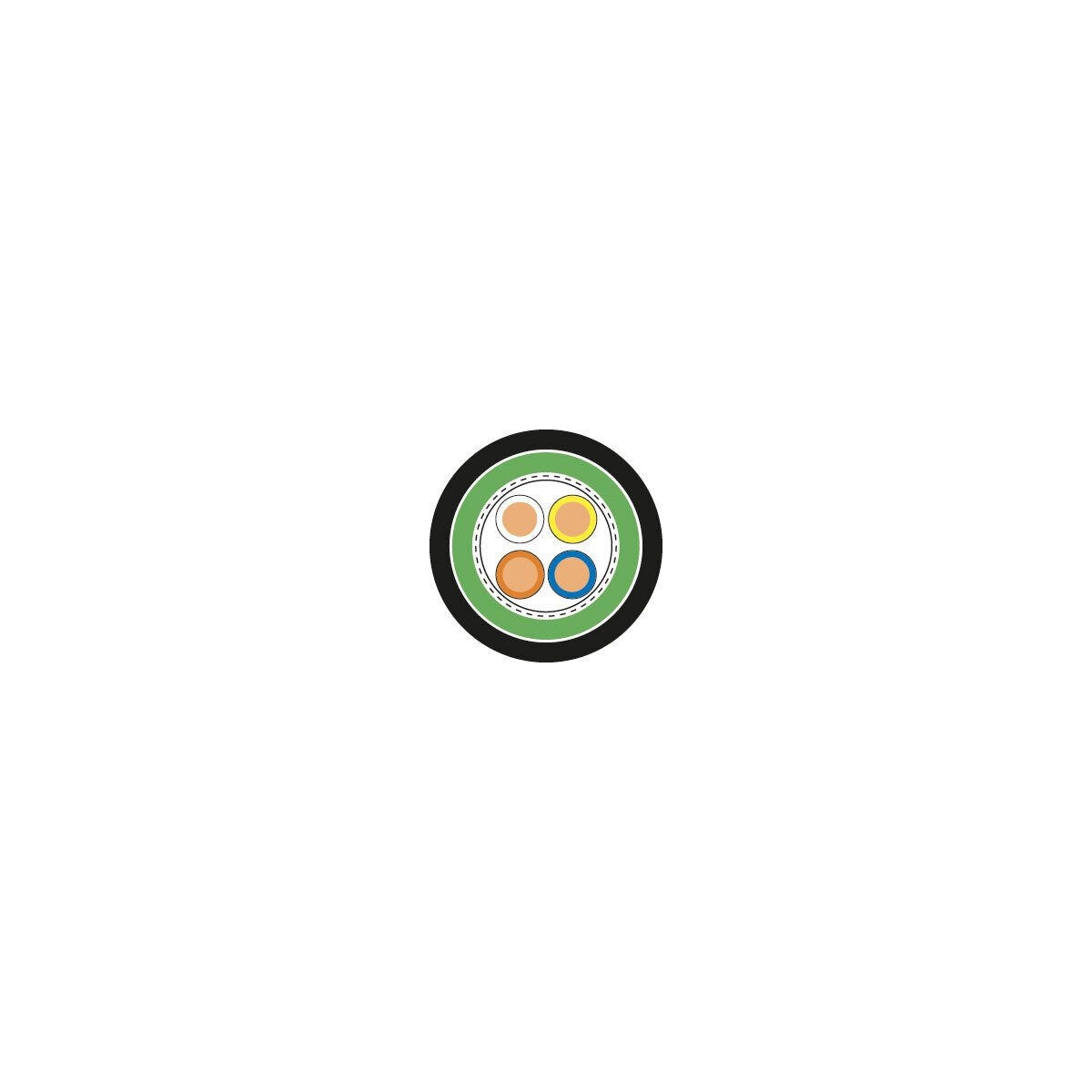

| Stranding type | Star quad |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | SF/UTP |
| Cable sheath RAL colour | RAL 6018 |
| With rodent protection |
|
| Conductor colour code | PROFINET Color code star quad |
| Type of overall screen | Aluminium-laminated plastic foil, Tin-plated copper braiding |
| Number of cores | 4 |
| Nominal conductor cross-section (AWG) | 22 AWG |
| Core insulation basic material | Polyethylene |
| Basic material of outer sheath | Polyvinylchloride |
| Basic material of inner sheath | Polyvinylchloride |
| Including protective earth |
|
| Core insulation basic material, short form | PE |
| With armouring |
|
| Max. outer diameter | 8 |
| Number of wires | 1 |
| Basic material of outer sheath, short form | PVC |
产品特点
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| Fast Connect (FC) cable |
|
| PROFINET® application | Type C |
| Installation temperature min. | -20 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 64.0 mm |
| PWIS-free |
|
| Application area | Fixed installation |
| Oil-resistant |
|
| Ethernet cable category | Cat.5e |
| Max. assembly temperature | 60 |
| Minimum bending radius, stationary | 8 x outer diameter |
| Temperature, fixed installation | -25 °C to 80 °C max. conductor temperature: |
| Flame retardance according to | CSA FT4 |
| UV-resistant according to | UL sunlight resistant |
| Windable |
|
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| CSA certified |
|
| UL certification | UL CMG according to UL 444 (e-file number: E236660) |
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| cUL certification | cUL CMG (75°C) according to CSA C22.2 No. 214 (e-file number: E236660) |
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
产品系列列表
All articles from ETHERLINE® PN Cat.5e
| Article number | Conductor count/size | Imp outer dia cable sheath nom | Nominal outer diameter | Temperature, fixed installation | Copper index calc export | Flame retardance according to | Weight | Copper index |
|---|---|---|---|---|---|---|---|---|
| 2170879 | 2x2x22/1AWG | 6.5 | -40 °C to 80 °C max. conductor temperature: | CSA FT4 | 70 kg/km | 30.400 | ||
| 2170891 | 2x2x22/1AWG | 6.3 | -40 °C to 70 °C max. conductor temperature: | UL VW-1, IEC 60332-1-2 | 56 kg/km | 30.400 | ||
| 2170893 | 2x2x22/1AWG | 6.5 | -40 °C to 80 °C max. conductor temperature: | CSA FT4, IEC 60332-1-2 | 70 kg/km | 30.400 | ||
| 2170933 | 2x2x22/1AWG | 7.7 | -25 °C to 80 °C max. conductor temperature: | CSA FT4 | 60 kg/km | 30.400 |
