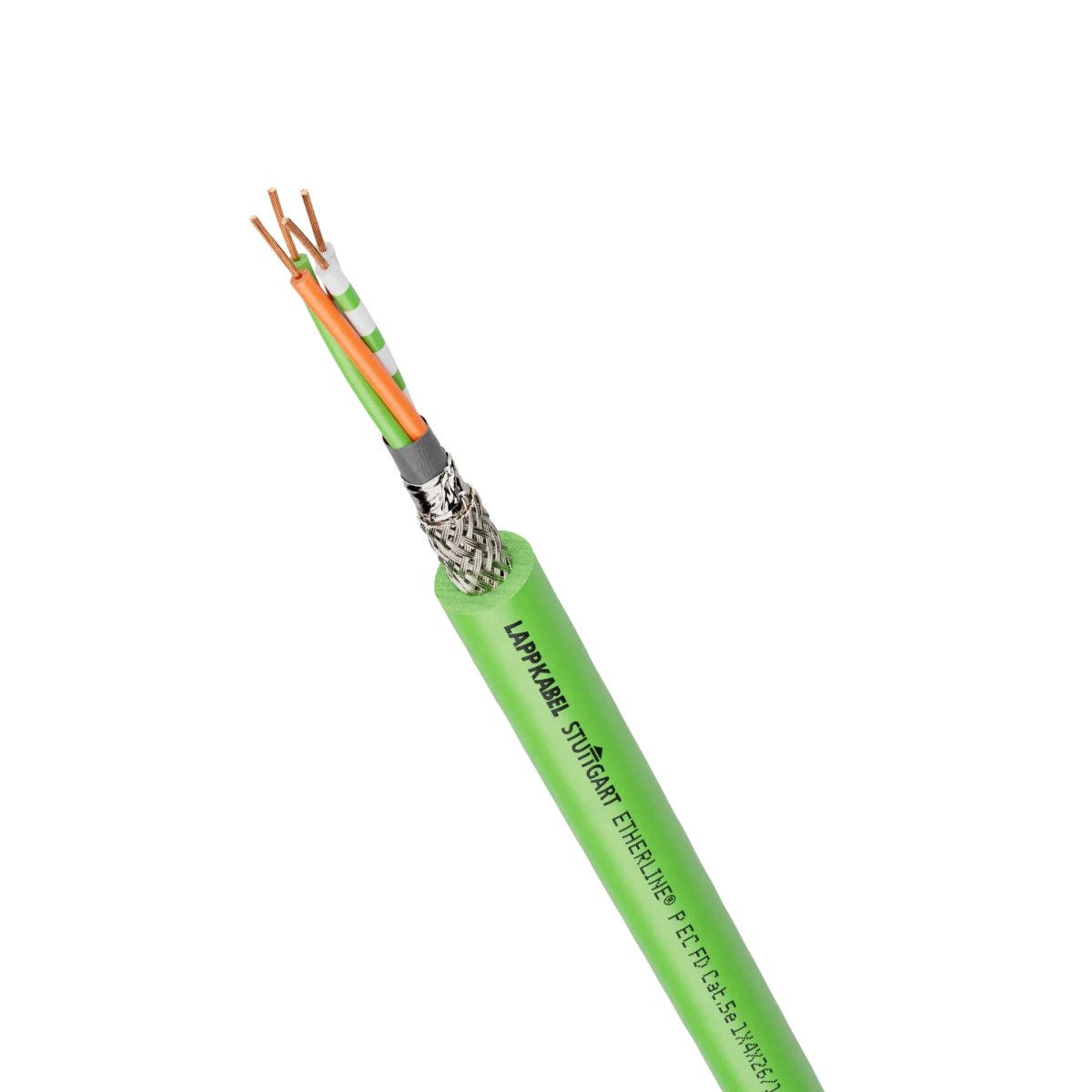

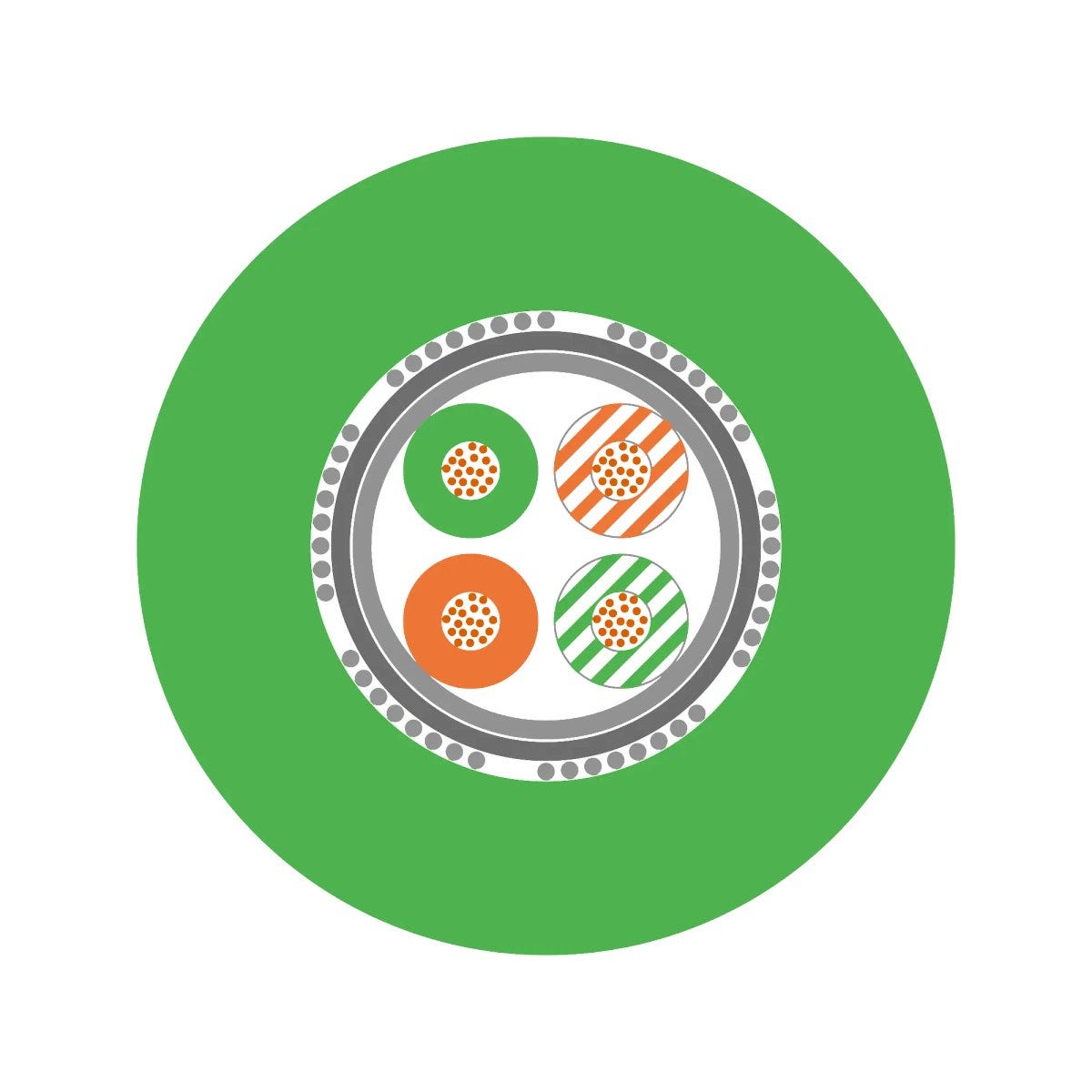

ETHERLINE® P EC FD Cat.5e
Ethernet cable; Cable chain, Flexible; EtherCAT, ETHERNET/IP; Cat.5e; SF/UTP; PUR; Halogenfree; green
ETHERLINE® P EC FD Cat.5e
SGD 5.80
/
ETHERLINE® P EC FD Cat.5e
SGD 5.80
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
halogen-free
oil resistant
uv-resistant.
icon powerchain
icon sturgeon signal
Product Carbon Footprint
Certificate
CE marked
cUL listed US, UL listed US
ETHERNET/IP
福利
Fast information exchange through Ethernet technology. , Cat. 5e performance up to 100 Mbit/s
For transmission of analogue and digital signals in the frequency range up to 100 MHz
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (SF/UTP)
UL certification according to technical data enables the product to be used on the North American market.
申请书
Cable design allows highly flexible, continuously moving use in moving machine parts and in cable chains
Especially for environments where electromagnetic compatibility (EMC) is required
Suitable for all LAN networks and Ethernet applications up to 100Base-T
Also suitable for EtherCAT and EtherNet/IP applications
Suitable for patch cable assembly up to a cable length of 60 m
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
Flexible use at temperatures down to -30°C.
技术属性
一般信息
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | EtherCAT, ETHERNET/IP |
| Copper index | 20.000 kg/km |
| Copper index (lb) | 134.400 lb |
| Weight | 36 kg/km |
电气特性
| Maximum operating voltage (not for power transmission) | 125 |
| Nominal surge impedance | 100 |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Loop resistance at 20°C | 280.0 |
| Possible data transmission rates | 100 |
| Signal propagation speed (nom.) | 0.67 |
| Test voltage core/screening | 1.5 |
| Test voltage core/core | 1.5 |
| Rated voltage core to core | 300 V AC rms according to UL, 50 V AC rms according to IEC |
产品设计
| Min. core diameter | 0.95 |
| Nominal core diameter | 1.03 |
| Conductor design | 19-wire |
| Nominal outer diameter | 4.8 mm |
| Max. diameter of core | 1.1 |
| Min. outer diameter | 4.5 |
| Nominal conductor cross-section (metric) | 0.14 mm² |
| Conductor count/size | 1x4x26/19AWG |
| Optical degree of coverage of the stranded screening, overall screen | 85 |
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 2 |
| Outer sheath colour | green |
| Stranding type | Star quad |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | SF/UTP |
| Cable sheath RAL colour | RAL 6018 |
| Type of overall screen | Aluminium-laminated plastic foil, Tin-plated copper braiding |
| Number of cores | 4 |
| Nominal conductor cross-section (AWG) | 26 AWG |
| Core insulation basic material | Polypropylene |
| Basic material of outer sheath | Polyurethane |
| Including protective earth |
|
| Core insulation basic material, short form | PP |
| Max. outer diameter | 5.1 |
| Number of wires | 19 |
| Basic material of outer sheath, short form | PUR |
| Additional stranding element | Central dummy wire |
产品特点
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| Halogen-free according to | VDE 0472-815 |
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Minimum bending radius in mm, dynamic continuously flexing | 81.6 mm |
| Installation temperature min. | -40 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 20.4 mm |
| PWIS-free |
|
| Application area | Cable chain, Flexible |
| max. conductor temperature, occasionally moved | -30 °C to 50 °C max. conductor temperature: |
| Oil-resistant |
|
| Ethernet cable category | Cat.5e |
| Max. assembly temperature | 80 |
| Minimum bending radius, stationary | 4 x outer diameter |
| Temperature, fixed installation | -40 °C to 80 °C max. conductor temperature: |
| Flame retardance according to | UL VW-1, IEC 60332-1-2 |
| Oil resistance according to | DIN EN 60811-2-1 |
| Minimum bending radius, dynamic continuously flexing | 16 x outer diameter |
| Windable |
|
| For torsional load |
|
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| CSA certified |
|
| cUL listed |
|
| Flame retardance tested according to UN/ECE-R118 |
|
| UL listed |
|
| CE marked |
|
| cUL certification | cUL CMX (75°C) according to CSA C22.2 No. 214 (e-file number: E236660) |
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from ETHERLINE® EC FD Cat.5e
| Article number | Conductor count/size | Imp outer dia cable sheath nom | Nominal outer diameter | Number of cores | Copper index calc export | Weight |
|---|---|---|---|---|---|---|
| 2170433 | 1x4x26/19AWG | 4.8 | 4 | 36 kg/km |
