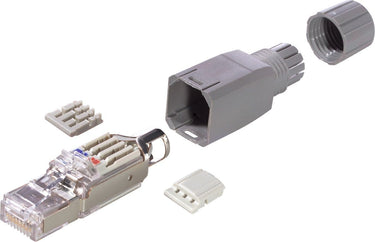

EPIC® DATA RJ45 连接器 Cat.5e FM45 现场组装式
Data connector; Ethernet, EtherCAT, ETHERNET/IP; Cat.5e; RJ 45; Plug; Straight (180 °)
EPIC® DATA RJ45 连接器 Cat.5e FM45 现场组装式
SGD 20.40
/
EPIC® DATA RJ45 连接器 Cat.5e FM45 现场组装式
SGD 20.40
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
icon sturgeon signal
Certificate
ETHERNET/IP
福利
Allows assembly without special tools and creates a vibration-proof connection between contact and cable
Can be reconnected after loosening the contact, thus offering high flexibility during installation and maintenance
Low error potential during assembly thanks to core manager with colour coding according to EIA/TIA standard (T568A or T568B).
申请书
For data transmission in the frequency range up to 100 MHz
For use with Cat.5e cables
Suitable for all LAN networks and Ethernet applications up to 100Base-TX.
技术属性
一般信息
| Product type | Data connector |
| valid fieldbus or Ethernet system | Ethernet, EtherCAT, ETHERNET/IP |
| Delivery Unit | 1.000 |
| Weight | 0.011 kg |
电气特性
| Rated current | 1.75 A according to (manufacturer specifications) |
产品设计
| Assembly type | Field configurable |
| Min. connectable conductor cross section solid conductor (AWG) | 26 AWG |
| Connector housing angle | 180 |
| Coded |
|
| Total length | 59 |
| Max. connectable conductor cross section solid-conductor (AWG) | 23 AWG |
| Design connector housing | Straight |
| For max. cable outer diameter | 8 |
| Connector type | Plug |
| Connector format | RJ 45 |
| Conductor connection type | Insulation displacement contact |
| Housing RAL colour | RAL 7042 |
| Overall width | 14 |
| Housing colour | grey |
| Min. connectable conductor cross-section fine-wire (AWG) | 26 AWG |
| With thread |
|
| Dust protection cap |
|
| Reusable |
|
| Number of contacts | 8 |
| Min. connectable conductor cross-section (mm) | 1.0 |
| Core manager colour coding | EIA/TIA 586A and EIA/TIA 586B |
| Connectable core diameter max. (mm) | 1.6 |
| Locking type | Latch |
| Total height | 14.6 |
| Screen contact |
|
| Max. connectable conductor cross-section fine-wire (AWG) | 22 AWG |
| Shielded |
|
| For min. cable outer diameter | 4.5 |
产品特点
| IP protection rating | IP 20 |
| Ethernet cable category | Cat.5e |
| UV-resistant |
|
| Operating temperature min. | -20 |
| Tensile strength after assembly | 50 |
| Operating temperature max. | 70 |
认证和标准
| Product standard according to IEC | RJ45 according to IEC 60603-7-3 |
| cUR recognized |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from EPIC® DATA RJ45 Plug Cat.5e FM45 field m.
| Article number | Number of contacts | Delivery Unit |
|---|---|---|
| 21700540 | 8 | 1.000 |
