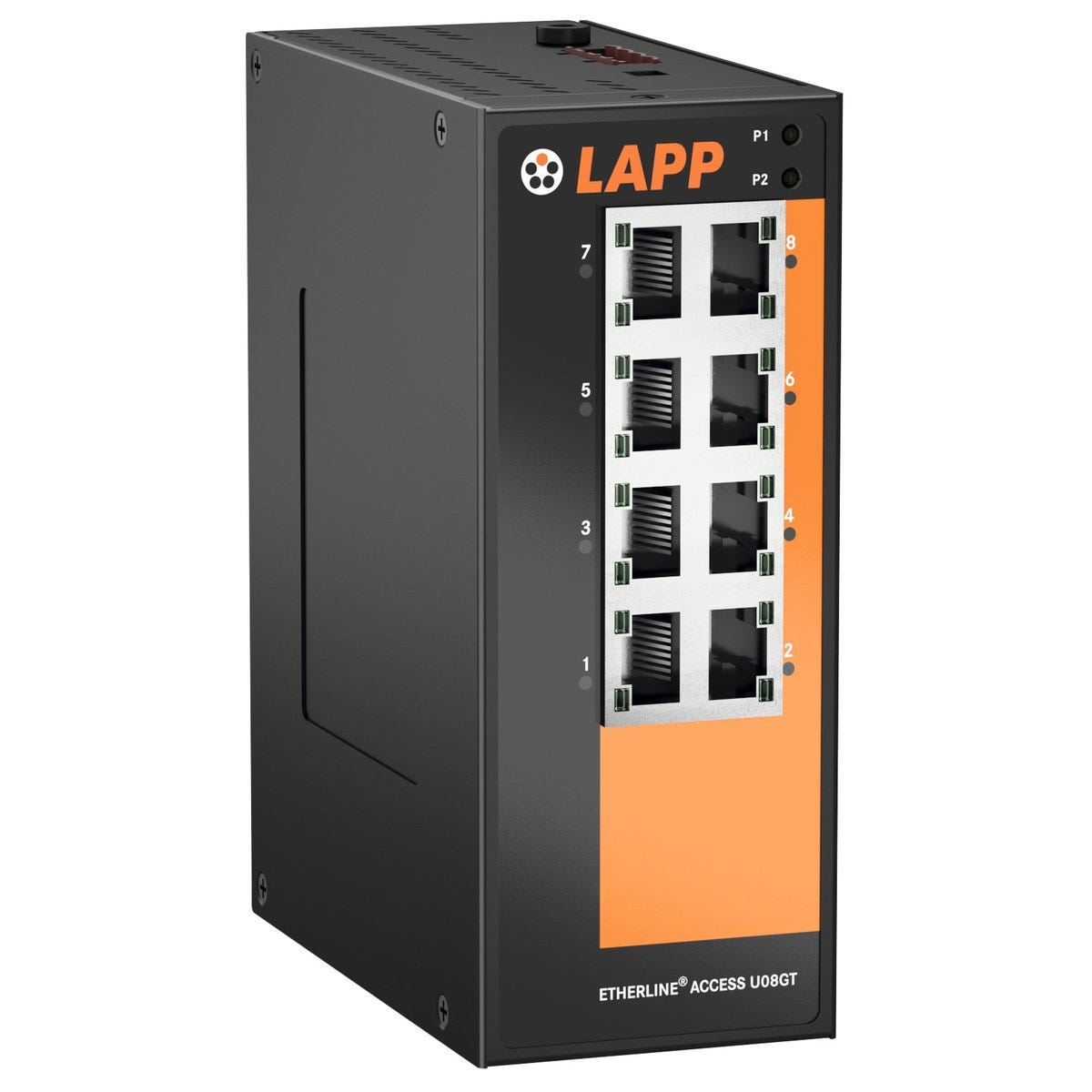

ETHERLINE® ACCESS U08GT
Unmanaged switch; Interfaces:
ETHERLINE® ACCESS U08GT
SGD 580.51
/
ETHERLINE® ACCESS U08GT
SGD 580.51
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
Certificate
CE marked
UL listed
福利
A redundant power supply (two connections to the device) ensures uninterrupted data communication even if the primary connection fails
Robust design for direct mounting on 35 mm top-hat rails
Low-noise and maintenance-free as it is operated without fans.
技术属性
一般信息
| Product type | Unmanaged switch |
| Brand | ETHERLINE® |
| valid fieldbus or Ethernet system | Ethernet |
| Delivery Unit | 1.000 |
| Weight | 0.88 kg |
电气特性
| Current consumption (max.) | 0.85 |
| Nominal operating voltage | 24 V AC rms / DC |
| Operating voltage range | 18 V - 30 V AC rms (50 Hz), 12 V - 48 V DC |
| Power consumption (max.) | 10 |
产品设计
| Interfaces | Copper |
| Total length | 106 |
| Number of ports | 8 |
| Direct mounting possible |
|
| Overall width | 53.6 |
| Housing colour | black |
| Housing base material | Aluminium |
| Housing base material, short form | Al |
| Switch variant | Unmanaged |
| Total height | 134 |
| Status indication |
|
产品特点
| Flame-retardant |
|
| IP protection rating | IP 30 |
| Switching protocols | Broadcast storm protection, Jumbo frames |
| Package buffer size | 4 |
| Suitable for EX-applications |
|
| Data transmission rate | 10, 100, 1000 |
| Operating temperature min. | -10 |
| Switch property | Gigabit |
| MAC table size | 8 |
| Operating temperature max. | 60 |
认证和标准
| TÜV certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from ETHERLINE® ACCESS U Gigabit
| Article number | Number of ports |
|---|---|
| 21700129 | 8 |
