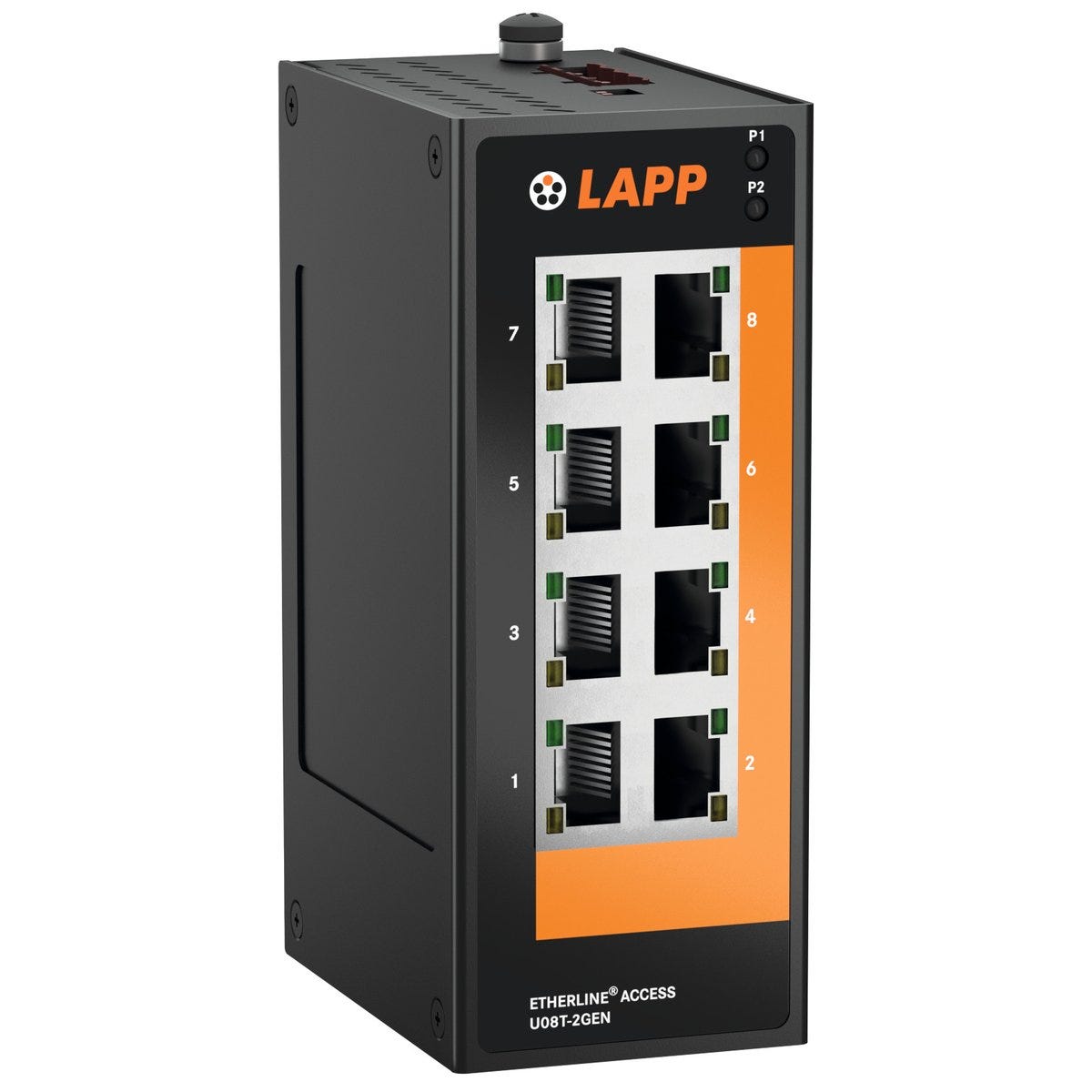

ETHERLINE® ACCESS U08T-2代
Unmanaged switch; Ethernet; Interfaces: 8xRJ 45 (10 Mbit/s; 100 Mbit/s)
ETHERLINE® ACCESS U08T-2代
SGD 212.01
/
ETHERLINE® ACCESS U08T-2代
SGD 212.01
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
Certificate
CE marked
UL listed
福利
Low-noise and maintenance-free as it is operated without fans
For the “U” variants, redundant power supply (two connections to the device) ensures uninterrupted data communication even if the primary connection fails
“UF08T“ and “UF16T“ variants block the LLDP and PTCP functions in compliance with PROFINET (“Conformance Class A“) and thus prevent endlessly circulating data packages.
申请书
The “UF08T” and “UF16T” variants are also suitable for use in PROFINET networks (“Conformance Class A”).
技术属性
一般信息
| Product type | Unmanaged switch |
| Brand | ETHERLINE® |
| valid fieldbus or Ethernet system | Ethernet |
| Delivery Unit | 1.000 |
| Weight | 0.333 kg |
电气特性
| Current consumption (max.) | 0.4 |
| Nominal operating voltage | 24 V AC rms / DC |
| Operating voltage range | 18 V - 30 V AC rms (50 Hz), 12 V - 48 V DC |
产品设计
| Interfaces (copper) | 10 Mbit/s; 100 Mbit/s: 8 x RJ 45 |
| Interfaces | Copper |
| Total length | 68 |
| Number of ports | 8 |
| Direct mounting possible |
|
| Overall width | 45.6 |
| Housing colour | black |
| Housing base material | Aluminium |
| Housing base material, short form | Al |
| Switch variant | Unmanaged |
| Total height | 114.5 |
| Status indication |
|
产品特点
| Flame-retardant |
|
| IP protection rating | IP 30 |
| Switching protocols | Broadcast storm protection |
| Package buffer size | 1 |
| Suitable for EX-applications |
|
| Data transmission rate | 10, 100 |
| Industrial protocols | Ethernet |
| Operating temperature min. | -10 |
| MAC table size | 2 |
| Operating temperature max. | 60 |
认证和标准
| TÜV certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
