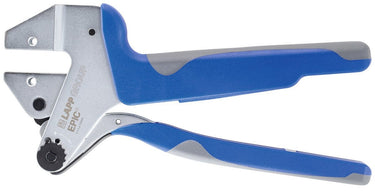

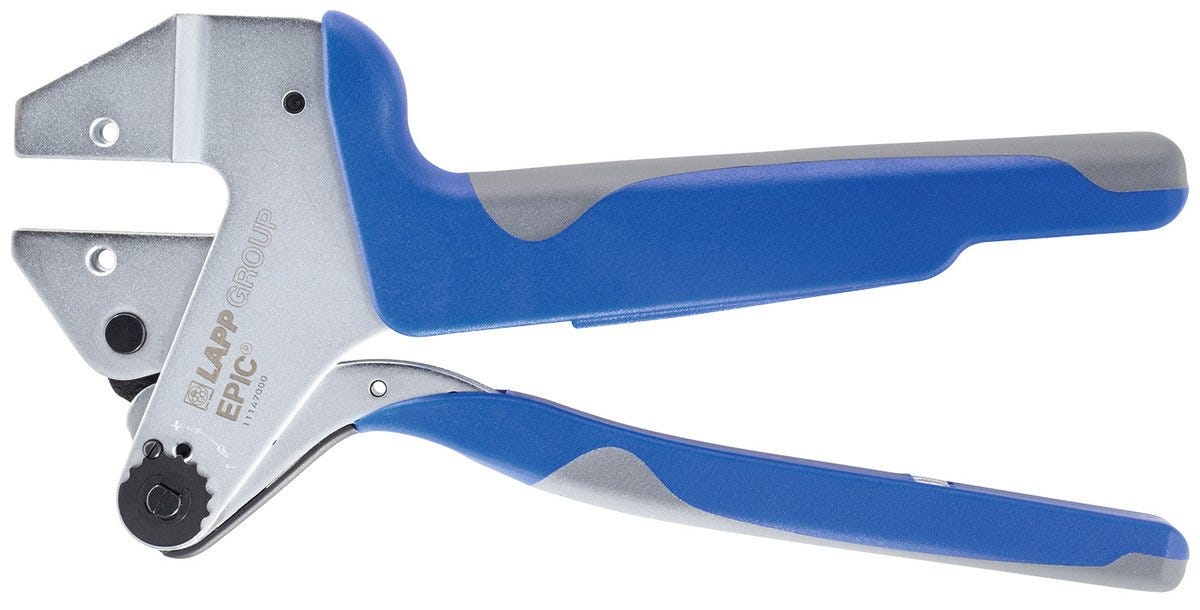

EPIC® 单触点手动压接工具
Crimping tool; For cross-section (min./max.): 0.14mm² - 25mm²;
EPIC® 单触点手动压接工具
SGD 522.12
/
EPIC® 单触点手动压接工具
SGD 522.12
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
福利
Separately available crimping inserts allow flexibility in the choice of crimping profile
The case is used for practical storage of crimping tools and crimping dies.
申请书
For making a secure crimp connection
For use with turned and stamped contacts, with end sleeves and crimpable data connectors.
技术属性
一般信息
| Product type | Crimping tool |
| Scope of delivery | including case |
| Suitable crimping insert | EPIC® SOLAR TOOL CSC DIE 4mm², EPIC® SOLAR TOOL CSC DIE 6mm², EPIC® SOLAR TOOL DIE 2.5, 4, 6mm², EPIC® SOLAR TOOL DIE 4, 6, 10 mm², EPIC® SOLAR TOOL DIE 4, 6, 10 mm² TUEV, EPIC® TOOL DIE D=3.6/16mm², EPIC® TOOL DIE ENDSLEEVE 25mm², EPIC® TOOL DIE H-D 1.6 H-BE 2.5 MC 2.5, EPIC® TOOL DIE H-D 1.6 stamp 0.14-0.5mm², EPIC® TOOL DIE H-D 1.6 stamp 1.5-2.5mm², EPIC® TOOL DIE KOAX, EPIC® TOOL DIE MC 3.6 machined 1.5-2.5mm², EPIC® TOOL DIE MC 3.6 machined 16mm², EPIC® TOOL DIE MH 4.0 machined 4-10mm² |
| Packaging type | Case |
| Brand | EPIC® |
| Delivery Unit | 1.000 |
| Weight | 1.142 kg |
电气特性
产品设计
| For cross-section (max.) | 25 |
| For cross-section (min.) | 0.14 |
产品特点
认证和标准
| TÜV certified |
|
| CE marked |
|
| GS certified |
|
| Product standard ISO | ISO 6722 |
| VDE certified |
|
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from EPIC® Jaw Crimp tool
| Article number | For cross-section (min.) | For cross-section (max.) | Crimping profile |
|---|---|---|---|
| 11147000 | 0.14 | 25 |
