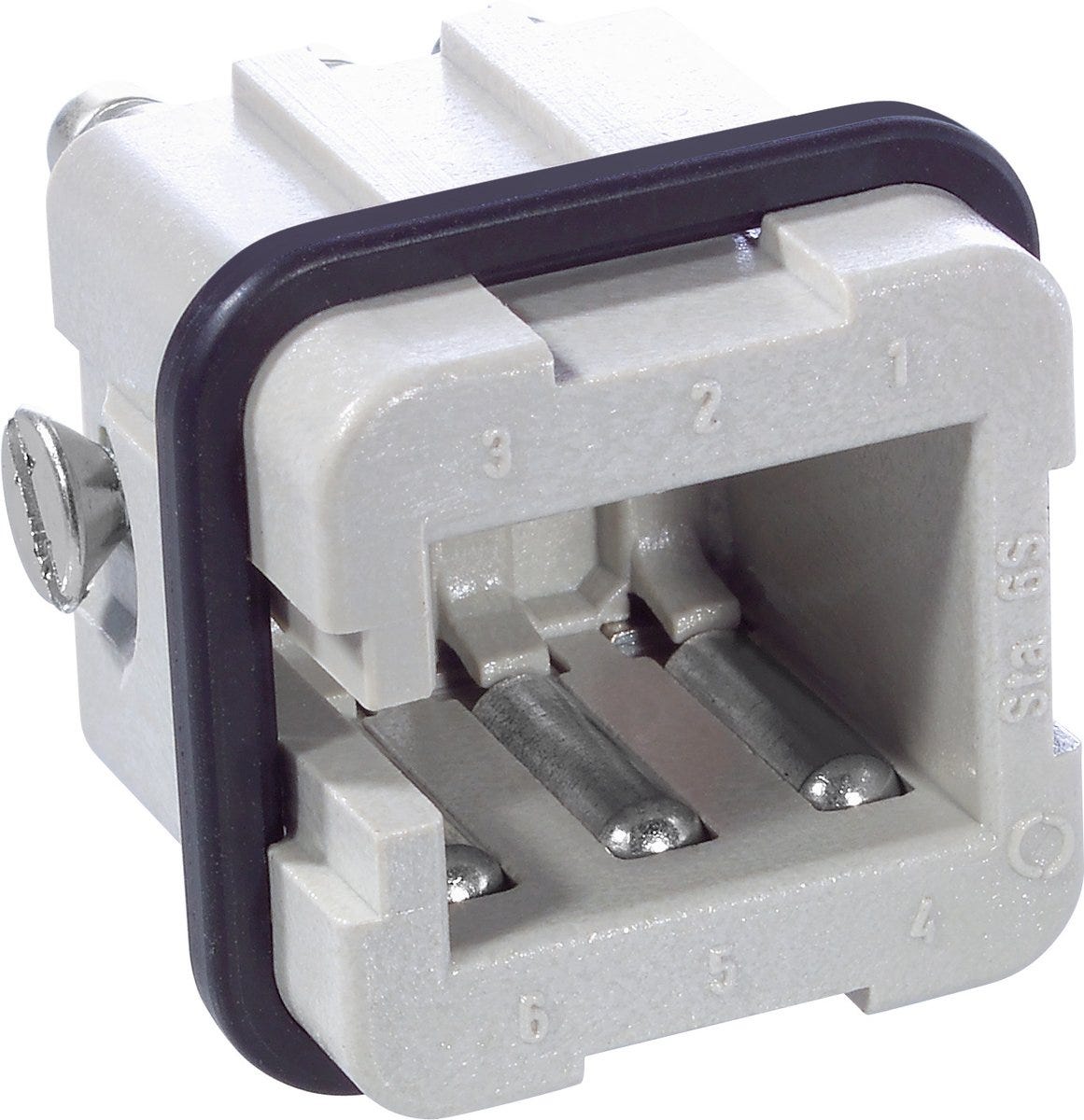

EPIC® STA 6 SL
Insert with solder termination Pin; Number of contacts: 6; Design size: 3A; 24 V AC rms according to IEC; 10 A according to UL/CSA; For cross-section (min./max.): 0.5mm² - 1.5mm²; Contacts included; Polycarbonate
EPIC® STA 6 SL
SGD 9.59
/
EPIC® STA 6 SL
SGD 9.59
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
Certificate
UL recognized
福利
good contact due to the strong contact springs
The proven STA inserts with spring contacts
申请书
Control systems, Rack technology, Electronic laboratory
技术属性
一般信息
| Brand | EPIC® |
| Contacts included |
|
| Product type | Insert with solder termination |
| Design size | 3A |
| Delivery Unit | 10.000 |
| Weight | 0.015 kg |
电气特性
| Rated current | 10 A according to UL/CSA, 10 A according to IEC |
| Protective conductor integrated into insert |
|
| Rated voltage | 24 V AC rms according to IEC, 60 V DC according to IEC, 48 V AC rms / DC according to UL/CSA |
| Max. contact resistance | 3 |
产品设计
| EMC screening |
|
| With wire protection |
|
| Colour | grey |
| Connectable conductor cross section min. (AWG) | 20 AWG |
| Max. connectable conductor cross-section AWG | 16 AWG |
| Min. connectable conductor cross-section (mm2) | 0.5 |
| Number of contacts | 6 |
| Contact material | Brass |
| With protective conductor |
|
| Max. connectable conductor cross-section (mm2) | 1.5 |
| Contact material, short form | CuZn |
| Contact insert type | Plug |
| Material contact surface | Tin-plated |
| Contact insert material, short form | PC |
| Contact variant | Pin |
| Connector type | Plug |
| Material contact insert | Polycarbonate |
| Contact manufacturing method | Stamped |
| Number of PE contacts | 0 |
| Conductor connection type | Solder termination |
| Contact insert without contacts |
|
| Screen contact |
|
| Number of signal contacts | 0 |
| Number of power contacts | 4 |
产品特点
| Flame-retardant |
|
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 80 |
| Min. number of insertion cycles | 100 |
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Pollution degree | 3 |
| Vibration protection |
|
| Flame retardance according to | UL 94 V-0 |
| Halogenfree |
|
认证和标准
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| UL category control number | ECBT2 |
| Tested for fire protection for railway vehicles |
|
| TÜV certified |
|
| Product standard according to IEC | IEC 61984 |
| UR certification | according to UL 1977 (e-file number: E75770) |
| CE marked |
|
| VDE certified |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
