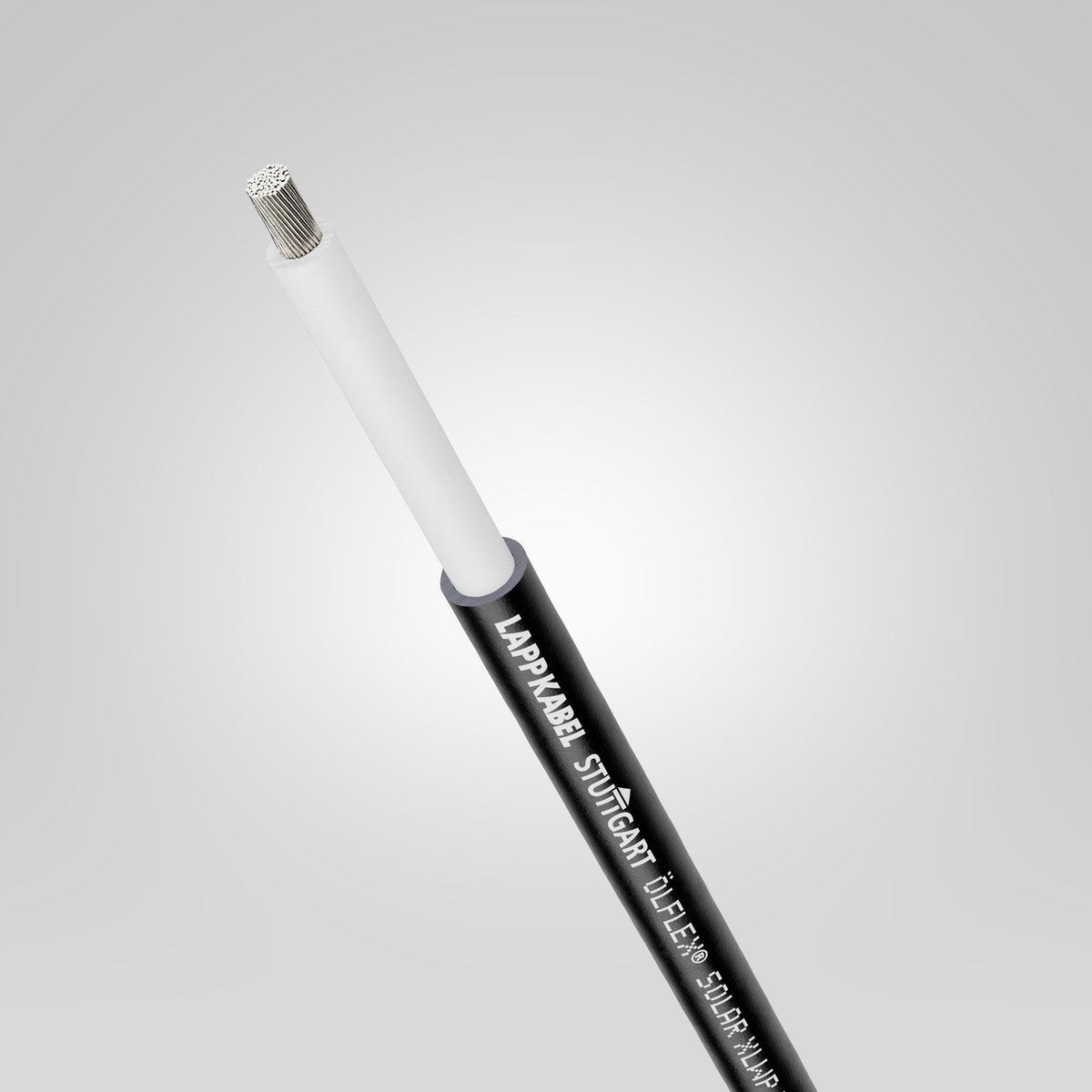

ÖLFLEX® SOLAR XLWP 1x6 WH/BKRD
Solar cable; 1X6; black/red; 6.4 mm; Operating voltage (max.): 1,8kVDC; Electron beam cross-linked polymer compound; Flexible; Permanent underwater use up to: 10m; ; HalogenfreeImpact resistance test according to: UL854; Crushing resistance test according to: UL854
ÖLFLEX® SOLAR XLWP 1x6 WH/BKRD
Solar cable; 1X6; black/red; 6.4 mm; Operating voltage (max.): 1,8kVDC; Electron beam cross-linked polymer compound; Flexible; Permanent underwater use up to: 10m; ; HalogenfreeImpact resistance test according to: UL854; Crushing resistance test according to: UL854
ÖLFLEX® SOLAR XLWP 1x6 WH/BKRD
SGD 4.82
/
ÖLFLEX® SOLAR XLWP 1x6 WH/BKRD
SGD 4.82
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
halogen-free
chemical resistance
uv-resistant.
outdoor area
under water
Product Carbon Footprint
Certificate
CE marked
TÜV certified
福利
Extruded colour stripe serves as reverse polarity protection during installation
The alternative for water coverage, e.g. due to elevated water line caused by flooding, Reduction of flame propagation and of toxic combustion gases in the event of fire, Robust against mechanical impacts, Exact quantity control during installation by meter marking on the cable sheath
申请书
Photovoltaic systems with DC system voltage up to 1800 V, For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter, In September 2018 and based on AD8 watertightness, this product was recommended by Solartechnik Bayern for underground use typically realized via underground conduits/ ducts (...) for PV applications, Flexible or building-integrated PV systems, Underground use without protection conduit/ duct in professionally built cable trench with at least 50 cm of back-fill soil (70 cm underneath roads), above indicating tape, above covering plastic slab, above at least 10 cm of covering sand layer, above the cable laid on at least 10 cm high sand bed layer
技术属性
一般信息
| Brand | ÖLFLEX® |
| Product type | Solar cable |
| Copper index | 57.600 kg/km |
| Copper index (lb) | 387.056 lb |
| Weight | 90 kg/km |
电气特性
| Operating voltage (max.) | 1,8 kV DC |
| Nominal voltage | U0/U: 1 /1 kV AC rms according to IEC, U0/U: 1,5/1,5 kV DC according to IEC |
| Max. conductor resistance at 20°C | 3.39 Ω/km |
| Test voltage | 6.5 kV |
| Short-circuit temperature [5s] | 250 |
| Current rating according to | EN 50618, HD 60364-5-52 |

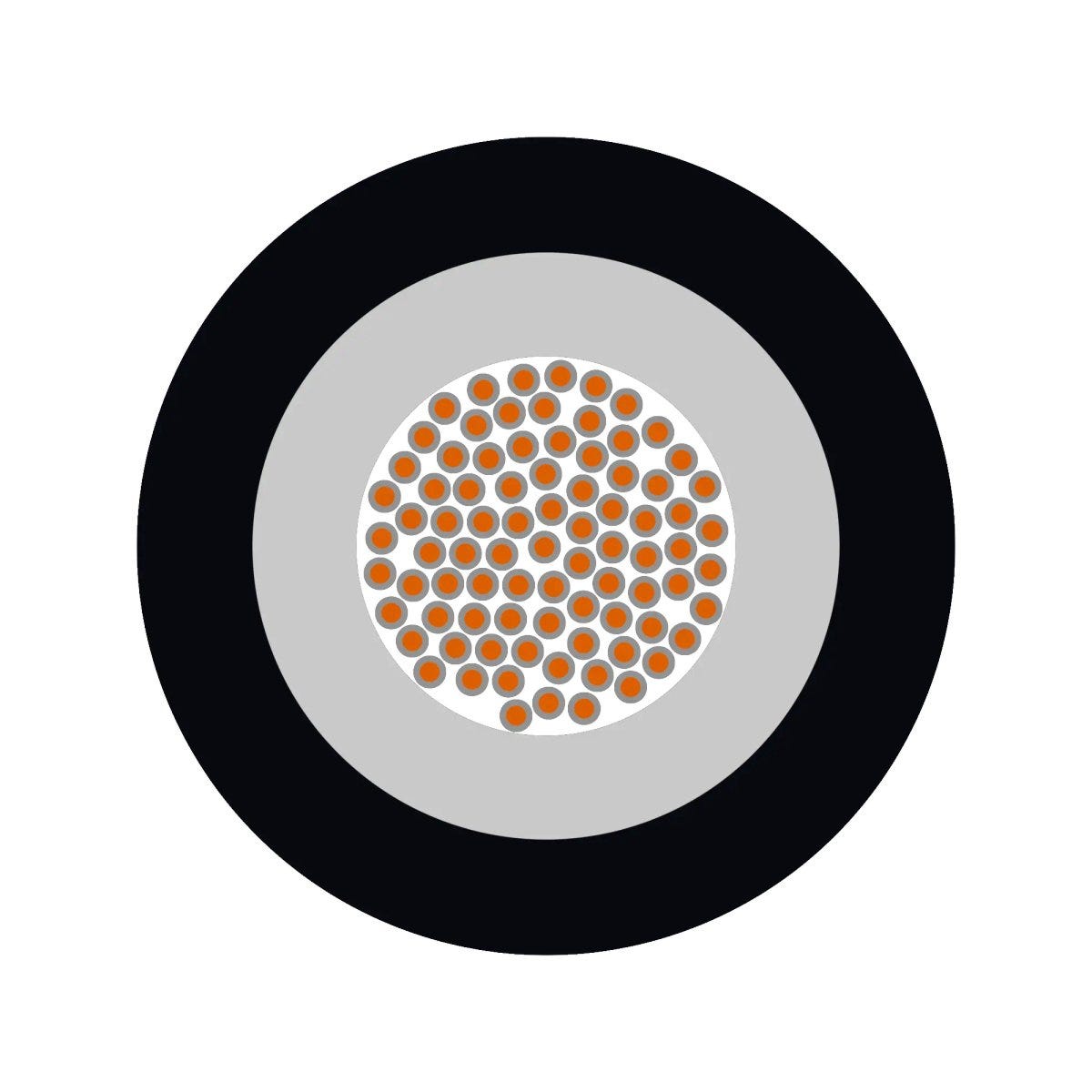

产品设计
| Nominal core diameter | 4.4 |
| Conductor design | IEC 60228 class 5: fine-wire |
| Nominal outer diameter | 6.4 mm |
| Conductor material | Tin-plated copper |
| With inner sheath |
|
| Harmonised design | H1Z2Z2-K |
| Min. outer diameter | 6.3 |
| Nominal conductor cross-section (metric) | 6 mm² |
| Cable dimension | 1X6 |
| Shape of cable | Round |
| Outer sheath colour | black/red |
| Insulation colour | white |
| Number of cores | 1 |
| Core insulation basic material | Electron beam cross-linked polymer compound |
| Basic material of outer sheath | Electron beam cross-linked polymer compound |
| Including protective earth |
|
| Core insulation basic material, short form | XLPE |
| With armouring |
|
| Max. outer diameter | 6.7 |
| Basic material of outer sheath, short form | XLPE |
产品特点
| Flame-retardant |
|
| Halogen-free according to | EN 50525-1 Annex B, IEC 60754-1, EN 50267-2-1, IEC 60754-2, EN 50267-2-2 |
| Permanent underwater use up to | 10 |
| Corrosiveness of combustion gases according to | IEC 60754-2, EN 50267-2-2 |
| Ozone-resistant according to | EN 50396, method B |
| Storage temperature min. | -40 |
| Chemical resistant |
|
| Ozone resistant |
|
| Installation temperature min. | -25 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 26.8 mm |
| Weather-resistant according to | EN 50618 |
| Application area | Flexible, Fixed installation |
| max. conductor temperature, occasionally moved | -25 °C to 120 °C max. conductor temperature: according to EN |
| Low smoke density according to | IEC 61034-2 |
| Oil-resistant |
|
| Max. storage temperature | 40 |
| Impact resistance test according to | UL 854 |
| Minimum bending radius in mm, occasionally flexing | 26.8 mm |
| weather resistant |
|
| Minimum bending radius, stationary | 4 x outer diameter |
| Water resistant |
|
| Minimum bending radius, occasionally flexing | 4 x outer diameter |
| Temperature, fixed installation | -40 °C to 120 °C max. conductor temperature: according to EN |
| Flame retardance according to | IEC 60332-1-2 |
| Permanently immersible in water |
|
| UV-resistant according to | EN 50618 |
| Crushing resistance test according to | UL 854 |
| Halogenfree |
|
认证和标准
| Product standard DIN / EN | EN 50618 |
| TÜV certified |
|
| HAR-certified |
|
| CE marked |
|
| EAC certification number | ЕАЭС RU С-DE.АЮ64.В.00091/19 |
| EAC-certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from ÖLFLEX® SOLAR XLWP
| Article number | Conductor cross-section (mm2) | Outer sheath colour | Imp outer dia cable sheath nom | Nominal outer diameter | Copper index calc export | Weight |
|---|---|---|---|---|---|---|
| 1023601 | 4 | black | 5.8 | 70 kg/km | ||
| 1023602 | 6 | black | 6.4 | 90 kg/km | ||
| 1023603 | 10 | black | 7.6 | 140 kg/km | ||
| 1023604 | 16 | black | 9.1 | 210 kg/km | ||
| 1023621 | 4 | black/red | 5.8 | 70 kg/km | ||
| 1023622 | 6 | black/red | 6.4 | 90 kg/km | ||
| 1023623 | 10 | black/red | 7.6 | 140 kg/km | ||
| 1023624 | 16 | black/red | 9.1 | 210 kg/km | ||
| 1023625 | 4 | black/blue | 5.8 | 70 kg/km | ||
| 1023626 | 6 | black/blue | 6.4 | 90 kg/km |
