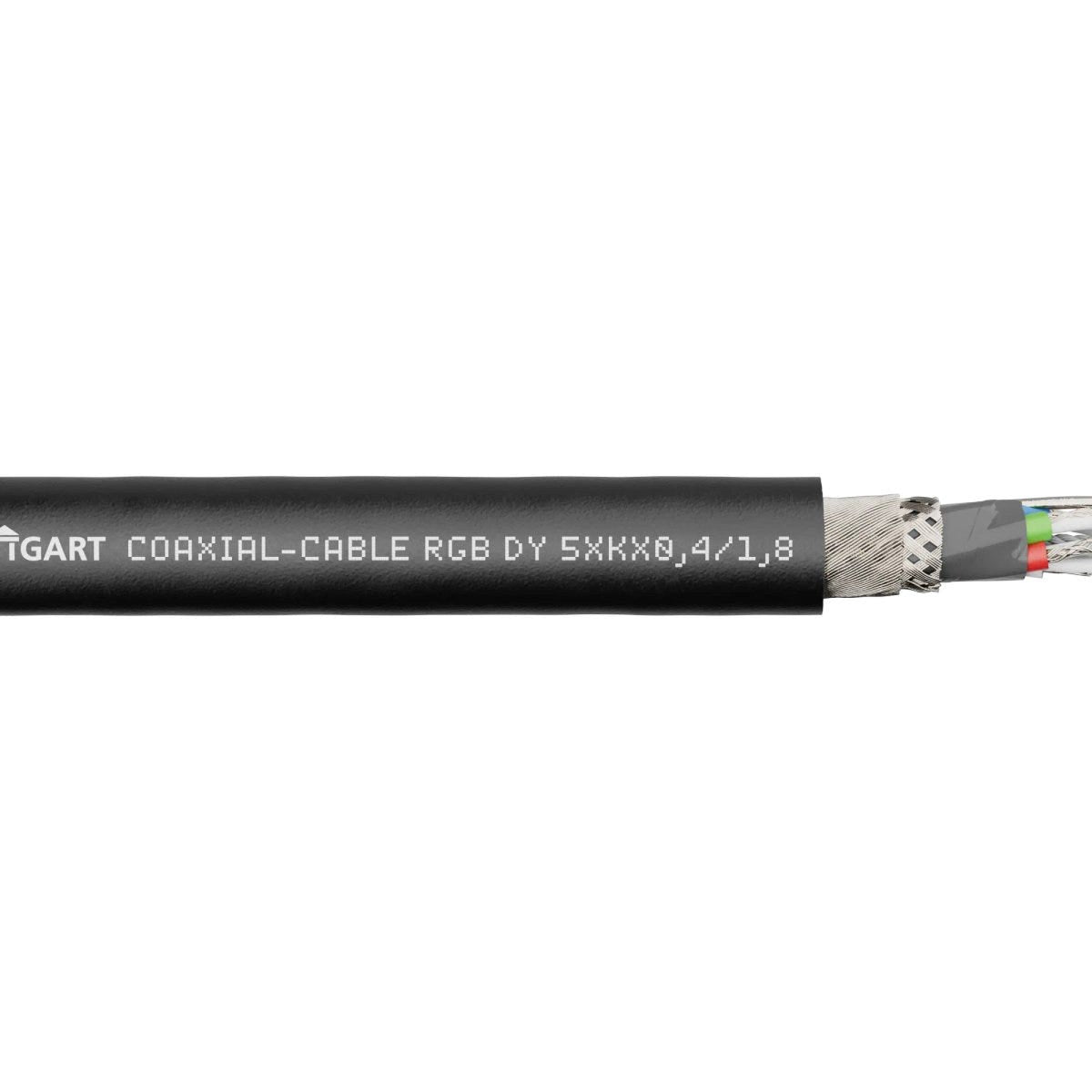

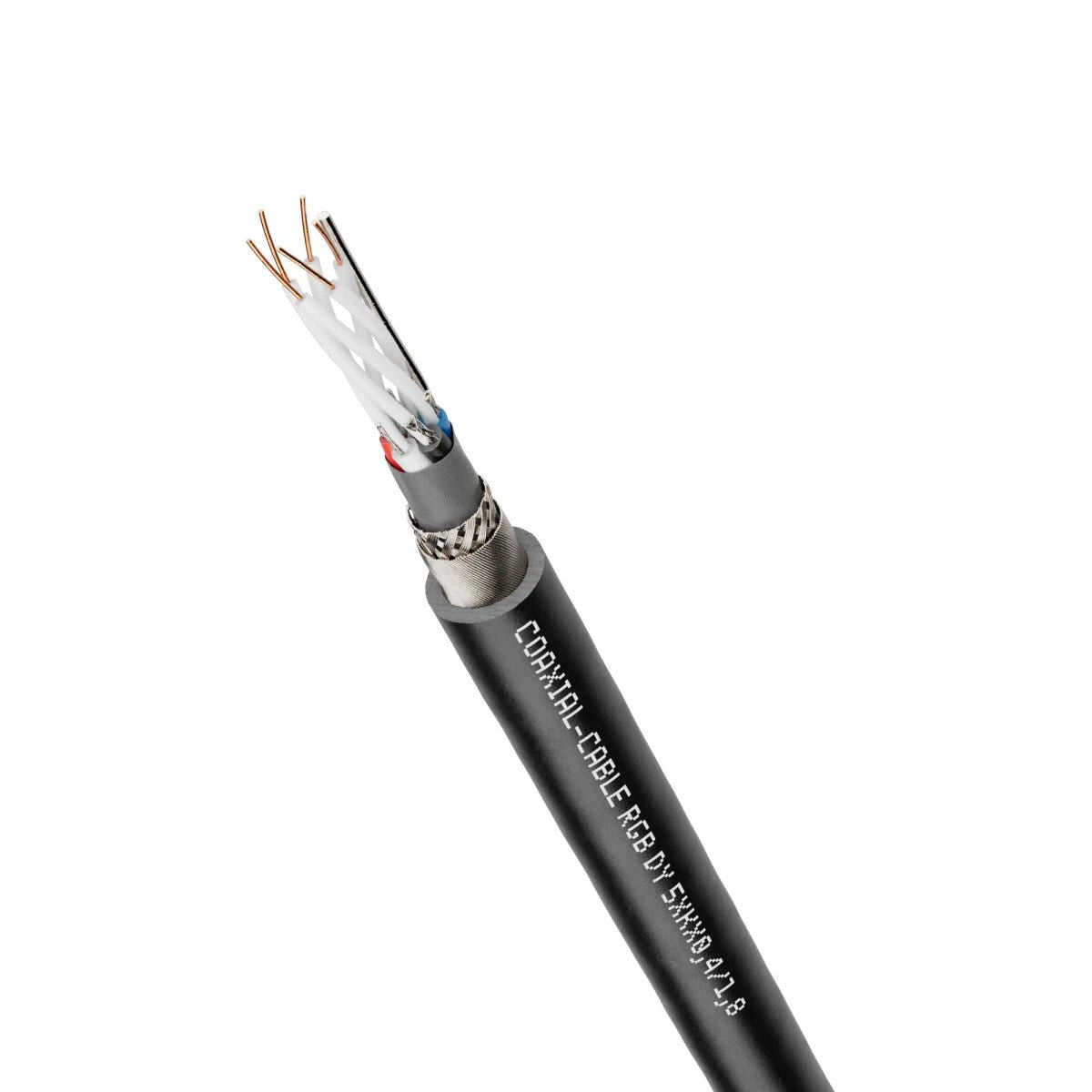

COAXIAL-CABLE RGB DY 5xKx0,4/1,8
Coaxial cables; RGB DY; Fixed Installation;
COAXIAL-CABLE RGB DY 5xKx0,4/1,8
SGD 9.10
/
COAXIAL-CABLE RGB DY 5xKx0,4/1,8
SGD 9.10
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
icon sturgeon signal
Certificate
CE marked
福利
Low attenuation ensures a longer transmission distance, Transmission of the red (R), green (G) and blue (B) colour signals
申请书
Colour monitor cable for PCs and CAD workstations, process visualisation, For fixed installation in rooms (RGB CY..x Kx 0.4/1.8), For highly flexible applications in power chains (energy supply chains) and continuously moving machine components (RGB-FD..x Kx 0.6L/2.4)
技术属性
一般信息
| Product type | Coaxial cables |
| Copper index | 60.000 kg/km |
| Copper index (lb) | 403.100 lb |
| Weight | 132 kg/km |
电气特性
产品设计
| Shape of cable | Round |
| Nominal outer diameter | 9.5 mm |
| Type of coaxial cables | RGB DY |
| Type of overall screen | Tin-plated copper braiding |
| Conductor count/size | RGB DY 5xKx0,4/1,8 |
| Basic material of outer sheath | Polyvinylchloride |
| Including protective earth |
|
| Inner conductor material | Bare copper |
| Shielded |
|
| Nominal conductor diameter (mm) | 0.4 |
| Basic material of outer sheath, short form | PVC |
产品特点
| Flame-retardant |
|
| Application area | Fixed installation |
| Oil-resistant |
|
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| UV-resistant |
|
| Flame retardance according to | IEC 60332-1-2 |
| Halogenfree |
|
认证和标准
| CE marked |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.РА01.В.47116/21 |
| EAC-certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from Coaxial cables RGB
| Article number | Type of coaxial cables | Application area | Mutual capacitance | Inner conductor material | Imp diam cond in nom | Nominal conductor diameter (mm) | Outer conductor second layer | Basic material of outer sheath, short form | Copper index calc export | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 0034245 | RGB CY | Fixed installation | Bare copper | 0.4 | PVC | 97 kg/km | ||||
| 0034246 | RGB DY | Fixed installation | Bare copper | 0.4 | PVC | 132 kg/km | ||||
| 0034247 | RG FD | Cable chain | Bare copper | 0.6 | PUR | 100 kg/km |
