AB-C5-DSI-M12MS-M12FS-M16-SH

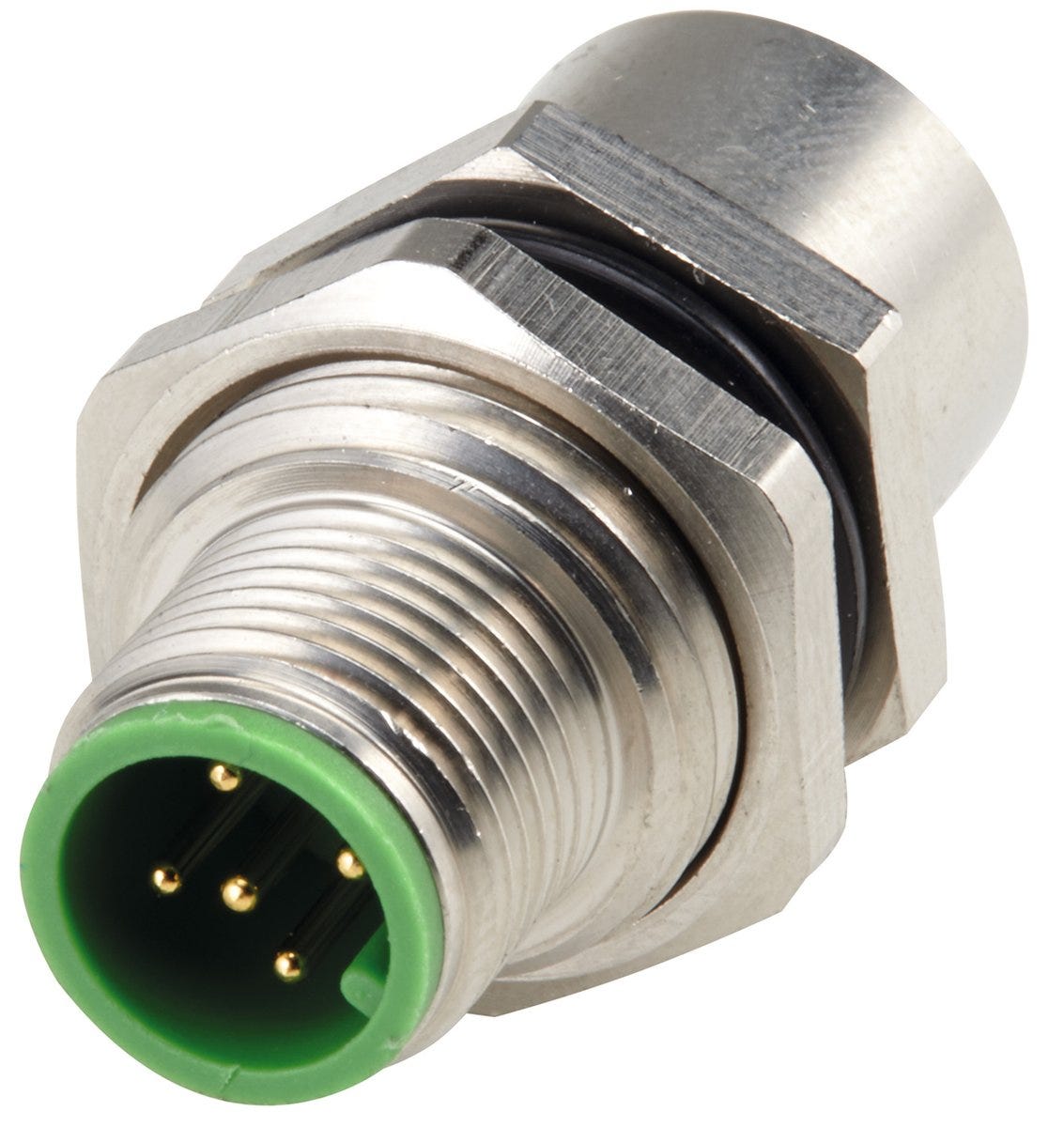

Data connector; Sensor/Actuator, CAN, DeviceNet; M 12 (A-coded); Plug/Socket; Straight (180 °)
AB-C5-DSI-M12MS-M12FS-M16-SH
SGD 69.18
/
AB-C5-DSI-M12MS-M12FS-M16-SH
SGD 69.18
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
icon sturgeon signal
Certificate
DeviceNet
CANopen
Benefits
When connected, protection class IP 67 can be achieved.
Applications
For connecting devices to control cabinets or machine housings
For universal data and signal transmission in the area of sensors and actuators at field level.
Technical Attributes
General Information
| Brand | EPIC® |
| Product type | Data connector |
| valid fieldbus or Ethernet system | Sensor/Actuator, CAN, DeviceNet |
| Delivery Unit | 1.000 |
| Weight | 0.03 kg |
Electrical Characteristics
| Rated current | 4 A according to IEC |
| Over voltage category | II |
| Rated voltage | 24 V DC according to IEC |
Product Design
| Coding element material | Polyamide |
| Total length | 35 |
| Design connector housing | Straight |
| Material coding element shortname | PA |
| Connector format | M 12 |
| Thread type | Metric |
| Thread size | M 12 |
| Housing colour | Metal |
| Number of contacts | 5 |
| Connector diameter | 18 |
| Status indication |
|
| Contact material | Copper-tin |
| Type of connection | Plug to socket |
| Shielded |
|
| Coding type | A-coded |
| Contact material, short form | CuZn |
| Material contact surface | Gold-plated |
| Seal type | Sealing ring |
| Connector housing angle | 180 |
| Coded |
|
| Contact coating material, short form | Au |
| Connector type | Plug/socket |
| Housing variant | Control cabinet bushing |
| With thread |
|
| Reusable |
|
| Locking type | Screw Thread |
Product Characteristics
| IP protection rating | IP 67 |
| UV-resistant |
|
| Operating temperature min. | -25 |
| Operating temperature max. | 85 |
| Pollution degree | 3 |
| Vibration protection |
|
Certifications and Standards
| cUR recognized |
|
| CSA certified |
|
| Product standard according to IEC | M12 according to IEC 61076-2-101 |
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
Documentation
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- DeviceNet is a registered trademark of the user organisation ODVA.
Product Family List
All articles from EPIC® DATA CAN M12/M12
| Article number | Delivery Unit |
|---|---|
| 22262020 | 1.000 |
