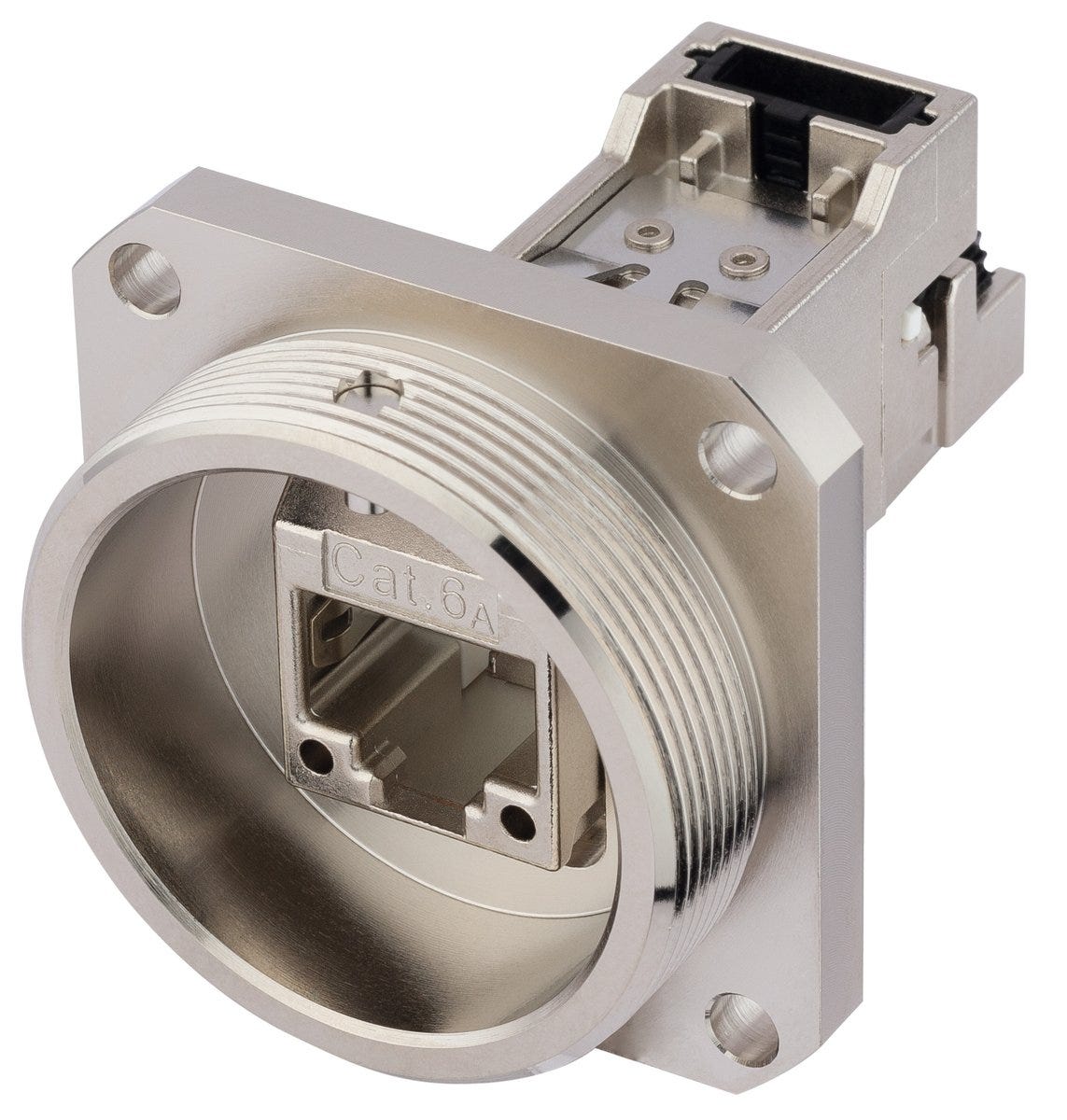

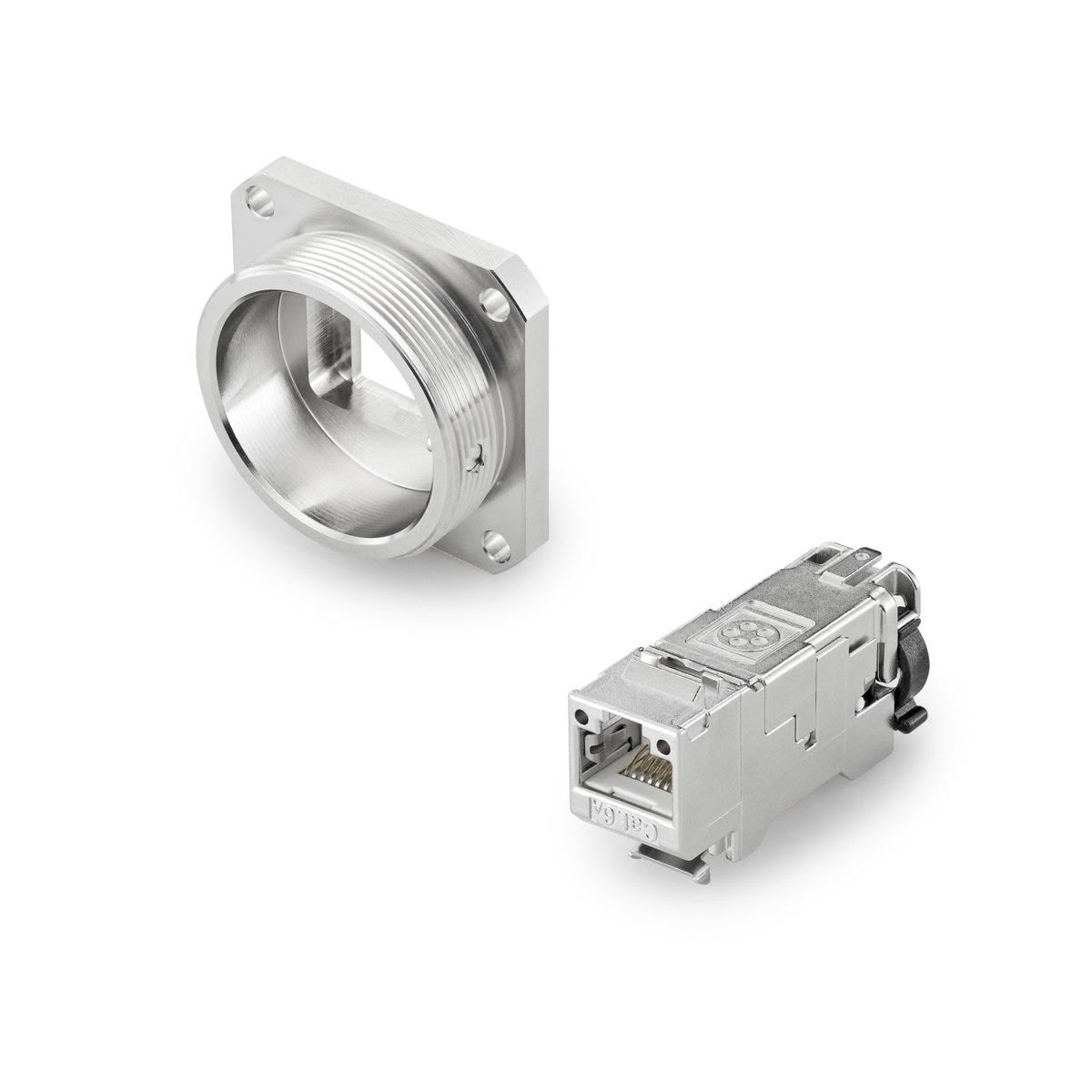

ED-IE-RJ45F-6A-B-68-FC
Data connector; RJ 45; Socket; Straight
ED-IE-RJ45F-6A-B-68-FC
SGD 129.15
/
ED-IE-RJ45F-6A-B-68-FC
SGD 129.15
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
uv-resistant.
Benefits
Secure data transmission even in harsh environments
In combination with the mating connector, protection class IP 68 is achieved
Stability thanks to die-cast zinc metal housing
Easy cable connection thanks to insulation displacement technology
Low error potential during assembly thanks to core manager with colour coding according to EIA/TIA standard (T568B)
The electrically conductive coating of the shielded connector ensures optimum protection against electromagnetic interference (EMC) and low impedance dissipation of interference signals (only applies to the plug variant)
Includes plastic protective cap that protects the connector from dust when not plugged in (only applies to the plug variant).
Applications
For data transmission in the frequency range up to 600 MHz
For use with Cat.6A cables
Suitable for all LAN networks and Ethernet applications up to 10GBASE-T
Suitable for outdoor use.
Technical Attributes
General Information
| Product type | Data connector |
| Delivery Unit | 1.000 |
| Weight | 0.05 kg |
Electrical Characteristics
Product Design
| With thread |
|
| Dust protection cap |
|
| Coded |
|
| Design connector housing | Straight |
| Connector type | Socket |
| Connector format | RJ 45 |
| Screen contact |
|
| Shielded |
|
Product Characteristics
| UV-resistant |
|
Certifications and Standards
| UL listed |
|
| CE marked |
|
| cUR recognized |
|
| UL recognized |
|
| cUL listed |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
Documentation
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
