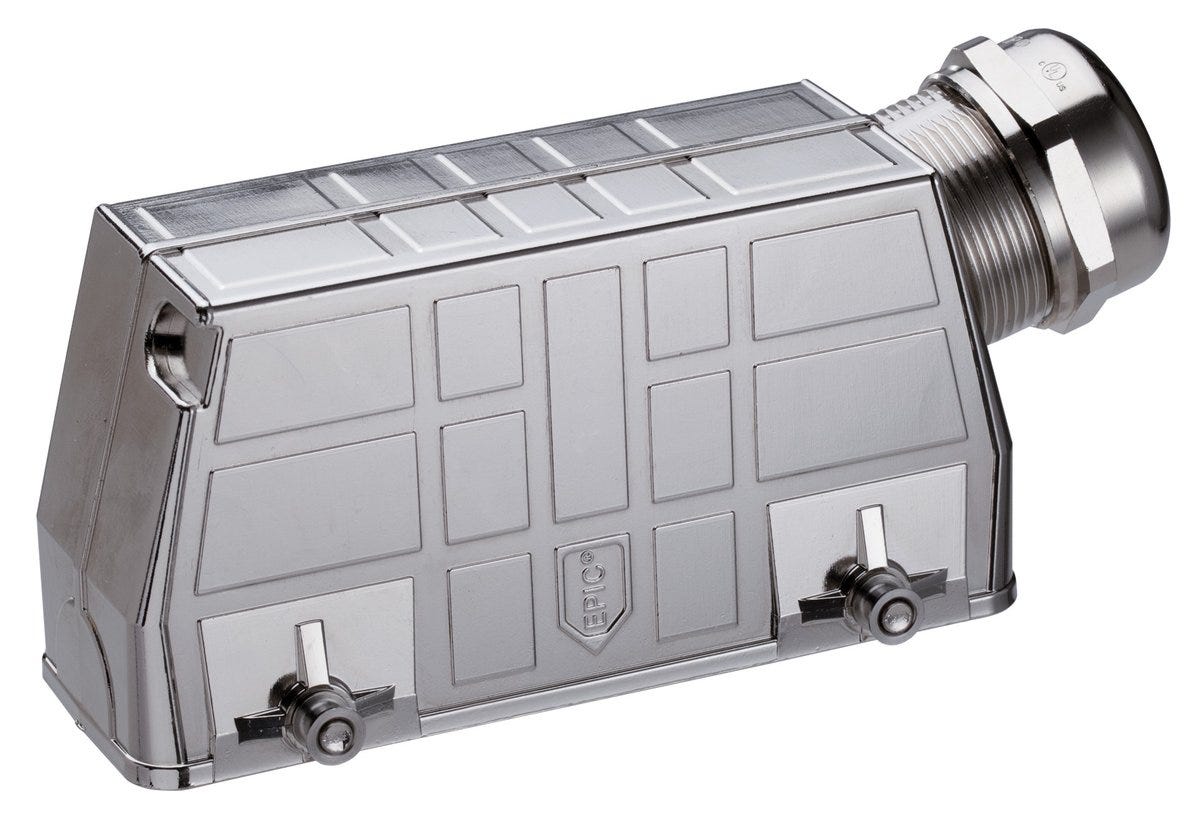

EPIC® ULTRA H-B 24 TS QB 7-15 (1)
Hood; Design size: 24B; Connector design: Standard; Double lever; Number of cable entries: 1; Zinc alloy, Nickel-plated; EMC screening; IP protection rating mounted: IP 65
EPIC® ULTRA H-B 24 TS QB 7-15 (1)
SGD 109.87
/
EPIC® ULTRA H-B 24 TS QB 7-15 (1)
SGD 109.87
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
halogen-free
corrosion resistant
uv-resistant.
icon sturgeon signal
Certificate
CE marked
VDE certified
VDE Reg.-Nr. B437
UR recognised, UL recognised
Benefits
The arrow is a new design element on the housing surface, making it easy to find and easy to connect in tight spaces and possibly poorly visible areas of application
VDE-tested quality
UL certification according to technical data enables the product to be used on the North American market
The hood can be connected with many standard housings (mount base, surface-mount base or cable coupler housings)
With side cable outlet for orderly cable laying and to prevent the cable from bending too much
The integrated brass SKINTOP® cable gland is used for sealing and strain relief cable entries. Compared to housings where the cable gland is added separately, the overall size of the housing is more space-saving
For article names with the addition “BRUSH”, the integrated cable gland is supplemented by our innovative SKINTOP® BRUSH brass brush, which enables 360° contacting of the copper stranded shielding and thus enables the interference signals to be deflected even more effectively. Brush wires enable easier assembly of the connector
and obtain the gap-free 360° coverage of the copper stranded shielding
The housing variants allow different clamping ranges (7 - 15 mm or 11 - 21 mm)
The locking is performed using a stainless steel double lever on the counter-housing
Meets protection class IP 65 when locked
Protection class classified according to NEMA 250 and tested pursuant to UL50E.
Applications
For protecting the connector insert against environmental influences
For connecting devices and machines to a power supply in various applications
With modular connector assembly, also suitable for signal and data transmission
Especially for environments where the product comes into contact with water, cleaning agents and saline substances
Especially for environments where electromagnetic compatibility (EMC) is required
For use with many EPIC® rectangular connector inserts or module inserts
Withstands high chemical and mechanical stress
Suitable for outdoor use.
Technical Attributes
General Information
| Brand | EPIC® |
| Product type | Hood |
| Design size | 24B |
| Delivery Unit | 1.000 |
| Weight | 0.311 kg |
Electrical Characteristics
Product Design
| Locking bolt variant | Bolts for double lever |
| Min. cable clamping range | 7 |
| Total length | 119 |
| Cable gland material | Brass |
| Number of cable entries | 1 |
| Design connector housing | Angled |
| Thread type | Metric |
| Cable gland material, short form | CuZn |
| EMC screening |
|
| With cable gland |
|
| With hinged lid |
|
| Overall width | 42 |
| Housing colour | silver |
| Total height | 61 |
| Housing coating | Nickel-plated |
| Number of side cable entries | 1 |
| Collar material | Zinc alloy |
| Connector design | Standard |
| Number of locking bolts | 4 |
| Housing variant | Hood |
| Locking bolt material | Stainless steel |
| Housing base material | Zinc alloy |
| With thread |
|
| With collar |
|
| Locking type | Double lever |
| With lever |
|
| Screen contact |
|
| Max. cable clamping range | 15 |
Product Characteristics
| Corrosion-resistant |
|
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 100 |
| Salt spray test according to | DIN EN ISO 9227, method NSS, test duration 480 hours, IEC 60068-2-52 Sharpness Level 2 |
| Impact-resistant |
|
| Vibration protection |
|
| IP protection class plugged in | IP 65 |
| Corrosion-resistant according to | DIN EN 6988 |
| Protection class (IP), mounted | IP 65 |
| Halogenfree |
|
Certifications and Standards
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| TÜV certified |
|
| Product standard according to IEC | IEC 61984 |
| UL listed |
|
| cUR certification | according to CSA C22.2 No. 182.3 (e-file number: E75770) |
| VDE registration number | B437 |
| CE marked |
|
| VDE certified |
|
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
