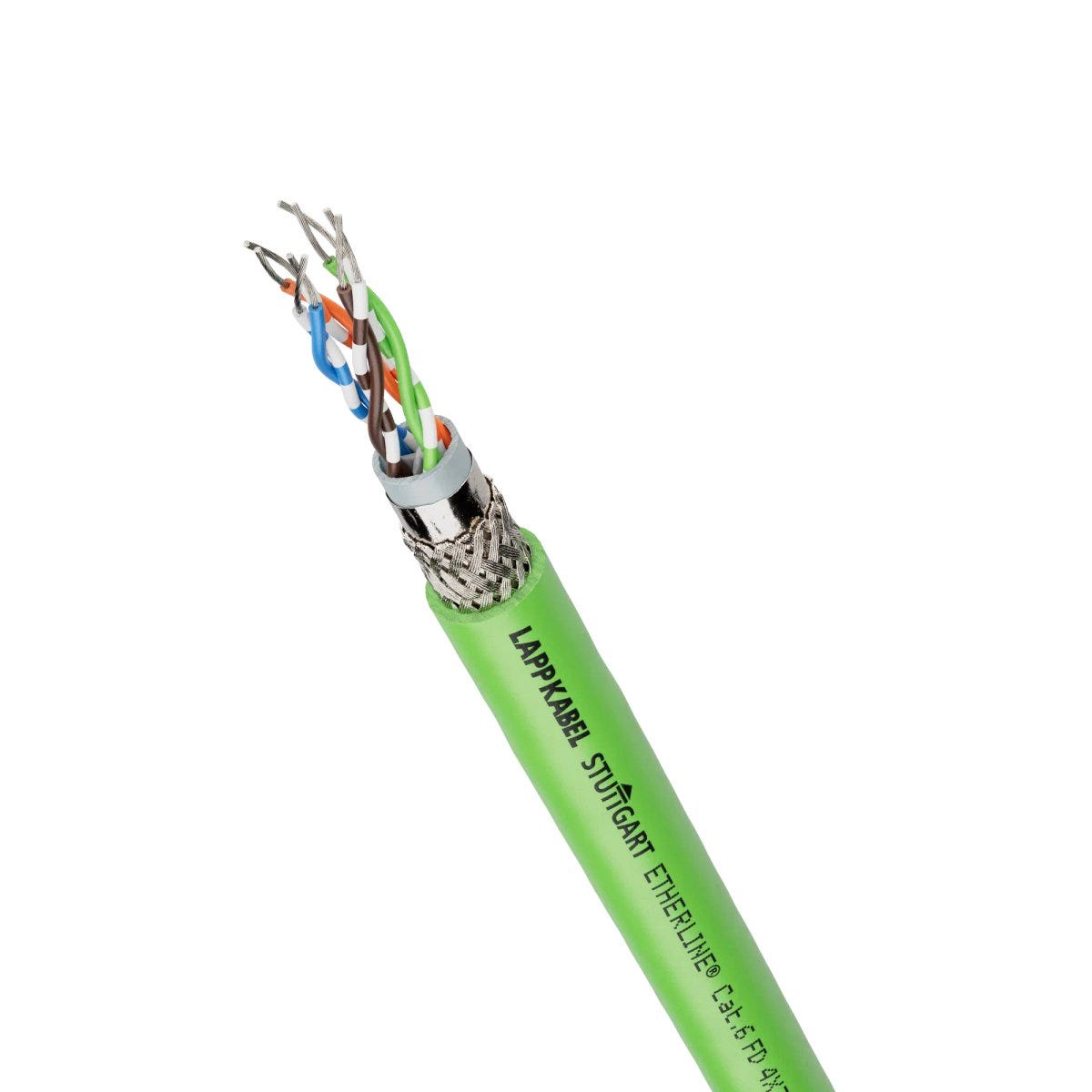

ETHERLINE® FD P CAT.6 4X2XAWG26
Ethernet cable; Cable chain, Flexible; EtherCAT, ETHERNET/IP; Cat.6; SF/UTP; PUR; Halogenfree; green
ETHERLINE® FD P CAT.6 4X2XAWG26
SGD 8.14
/
ETHERLINE® FD P CAT.6 4X2XAWG26
SGD 8.14
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant
halogen-free
oil resistant
uv-resistant.
icon powerchain
icon sturgeon signal
Product Carbon Footprint
Certificate
CE marked
cUL listed US, UL listed US
ETHERNET/IP
Benefits
Fast information exchange through Ethernet technology. , Cat. 6 performance up to 1 Gbit/s

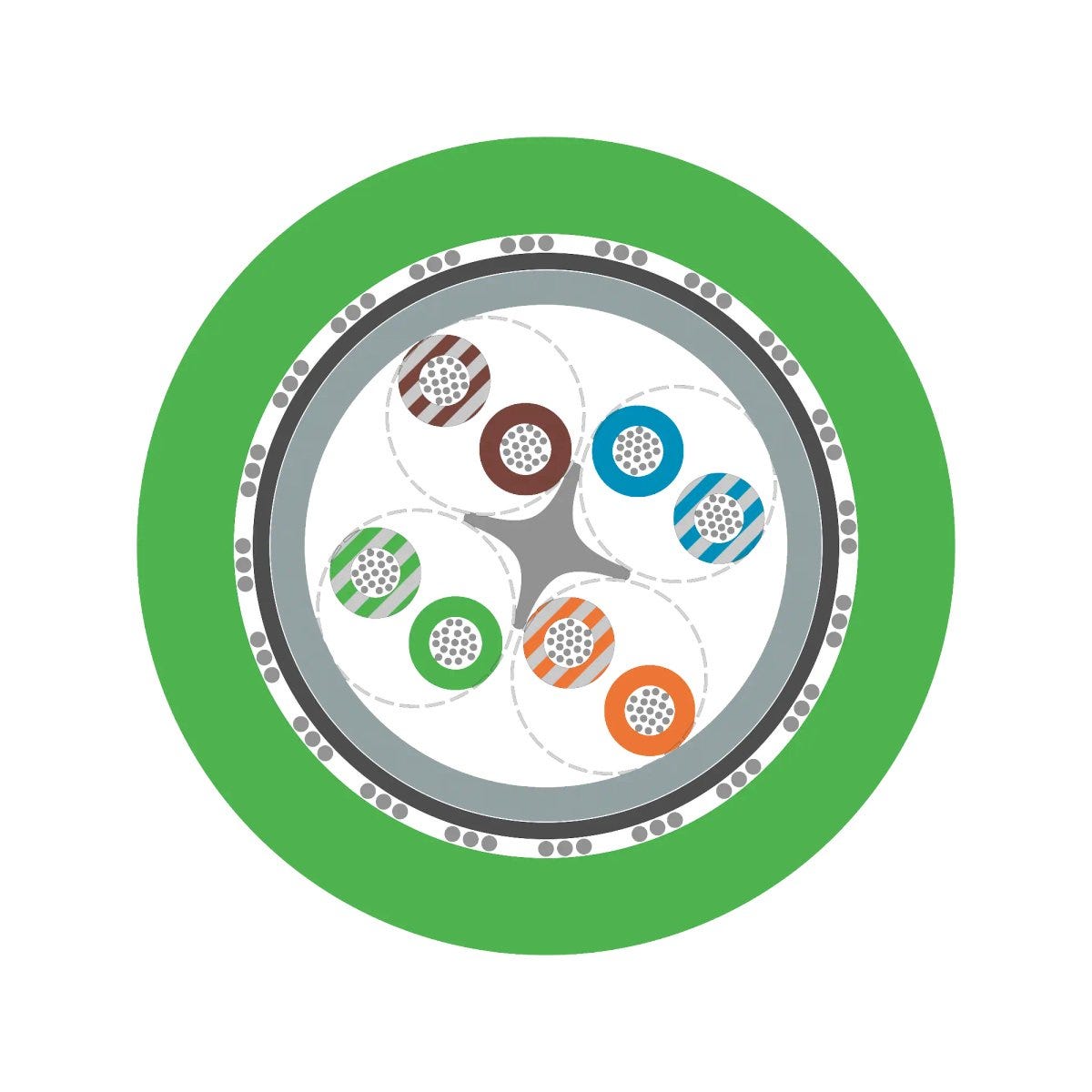

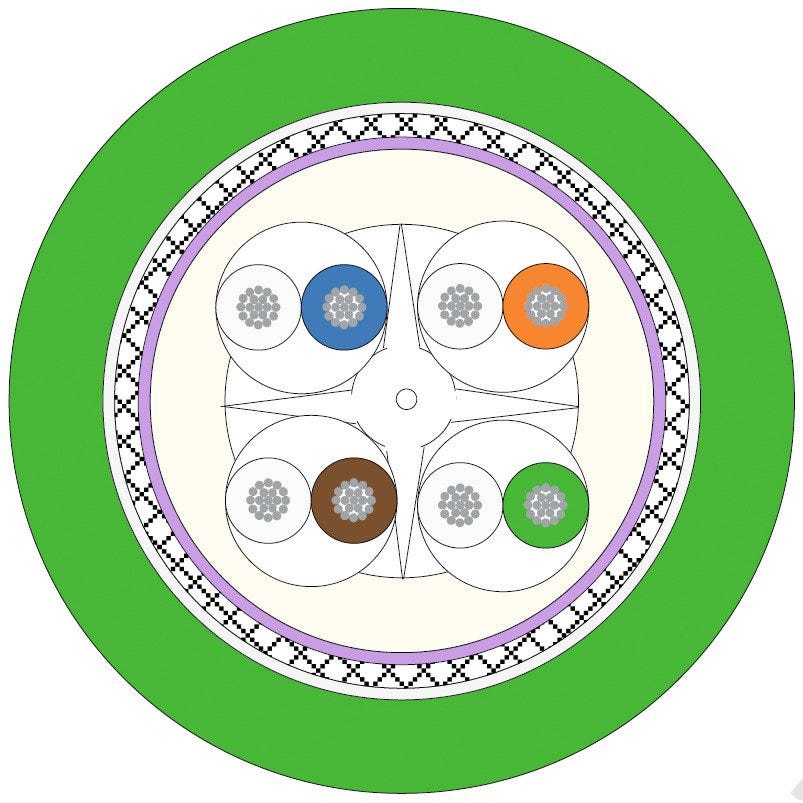

Highly flexible cable design with a cross separator to protect the core pairs for maximum mechanical stress
Durable, resistant product thanks to the outer sheath material that is resistant to abrasions, notches and cuts
Ideal protection against electromagnetic interference thanks to double shielding made of aluminium-laminated foil and copper stranded shielding with high degree of coverage (SF/UTP)
Successfully tested for over 4 million bending cycles in the cable chain
UL certification according to technical data enables the product to be used on the North American market.
Applications
The cable design allows flexible, constantly flexing use in moving machine parts and cable chains
Also suitable for EtherCAT and EtherNet/IP applications
Can be used in dry, damp and, especially, harsh and oily environments
The PU outer sheath withstands high mechanical loads
The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant.
Technical Attributes
General Information
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | EtherCAT, ETHERNET/IP |
| Copper index | 34.000 kg/km |
| Copper index (lb) | 213.000 lb |
| Weight | 63 kg/km |
Electrical Characteristics
| Maximum operating voltage (not for power transmission) | 125 |
| Nominal surge impedance | 100 |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE) |
| Loop resistance at 20°C | 280.0 |
| Possible data transmission rates | 1000 |
| Signal propagation speed (nom.) | 0.68 |
| Test voltage core/screening | 1.7 |
| Test voltage core/core | 1.7 |
| Rated voltage core to core | 50 V AC rms according to IEC, 300 V AC rms according to UL |
Product Design
| Nominal core diameter | 0.98 |
| Conductor design | 19-wire |
| Nominal outer diameter | 7.8 mm |
| Conductor material | Tin-plated copper |
| Min. outer diameter | 7.5 |
| Nominal conductor cross-section (metric) | 0.15 mm² |
| Conductor count/size | 4x2x26/19AWG |
| Optical degree of coverage of the stranded screening, overall screen | 85 |
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 4 |
| Outer sheath colour | green |
| Stranding type | Twisted-pair |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | SF/UTP |
| Cable sheath RAL colour | RAL 6018 |
| Type of overall screen | Aluminium-laminated plastic foil, Tin-plated copper braiding |
| Number of cores | 8 |
| Nominal conductor cross-section (AWG) | 26 AWG |
| Core insulation basic material | Polyolefin |
| Basic material of outer sheath | Polyurethane |
| Basic material of inner sheath | Halogen-free compound |
| Including protective earth |
|
| Core insulation basic material, short form | PO |
| Max. outer diameter | 8.1 |
| Number of wires | 19 |
| Basic material of outer sheath, short form | PUR |
| Additional stranding element | Cross separator |
Product Characteristics
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| Halogen-free according to | VDE 0472-815 |
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Minimum bending radius in mm, dynamic continuously flexing | 64.8 mm |
| Installation temperature min. | -30 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 32.4 mm |
| PWIS-free |
|
| Application area | Cable chain, Flexible |
| max. conductor temperature, occasionally moved | -30 °C to 70 °C max. conductor temperature: |
| Oil-resistant |
|
| Ethernet cable category | Cat.6 |
| Max. assembly temperature | 70 |
| Minimum bending radius, stationary | 4 x outer diameter |
| Temperature, fixed installation | -40 °C to 80 °C max. conductor temperature: |
| Flame retardance according to | UL VW-1, IEC 60332-1-2 |
| Oil resistance according to | EN 50363-10-2 |
| UV-resistant according to | EN ISO 4892-2, method A (colour change permitted) |
| Minimum bending radius, dynamic continuously flexing | 8 x outer diameter |
| Windable |
|
| For torsional load |
|
| Halogenfree |
|
Certifications and Standards
| cUR recognized |
|
| CSA certified |
|
| UL certification | UL CMX according to UL 444 (e-file number: E236660) |
| cUL listed |
|
| Flame retardance tested according to UN/ECE-R118 |
|
| UL listed |
|
| CE marked |
|
| cUL certification | cUL CMX (75°C) according to CSA C22.2 No. 214 (e-file number: E236660) |
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from ETHERLINE® Cat.6 FD
| Article number | Conductor count/size | Imp outer dia cable sheath nom | Nominal outer diameter | Number of cores | Copper index calc export | Weight |
|---|---|---|---|---|---|---|
| 2170488 | 4x2x26/19AWG | 7.8 | 8 | 63 kg/km |
