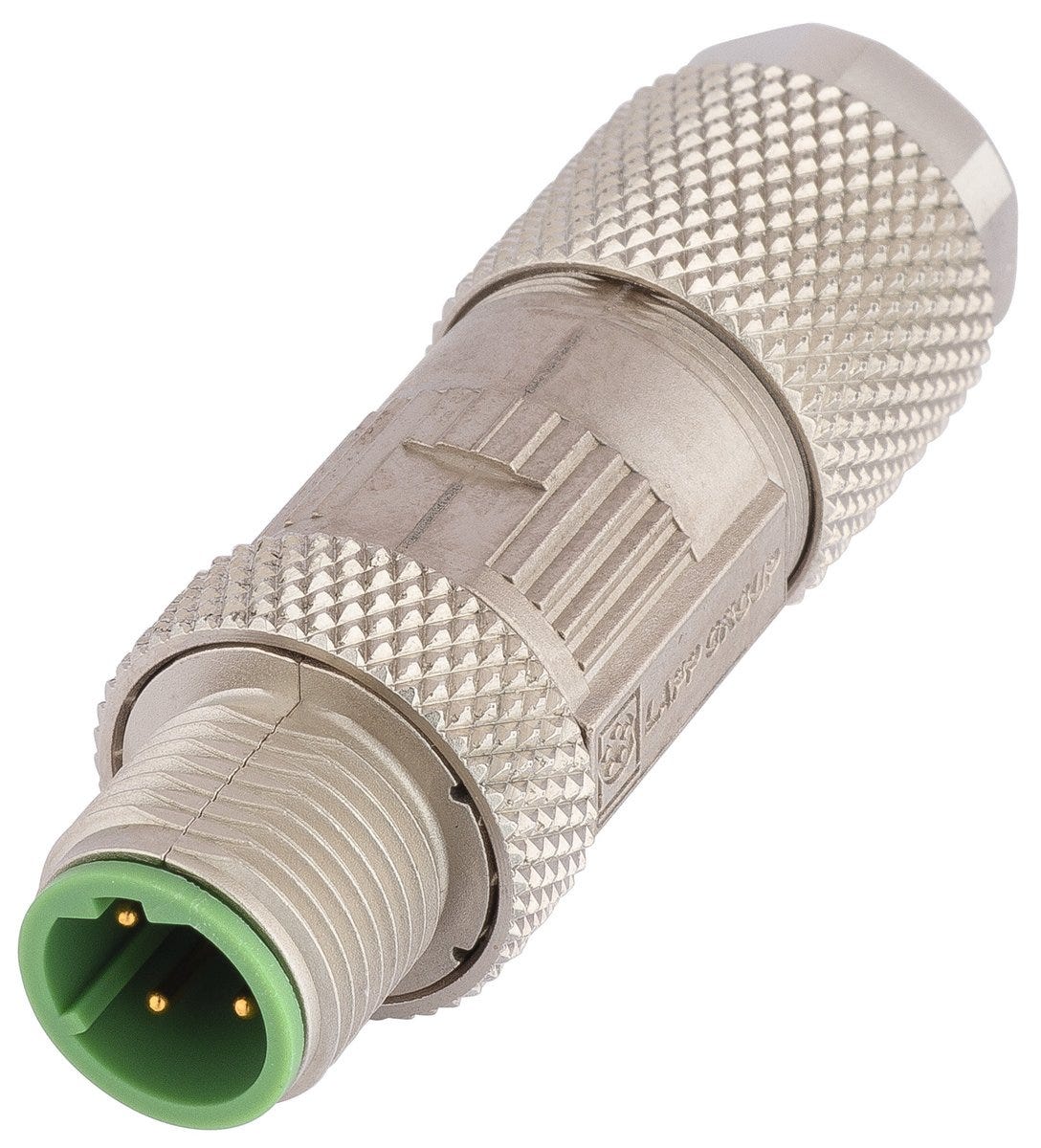

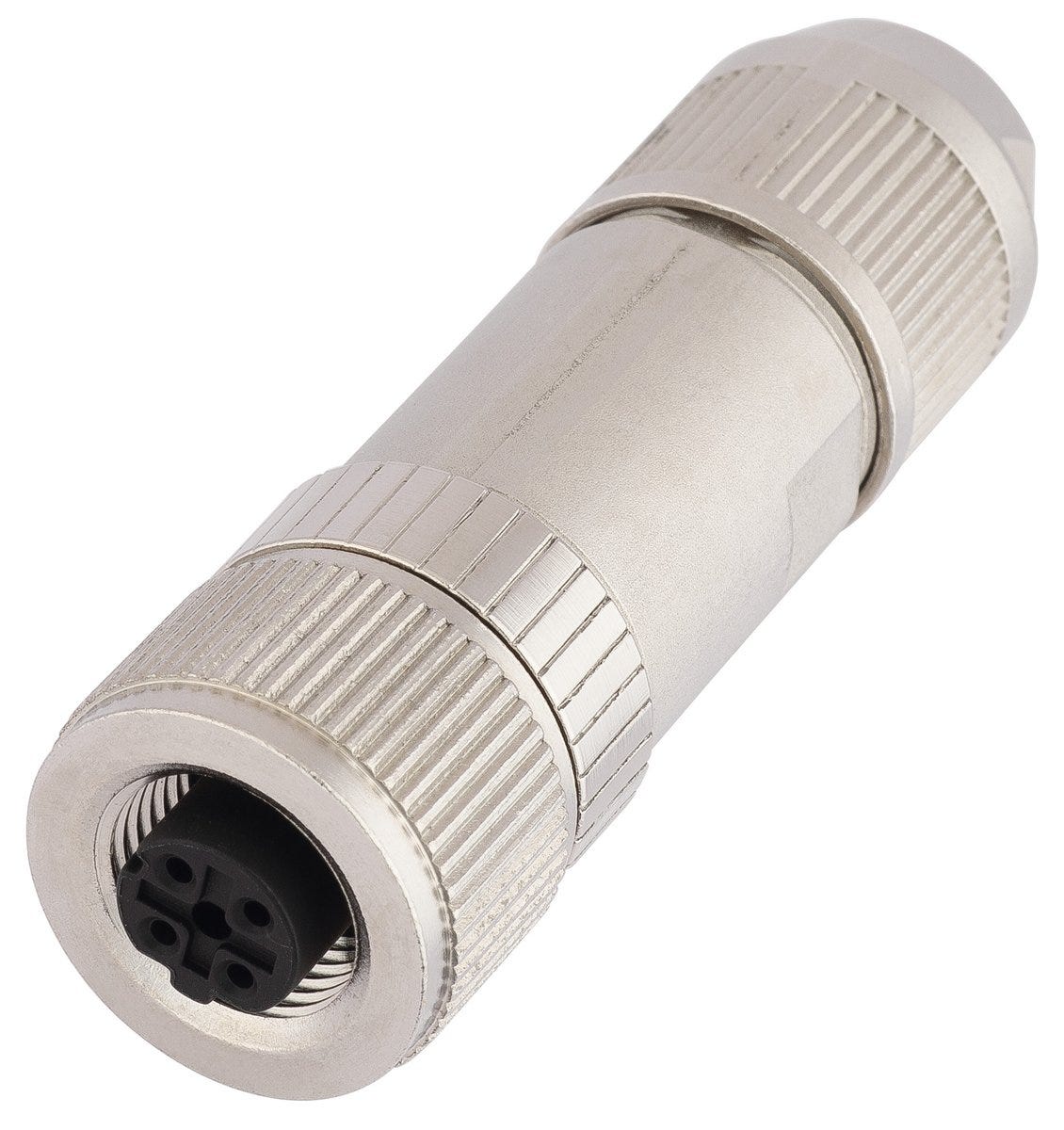

ED-IE-AX-M12D-5-67
Data connector; Cat.5e; M 12 (D-coded); Plug; Straight (180 °)
ED-IE-AX-M12D-5-67
SGD 59.01
/
ED-IE-AX-M12D-5-67
SGD 59.01
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
icon sturgeon signal
Certificate
CE marked
cUL listed US, UL listed US
Benefits
Stability thanks to die-cast zinc metal housing
Easy cable connection thanks to insulation displacement technology
Low potential for errors during assembly by core manager with colour coding according to the PROFINET standard or EIA/TIA standard (T568A or T568B)
Connectors with metal housings have an electrically conductive coating. They offer optimum protection against electromagnetic interference (EMC) and dissipate interference signals with low impedance
When connected, protection class IP 67 can be achieved
UL certification in accordance with the technical data (article dependent) allows the product to be used on the North American market.
Applications
Can be used universally on machine interfaces for many applications in data and signal transmission
For Ethernet applications 100BASE-TX (up to 100 Mbit/s) according to IEEE 802.3
Shielded connectors with metal housings are particularly suitable for environments where electromagnetic compatibility (EMC) is required
Good oil and chemical resistance.
Technical Attributes
General Information
| Brand | EPIC® |
| Product type | Data connector |
| Delivery Unit | 1.000 |
| Weight | 0.026 kg |
Electrical Characteristics
| Rated current | 1 A according to (manufacturer specifications) |
| Over voltage category | III |
| Rated voltage | 60 V AC rms / DC according to IEC |
Product Design
| Assembly type | Field configurable |
| Total length | 52 |
| Max. connectable conductor cross section solid-conductor (AWG) | 22 AWG |
| Design connector housing | Straight |
| Connector format | M 12 |
| Thread type | Metric |
| Thread size | M 12 |
| Housing colour | Metal |
| Min. connectable conductor cross-section fine-wire (AWG) | 26 AWG |
| Number of contacts | 4 |
| Core manager colour coding | EIA/TIA 586A and EIA/TIA 586B |
| Connector diameter | 16.8 |
| Housing coating | Nickel-plated |
| Type of connection | Plug to socket |
| Shielded |
|
| Coding type | D-coded |
| For min. cable outer diameter | 6.7 |
| Housing coating, short form | Ni |
| Min. connectable conductor cross section solid conductor (AWG) | 26 AWG |
| Material contact surface | Gold-plated |
| Seal type | Sealing cone |
| Connector housing angle | 180 |
| Coded |
|
| Contact coating material, short form | Au |
| For max. cable outer diameter | 9.7 |
| Connector type | Plug |
| Conductor connection type | Insulation displacement contact |
| With thread |
|
| Reusable |
|
| Max. connectable conductor cross-section fine-wire (AWG) | 22 AWG |
Product Characteristics
| IP protection rating | IP 67 |
| UV-resistant |
|
| Operating temperature min. | -25 |
| Operating temperature max. | 85 |
| Min. number of insertion cycles | 100 |
| Ethernet cable category | Cat.5e |
| Pollution degree | 2 |
| Vibration protection |
|
| Contact application areact | Ethernet |
Certifications and Standards
| cUR recognized |
|
| CSA certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
