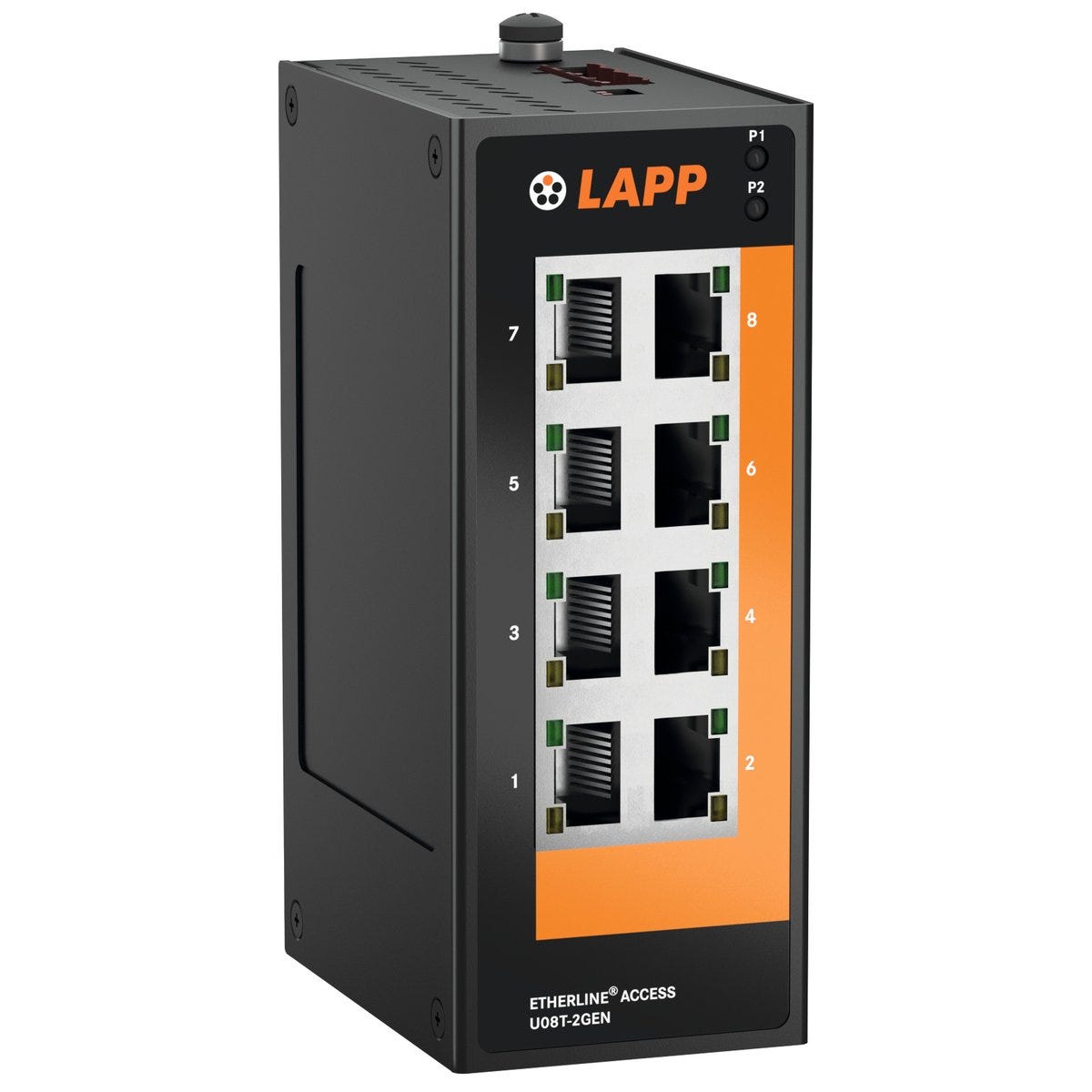

ETHERLINE® ACCESS U08T-2GEN
Unmanaged switch; Ethernet; Interfaces: 8xRJ 45 (10 Mbit/s; 100 Mbit/s)
ETHERLINE® ACCESS U08T-2GEN
SGD 212.01
/
ETHERLINE® ACCESS U08T-2GEN
SGD 212.01
/
In stock (67)
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
Certificate
CE marked
UL listed
Benefits
Low-noise and maintenance-free as it is operated without fans
For the “U” variants, redundant power supply (two connections to the device) ensures uninterrupted data communication even if the primary connection fails
“UF08T“ and “UF16T“ variants block the LLDP and PTCP functions in compliance with PROFINET (“Conformance Class A“) and thus prevent endlessly circulating data packages.
Applications
The “UF08T” and “UF16T” variants are also suitable for use in PROFINET networks (“Conformance Class A”).
Technical Attributes
General Information
| Product type | Unmanaged switch |
| Brand | ETHERLINE® |
| valid fieldbus or Ethernet system | Ethernet |
| Delivery Unit | 1.000 |
| Weight | 0.333 kg |
Electrical Characteristics
| Current consumption (max.) | 0.4 |
| Nominal operating voltage | 24 V AC rms / DC |
| Operating voltage range | 18 V - 30 V AC rms (50 Hz), 12 V - 48 V DC |
Product Design
| Interfaces (copper) | 10 Mbit/s; 100 Mbit/s: 8 x RJ 45 |
| Interfaces | Copper |
| Total length | 68 |
| Number of ports | 8 |
| Direct mounting possible |
|
| Overall width | 45.6 |
| Housing colour | black |
| Housing base material | Aluminium |
| Housing base material, short form | Al |
| Switch variant | Unmanaged |
| Total height | 114.5 |
| Status indication |
|
Product Characteristics
| Flame-retardant |
|
| IP protection rating | IP 30 |
| Switching protocols | Broadcast storm protection |
| Package buffer size | 1 |
| Suitable for EX-applications |
|
| Data transmission rate | 10, 100 |
| Industrial protocols | Ethernet |
| Operating temperature min. | -10 |
| MAC table size | 2 |
| Operating temperature max. | 60 |
Certifications and Standards
| TÜV certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
