EPIC® H-D SCEG AG 0.5-1.5 (100)

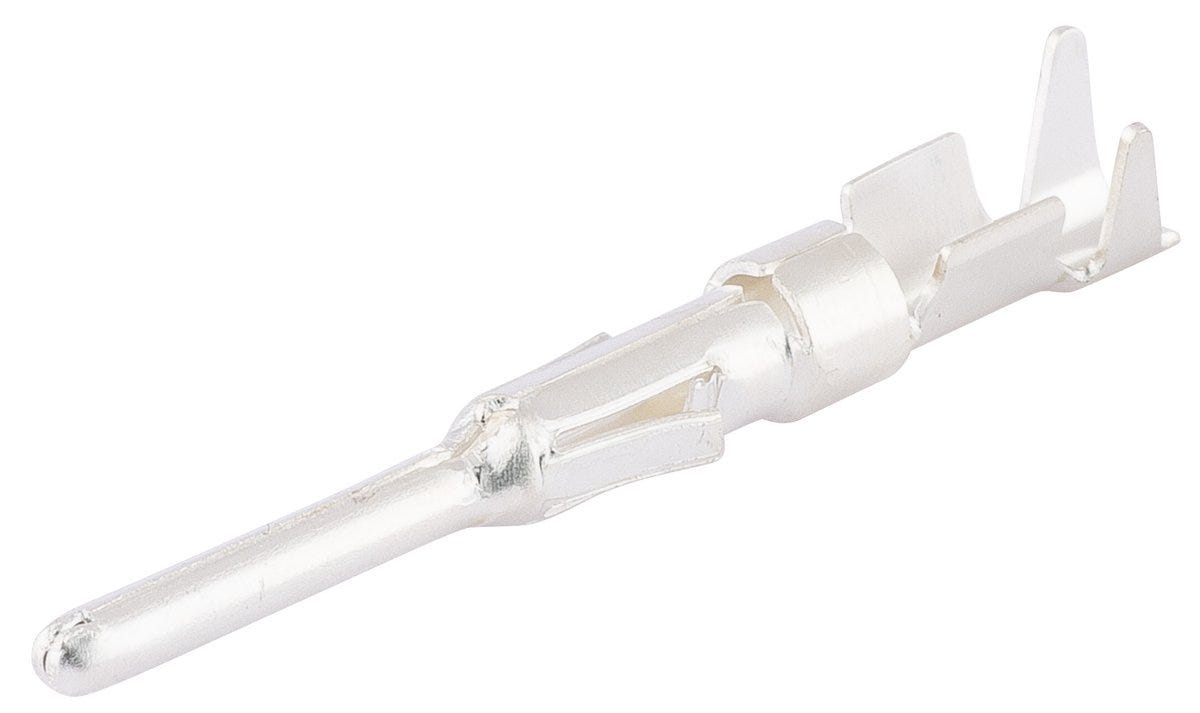

Stamped contact; Pin; Crimp termination; For cross-section (min./max.): 0.5mm² - 1.5mm²; Brass Silver-plated
