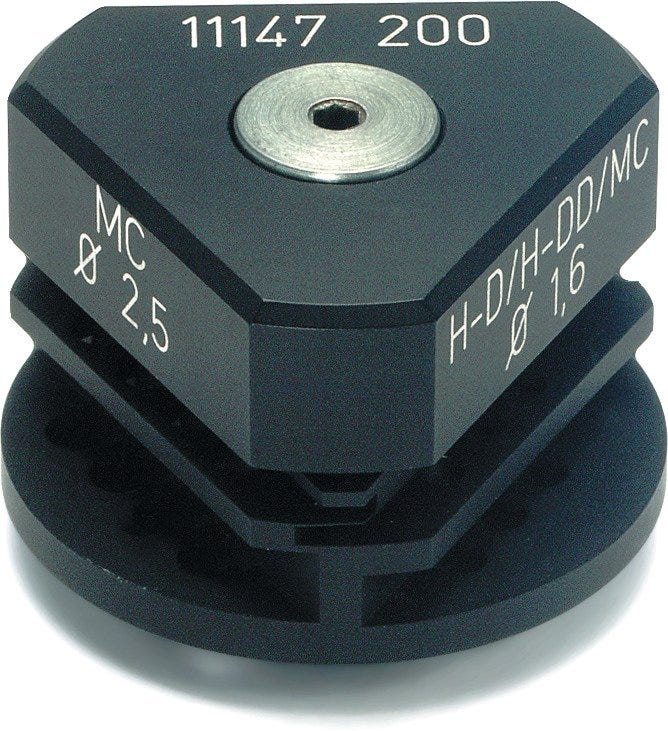

EPIC® LOCATOR FOR D=1.6/2.5MM MA. CO.
Locator; for crimping tool: EPIC® TOOL CRIMP HAND, EPIC® TOOL CRIMP MACHINE
EPIC® LOCATOR FOR D=1.6/2.5MM MA. CO.
SGD 350.22
/
EPIC® LOCATOR FOR D=1.6/2.5MM MA. CO.
SGD 350.22
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Benefits
For precise positioning of the contacts to be crimped in the crimping tool
Maximizes the quality and reliability of a crimp connection and thus reduces time-consuming rework
For turned and punched contacts (depending on article)
Simple assembly on the crimping tool.
Applications
For use with EPIC® crimping tools.
Technical Attributes
General Information
| Suitable crimping insert | EPIC® TOOL DIE H-D 1.6 H-BE 2.5 MC 2.5 |
| Packaging type | Box |
| Brand | EPIC® |
| Product type | Locator |
| For crimping tool | EPIC® TOOL CRIMP HAND, EPIC® TOOL CRIMP MACHINE |
| Delivery Unit | 1.000 |
| Weight | 0.058 kg |
Electrical Characteristics
Product Design
Product Characteristics
Certifications and Standards
| TÜV certified |
|
| VDE certified |
|
| CE marked |
|
Documentation
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from EPIC® TOOL LOC
| Article number | Product type | For crimping tool | Delivery Unit |
|---|---|---|---|
| 11147200 | Locator | EPIC® TOOL CRIMP HAND, EPIC® TOOL CRIMP MACHINE | 1.000 |
| 11147201 | Locator | EPIC® TOOL CRIMP HAND, EPIC® TOOL CRIMP MACHINE | 1.000 |

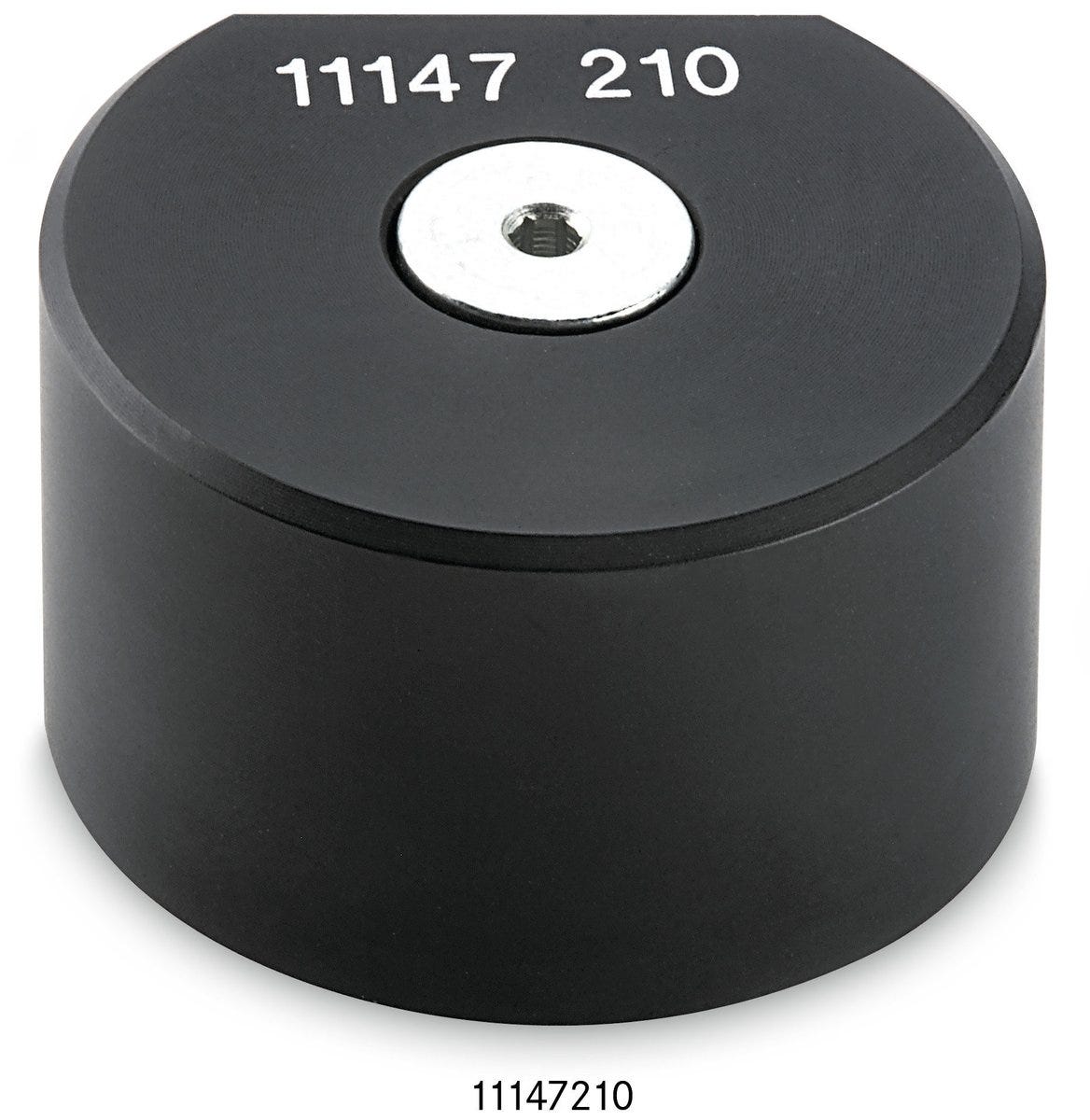

| 11147210 | Locator | EPIC® TOOL CRIMP HAND, EPIC® TOOL CRIMP MACHINE | 1.000 |
| 11147300 | Locator | EPIC® TOOL CRIMP HAND, EPIC® TOOL CRIMP MACHINE | 1.000 |
| 11148300 | Locator | EPIC® CIRCON CRIMPTOOL, EPIC® CIRCON CRIMPTOOL DIGITAL | 1.000 |
| 11148302 | Locator | EPIC® TOOL CRIMP DIGITAL SMALL | 1.000 |
| 11148303 | Locator | 1.000 | |
| 44423137 | Locator | EPIC® TOOL CRIMP DIGITAL SMALL | 1.000 |
