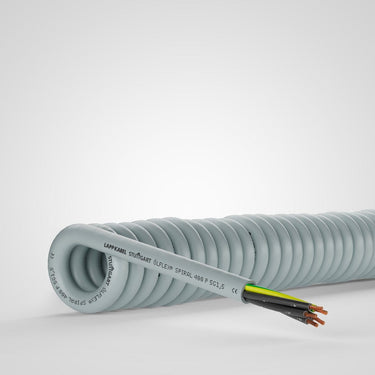

ÖLFLEX® SPIRAL 400 P 3G1,5/500

Spiral cable; 3G1.5; 500mm - 1500mm; U0/U: 300/500 V; PUR; Core identification: Numbers
Primary ImagePrimary Image
Secondary ImageSecondary Image
Primary Image
Secondary Image
LAPPSKU: 70002687Article No.#: 70002687

ÖLFLEX® SPIRAL 400 P 3G1,5/500

Spiral cable; 3G1.5; 500mm - 1500mm; U0/U: 300/500 V; PUR; Core identification: Numbers
Primary Image
ÖLFLEX® SPIRAL 400 P 3G1,5/500
SGD 43.55
Payment & Security
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Union Pay
Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
oil resistant oil resistant
chemical resistance chemical resistance
uv-resistant. uv-resistant.
Certificate
CE marked CE marked
Benefits
High restoring forces and extension lengths up to 3 times the unextended spiral length, Increased durability under harsh conditions thanks to robust PUR outer sheath, Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Applications
As control and power cables in machines, Mechanical engineering, Apparatus construction

Technical Attributes

General Information
Product type Spiral cable
Brand ÖLFLEX®
Copper index 210.700  kg/km
Delivery Unit 1.000
Copper index (lb) 464.590  lb
Weight 0.367 kg
Electrical Characteristics
Nominal voltage U0/U: 300/500 V AC rms according to IEC
Max. conductor resistance at 20°C 13.3  Ω/km
Test voltage 4  kV
Product Design
Core identification Numbers
Shape of cable Round
Spiral outer diameter 24
Outer sheath colour grey
Conductor design IEC 60228 class 5: fine-wire
Stranding type Layered stranding
Nominal outer diameter 6.9  mm
Conductor material Bare copper
Length of the straight ends 200, 600
Spiral cable length, retracted 500
Conductor colour code EN 50334, VDE 0293-1
Number of cores 3
Spiral cable length, extended 1500
Nominal conductor cross-section (metric) 1.5  mm²
Cable dimension 3G1.5
Core insulation basic material Polyvinylchloride
Basic material of outer sheath Polyurethane
Including protective earth

Core insulation basic material, short form PVC
Basic material of outer sheath, short form PUR
Product Characteristics
Flame-retardant

Application area Flexible
max. conductor temperature, occasionally moved 5 °C to 50 °C max. conductor temperature:
PWIS-free according to VDMA 24364-B2-L
Oil-resistant

weather resistant

Chemical resistant

UV-resistant

hydrolysis resistant

Oil resistance according to EN 50363-10-2
PWIS-free

Halogenfree

Certifications and Standards
Flame retardance tested according to UN/ECE-R118

CE marked

VDE certified

EAC certification number ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation
Downloads
CE declaration of conformity - en-UK (PDF)
Datasheet - de-DE (PDF)
Datasheet - en-UK (PDF)
Package insert - de-DE (PDF)
Further Links
EPLAN Data in EPLAN Data Portal
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from ÖLFLEX® SPIRAL 400 P
Article number Cable dimension Imp spiral cable length retract Spiral cable length, retracted Imp spiral cable length extended Spiral cable length, extended Imp outer dia cable sheath nom Nominal outer diameter Imp outer diam of spiral Spiral outer diameter Copper index calc export
70002598 2X0.5 500 1500 5.5 20
70002599 2X0.5 1000 3000 5.5 20
70002600 2X0.5 1500 4500 5.5 20
70002601 2X0.5 2000 6000 5.5 20
70002602 3G0.5 500 1500 5.8 21
70002603 3G0.5 1000 3000 5.8 21
70002604 3G0.5 1500 4500 5.8 21
70002605 3G0.5 2000 6000 5.8 21
70002606 4G0.5 500 1500 6.2 21
70002607 4G0.5 1000 3000 6.2 21
70002608 4G0.5 1500 4500 6.2 21
70002609 4G0.5 2000 6000 6.2 21
70002610 5G0.5 500 1500 6.7 25
70002611 5G0.5 1000 3000 6.7 25
70002612 5G0.5 1500 4500 6.7 25
70002613 5G0.5 2000 6000 6.7 25
70002614 7G0.5 500 1500 7.6 29
70002615 7G0.5 1000 3000 7.6 29
70002616 7G0.5 1500 4500 7.6 29
70002617 7G0.5 2000 6000 7.6 29
70002618 12G0.5 500 1500 9.5 32
70002619 12G0.5 1000 3000 9.5 32
70002620 18G0.5 500 1500 11 42
70002621 18G0.5 1000 3000 11 42
70002622 2X0.75 500 1500 5.6 19.5
70002623 2X0.75 1000 3000 5.6 19.5
70002624 2X0.75 1500 4500 5.6 19.5
70002625 2X0.75 2000 6000 5.6 19.5
70002628 3G0.75 500 1500 5.9 20
70002629 3G0.75 1000 3000 5.9 20
70002630 3G0.75 1500 4500 5.9 20
70002631 3G0.75 2000 6000 5.9 20
70002634 4G0.75 500 1500 6.4 21
70002635 4G0.75 1000 3000 6.4 21
70002636 4G0.75 1500 4500 6.4 21
70002637 4G0.75 2000 6000 6.4 21
70002640 5G0.75 500 1500 6.9 24
70002641 5G0.75 1000 3000 6.9 24
70002642 5G0.75 1500 4500 6.9 24
70002643 5G0.75 2000 6000 6.9 24
70002646 2X1 500 1500 5.9 20
70002647 2X1 1000 3000 5.9 20
70002648 2X1 1500 4500 5.9 20
70002649 2X1 2000 6000 5.9 20
70002651 3G1 500 1500 6.2 21
70002652 3G1 1000 3000 6.2 21
70002653 3G1 1500 4500 6.2 21
70002654 3G1 2000 6000 6.2 21
70002656 4G1 500 1500 6.7 24
70002657 4G1 1000 3000 6.7 24
70002658 4G1 1500 4500 6.7 24
70002659 4G1 2000 6000 6.7 24
70002661 5G1 500 1500 7.3 25
70002662 5G1 1000 3000 7.3 25
70002663 5G1 1500 4500 7.3 25
70002664 5G1 2000 6000 7.3 25
70002666 7G1 500 1250 8.2 30
70002667 7G1 1000 2500 8.2 30
70002668 7G1 1500 3750 8.2 30
70002669 7G1 2000 5000 8.2 30
70002670 12G1 500 1500 10.9 37
70002671 12G1 1000 3000 10.9 37
70002672 18G1 500 1500 12.7 45
70002673 18G1 1000 3000 12.7 45
70002681 2X1.5 500 1500 6.5 23
70002682 2X1.5 1000 3000 6.5 23
70002683 2X1.5 1500 4500 6.5 23
70002684 2X1.5 2000 6000 6.5 23
70002687 3G1.5 500 1500 6.9 24
70002688 3G1.5 1000 3000 6.9 24
70002689 3G1.5 1500 4500 6.9 24
70002690 3G1.5 2000 6000 6.9 24
70002699 5G1.5 500 1250 8.3 30
70002700 5G1.5 1000 2500 8.3 30
70002701 5G1.5 1500 3750 8.3 30
70002702 5G1.5 2000 5000 8.3 30
70002705 7G1.5 500 1250 9.1 31
70002706 7G1.5 1000 2500 9.1 31
70002707 7G1.5 1500 3750 9.1 31
70002708 7G1.5 2000 5000 9.1 31
70002709 12G1.5 500 1500 12.2 46
70002710 12G1.5 1000 3000 12.2 46
70002711 18G1.5 500 1500 14.2 52
70002712 18G1.5 1000 3000 14.2 52
70002716 3G2.5 500 1250 8.3 28.5
70002717 3G2.5 1000 2500 8.3 28.5
70002718 3G2.5 1500 3750 8.3 28.5
70002719 3G2.5 2000 5000 8.3 28.5
70002721 5G2.5 500 1250 10 37
70002722 5G2.5 1000 2500 10 37
70002723 5G2.5 1500 3750 10 37
70002724 5G2.5 2000 5000 10 37
70002726 7G0.75 500 1500 7.5 27
70002727 7G0.75 1000 3000 7.5 27
70002728 7G0.75 1500 4500 7.5 27
70002729 7G0.75 2000 6000 7.5 27
70002731 12G0.75 500 1500 9.9 35
70002732 12G0.75 1000 3000 9.9 35
70002734 18G0.75 500 1500 11.9 40
70002735 18G0.75 1000 3000 11.9 40
