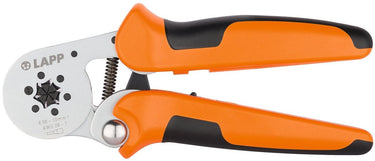

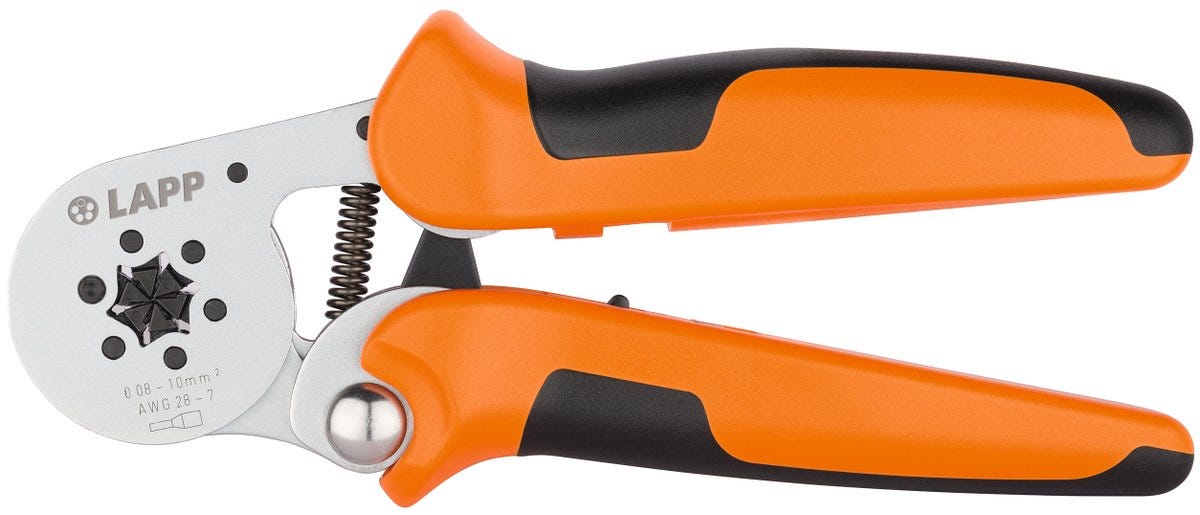

CRIMPING PLIERS PEW 8.186
Crimping tool; For cross-section (min./max.): 0.08mm² - 16mm²; Crimping profile: Hexagon
CRIMPING PLIERS PEW 8.186
SGD 511.96
/
CRIMPING PLIERS PEW 8.186
SGD 511.96
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
corrosion resistant
Benefits
Uniform feed on the crimp die guarantees exact crimping profiles, Automatic self-adjustment to requested wire size, DIN compliant crimping quality due to integral lock (self-releasing mechanism), Ergonomic handles and very low hand force required
Applications
For pressing insulated and non-insulated conductor end sleeves, Could be used up to a sleeve length of 20 mm (for sleeves longer than 12 mm at least 2 crimps are necessary)
Technical Attributes
General Information
| Product type | Crimping tool |
| Delivery Unit | 1.000 |
| Weight | 0.38 kg |
Electrical Characteristics
Product Design
| Colour | orange |
| Crimping profile | Hexagon |
| Total length | 180 |
| For pressing | Insulated end sleeves, Non-insulated end sleeves, TWIN conductor end sleeve |
| For cross-section (max.) | 16 |
| Material | Steel |
| For cross-section (min.) | 0.08 |
| Surface protection | Chrome-plated |
Product Characteristics
| Corrosion-resistant |
|
Certifications and Standards
| TÜV certified |
|
| CE marked |
|
| VDE certified |
|
Documentation
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
Product Family List
All articles from PEW 8.286 crimping pliers
| Article number | For cross-section (min.) | For cross-section (max.) | Crimping profile |
|---|---|---|---|
| 61813737 | 0.08 | 16 | Hexagon |
