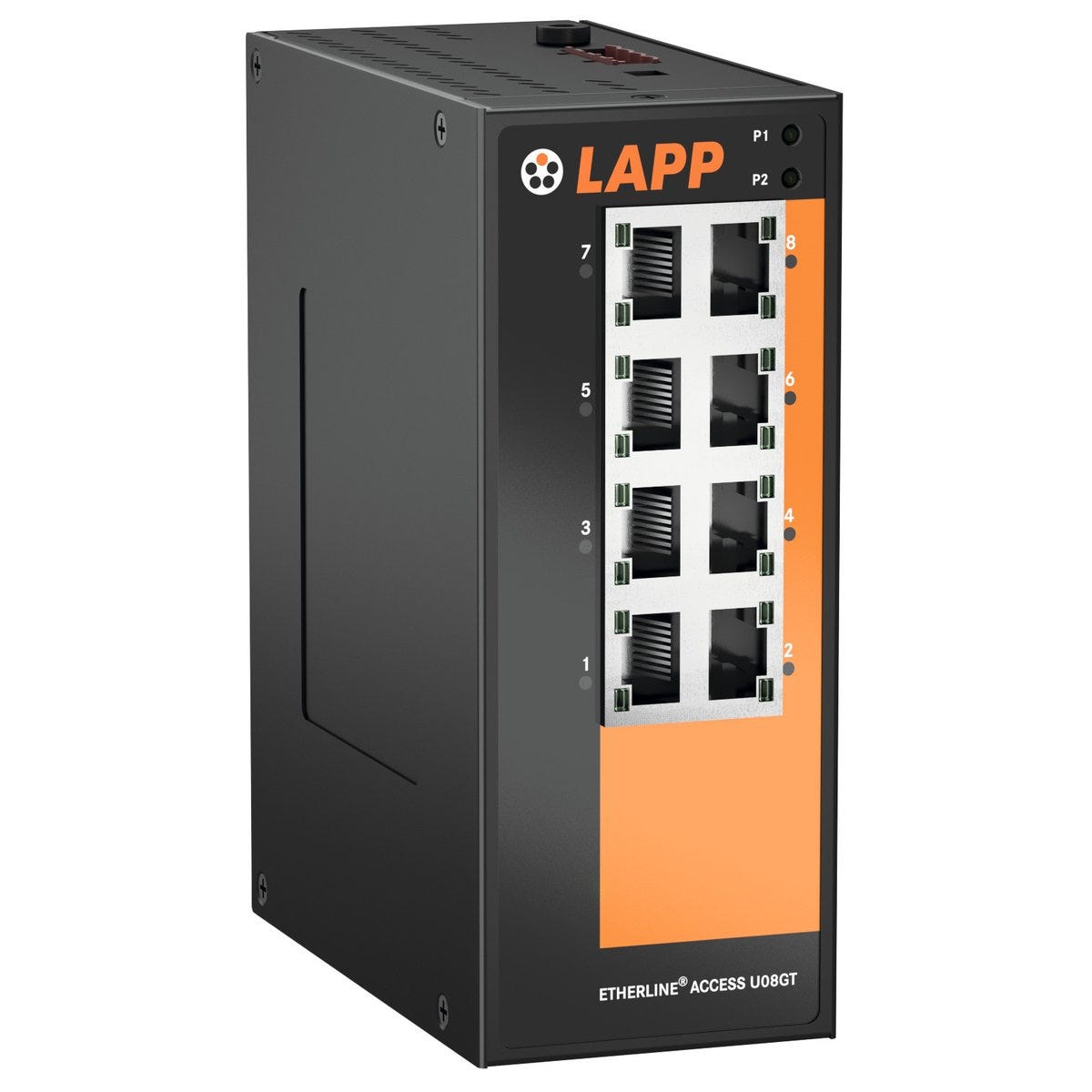

ETHERLINE® ACCESS U08GT
Unmanaged switch; Interfaces:
ETHERLINE® ACCESS U08GT
SGD 580.51
/
ETHERLINE® ACCESS U08GT
SGD 580.51
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
Certificate
CE marked
UL listed
Benefits
A redundant power supply (two connections to the device) ensures uninterrupted data communication even if the primary connection fails
Robust design for direct mounting on 35 mm top-hat rails
Low-noise and maintenance-free as it is operated without fans.
Technical Attributes
General Information
| Product type | Unmanaged switch |
| Brand | ETHERLINE® |
| valid fieldbus or Ethernet system | Ethernet |
| Delivery Unit | 1.000 |
| Weight | 0.88 kg |
Electrical Characteristics
| Current consumption (max.) | 0.85 |
| Nominal operating voltage | 24 V AC rms / DC |
| Operating voltage range | 18 V - 30 V AC rms (50 Hz), 12 V - 48 V DC |
| Power consumption (max.) | 10 |
Product Design
| Interfaces | Copper |
| Total length | 106 |
| Number of ports | 8 |
| Direct mounting possible |
|
| Overall width | 53.6 |
| Housing colour | black |
| Housing base material | Aluminium |
| Housing base material, short form | Al |
| Switch variant | Unmanaged |
| Total height | 134 |
| Status indication |
|
Product Characteristics
| Flame-retardant |
|
| IP protection rating | IP 30 |
| Switching protocols | Broadcast storm protection, Jumbo frames |
| Package buffer size | 4 |
| Suitable for EX-applications |
|
| Data transmission rate | 10, 100, 1000 |
| Operating temperature min. | -10 |
| Switch property | Gigabit |
| MAC table size | 8 |
| Operating temperature max. | 60 |
Certifications and Standards
| TÜV certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from ETHERLINE® ACCESS U Gigabit
| Article number | Number of ports |
|---|---|
| 21700129 | 8 |
